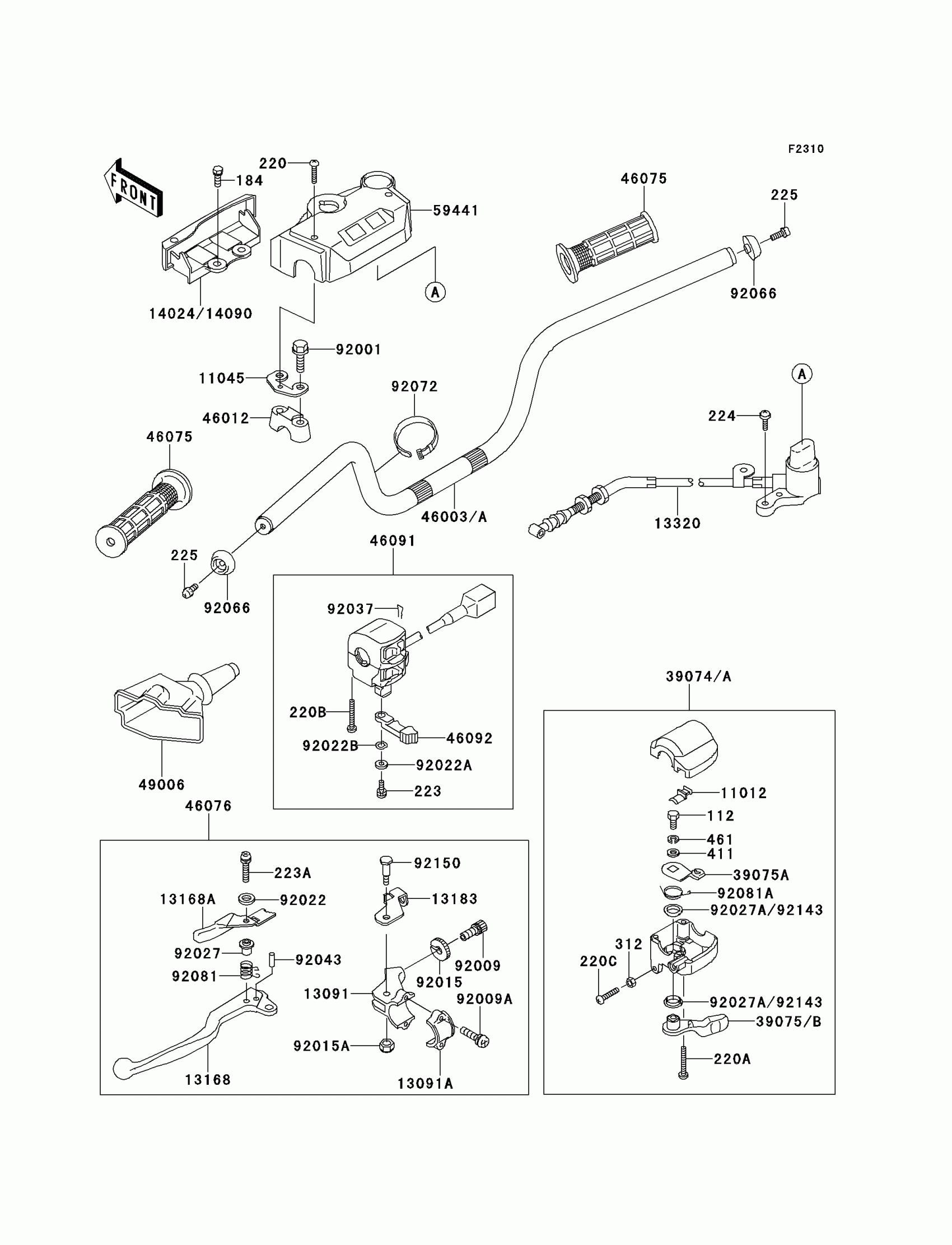

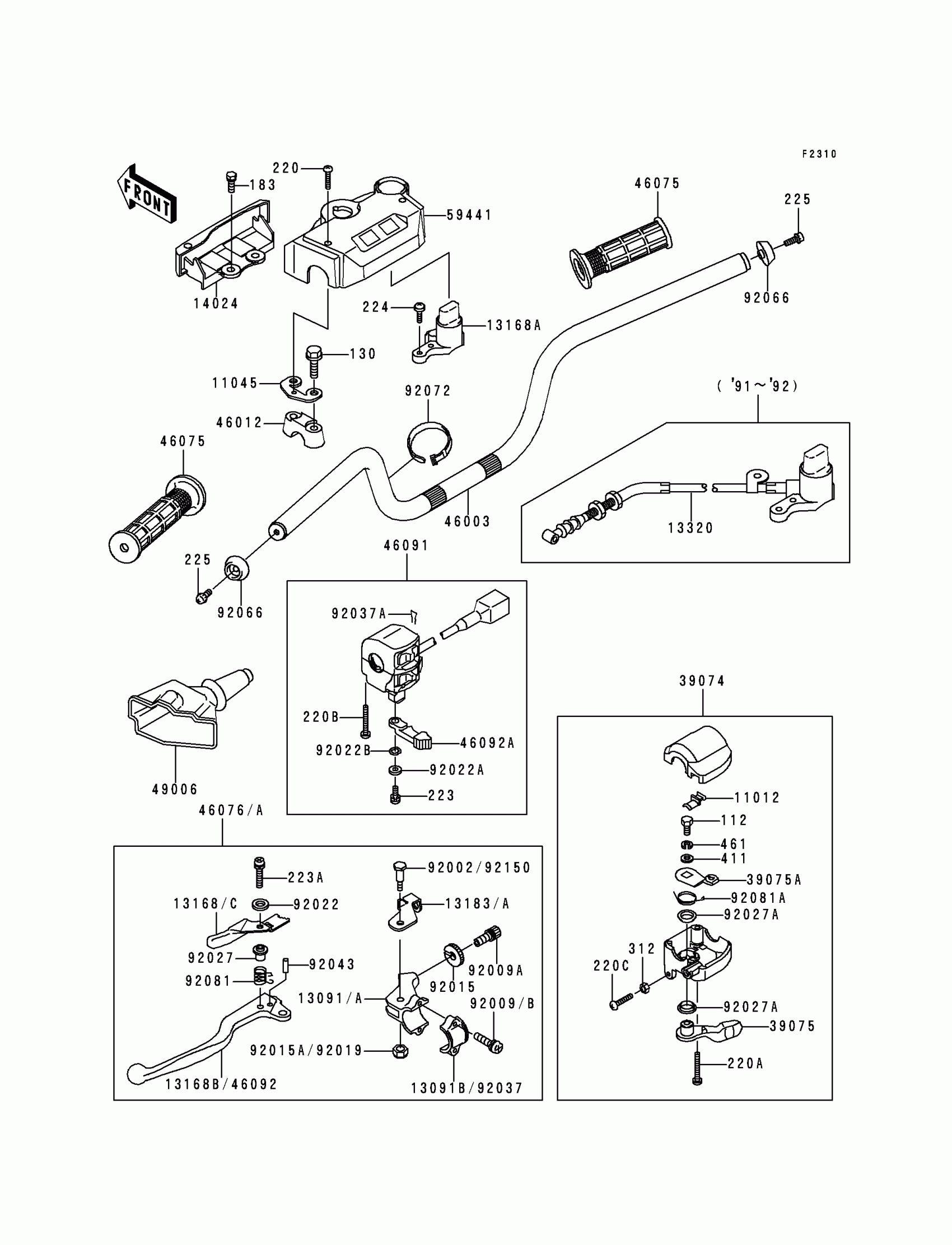

1992 Kawasaki Bayou 300 4X4 Handlebar Diagram
Find the part on the Handlebar diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
11012
CAP
11012-1425
13091A
HOLDER,LEVER
13091-1703
13091B
HOLDER
13091-1704
13183A
PLATE,LOCK
13183-1609
13320
LEVER-ASSY,REVERSE
13320-1005
14024
COVER,HANDLE
14024-1720
39075
LEVER-THROTTLE
39075-1053
59441
COVER-HANDLE
59441-1077
92009A
SCREW,CABLE ADJUST,8MM
92009-1435
92009B
SCREW
92009-1627
92022
WASHER,4MM
92022-1647
92022A
WASHER,5MM
92022-1837
92022B
WASHER,WAVE,5MM
92022-1838
130
BOLT-FLANGED,8X55
130G0855
183
BOLT-UPSET-WS-SMALL
183J0814
220
SCREW-PAN-CROS,4X20
220C0420
220A
SCREW-PAN-CROS,5X30
220C0530
223A
SCREW-PAN-WS-CROS,4X20
223D0420
224
SCREW-PAN-WP-CROS,5X20
224B0520
225
SCREW-PAN-WSP-CROS,6X20
225C0620
312
NUT-HEX,6MM,BLACK
312C0600
92066
PLUG,HANDLE
92066-1191
92150
BOLT
92150-1420
