1992 Kawasaki Bayou 300 4X4 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1992 Kawasaki Bayou 300 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

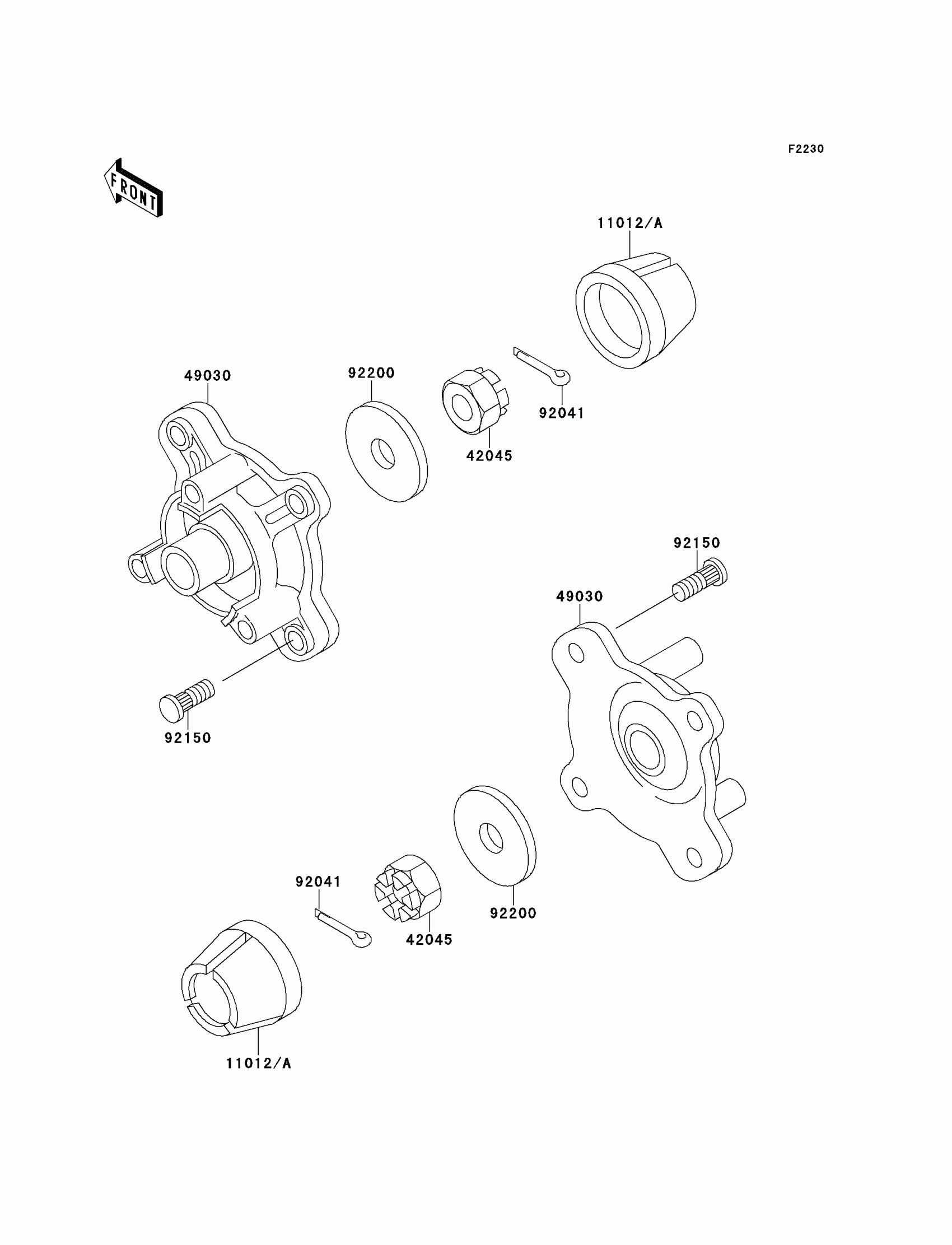

1992 Kawasaki Bayou 300 4X4 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,WHEEL

11012-1519

1
Out of stock

49030

HUB,FR

49030-1102

1

$174.71

In stock

92041

COTTER,4.0X35

92041-1053

1

$3.12

In stock

92150

BOLT

92150-1289

1

$4.23

In stock

92200

WASHER,18.5X52X4.5

92200-1139

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1

$7.31

In stock
