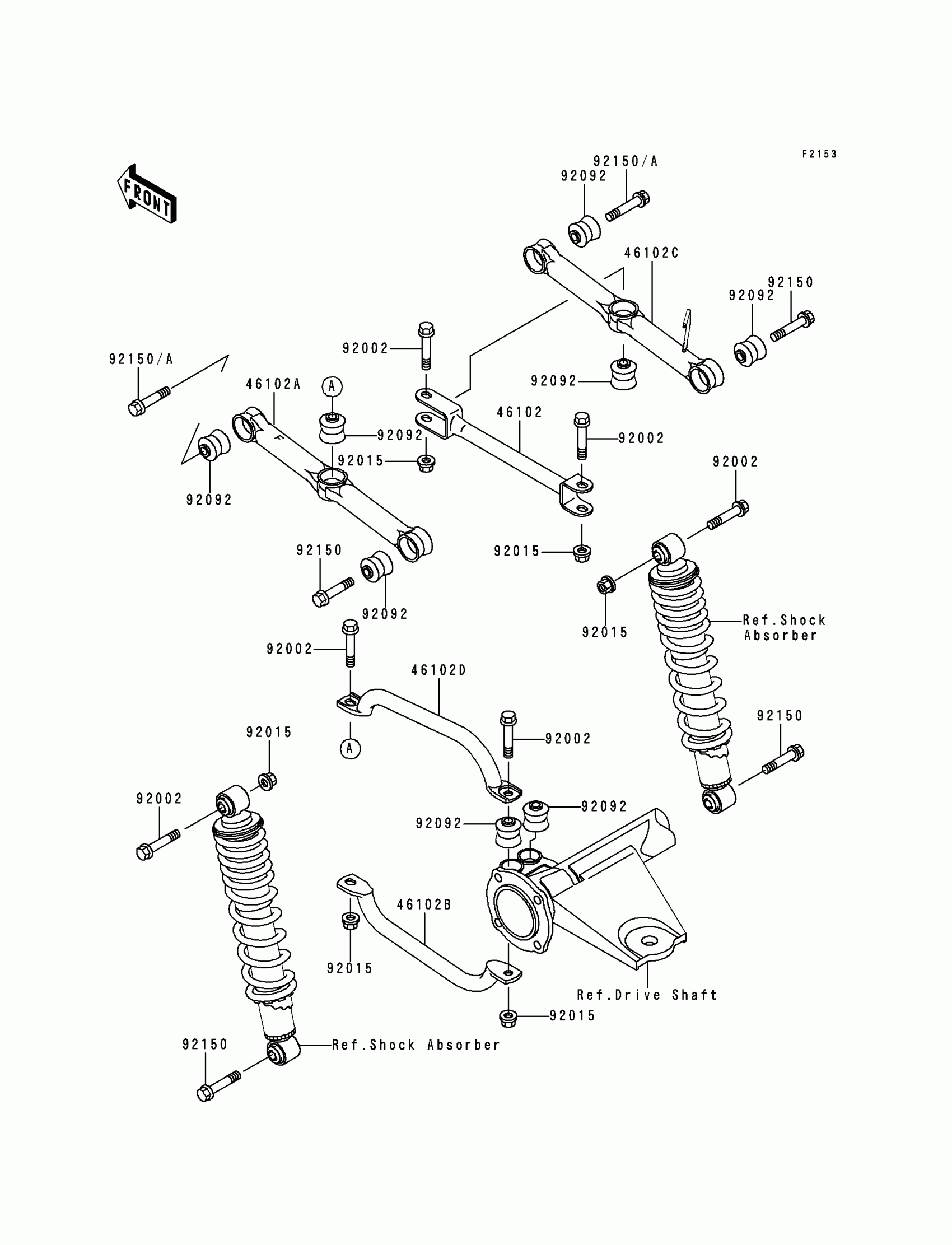

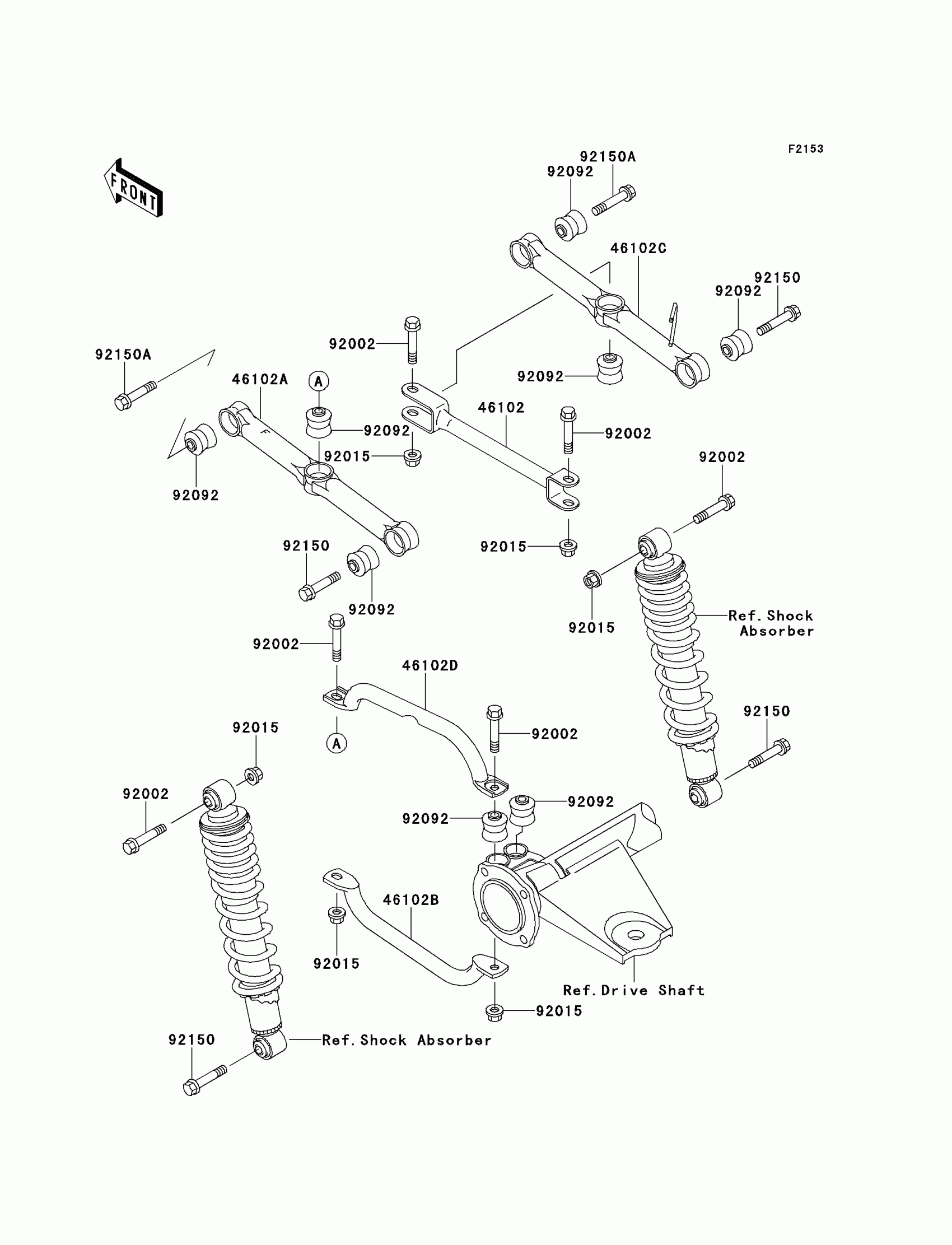

Kawasaki Bayou 300 4X4 Rear Suspension Diagram

#

Description
Price

46102

ROD,SUSPENSION,RIGHT CROSS

46102-1213

$30.12

46102A

ROD,SUSPENSION,RR,LH,OUTSIDE

46102-1241

$39.00

46102B

ROD,SUSPENSION,RR,LH,INSIDE

46102-1242

$30.65

46102C

ROD,SUSPENSION,RR,RH,OUTSIDE

46102-1243

$49.67

46102D

ROD,SUSPENSION,LEFT CROSS

46102-1330

$20.27

92002

BOLT,FLANGED,10X53.5

92002-1529

$8.20

92015

NUT,LOCK,10MM

92015-1597

$4.18

92092

BUSHING-RUBBER

92092-1064

$12.18

92150

BOLT,FLANGED,10X49

92150-1048

$7.69

92150A

BOLT,FLANGED,10X52

92150-1070

$7.19
