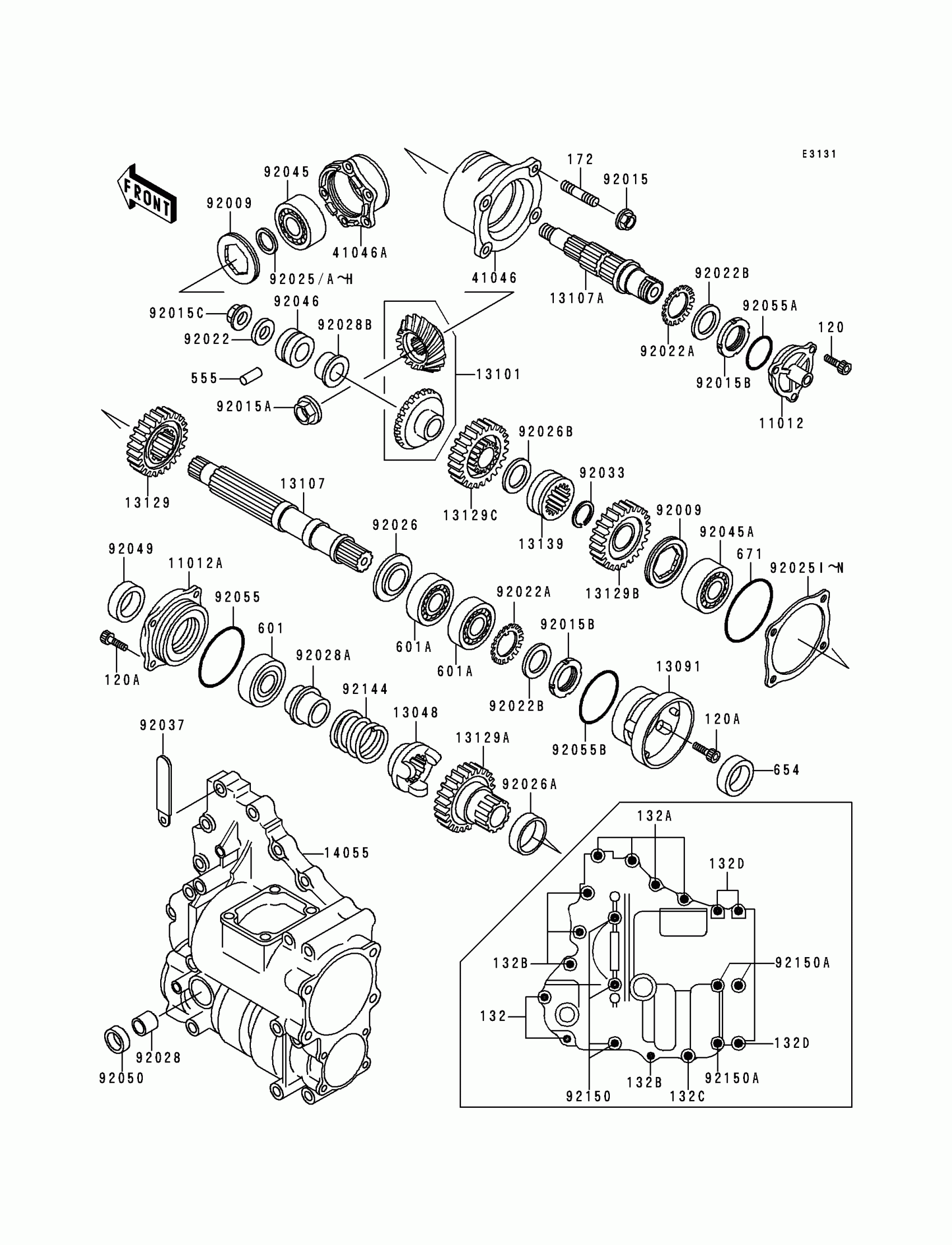

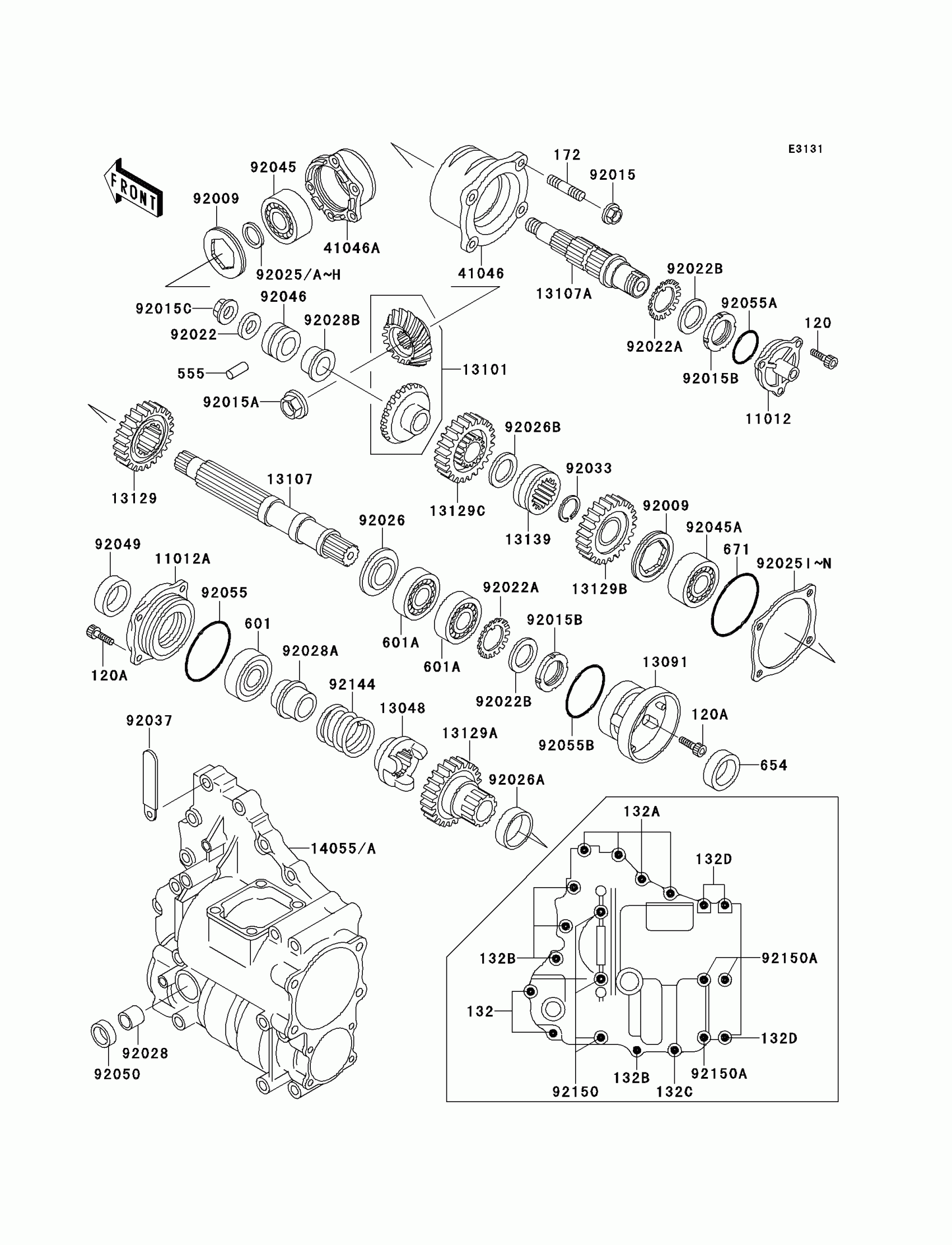

Kawasaki Bayou 300 4X4 Front Bevel Gear Diagram

#

Description
Price

11012

CAP

11012-1641

$29.55

11012A

CAP

11012-1642

$34.82

13048

CAM-DAMPER

13048-1075

$78.12

13091

HOLDER

13091-1542

$45.70

13101

GEAR-ASSY,BEVEL

13101-5078

$848.89

13107

SHAFT

13107-1227

$238.22

13107A

SHAFT

13107-1228

$212.19

13129

GEAR-TRANSMISSION SPUR,37T

13129-1948

$136.48

13129A

GEAR-TRANSMISSION SPUR,33T

13129-1949

$206.48

13129B

GEAR-TRANSMISSION SPUR

13129-1950

$136.48

13129C

GEAR-TRANSMISSION SPUR

13129-1951

$136.48

13139

SHIFTER

13139-1056

$136.48

14055

CASE-GEAR

14055-1086

Unavailable

41046

HOUSING-BEARING

41046-1088

$179.85

41046A

HOUSING-BEARING,GEAR CASE,FR

41046-1098

$128.29

92009

SCREW,55MM

92009-1384

$35.14

92015

NUT,8MM

92015-1402

$3.57

92015A

NUT,16MM

92015-1581

$14.81

92015B

NUT,25MM

92015-1768

$20.47

92015C

NUT,FLANGED,12MM

92015-1911

$8.03

92022

WASHER,12X24X2.3

92022-1890

$4.42

92022A

WASHER,TOOTHED

92022-1990

$5.42

92022B

WASHER,25.3X32X0.5

92022-225

$4.18

92025

SHIM,20.3X28X1.3

92025-1533

Unavailable

92025A

SHIM,20.3X28X0.7

92025-1534

Unavailable

92025B

SHIM,20.3X28X0.8

92025-1535

Unavailable

92025C

SHIM,20.3X28X0.9

92025-1536

Unavailable

92025D

SHIM,20.3X28X1.0

92025-1537

Unavailable

92025E

SHIM,20.3X28X1.2

92025-1538

Unavailable

92025F

SHIM,20.3X28X0.15

92025-1573

Unavailable

92025G

SHIM,20.3X28X0.20

92025-1574

Unavailable

92025H

SHIM,20.3X28X1.1

92025-1575

Unavailable

92025I

SHIM,T=0.10

92025-1897

Unavailable

92025J

SHIM,T=0.15

92025-1898

Unavailable

92025K

SHIM,T=0.50

92025-1899

Unavailable

92025L

SHIM,T=0.80

92025-1900

Unavailable

92025M

SHIM,T=1.00

92025-1901

Unavailable

92025N

SHIM,T=1.20

92025-1902

Unavailable

92026

SPACER

92026-1334

$18.44

92026A

SPACER,40X44X16

92026-1335

$12.47

120

BOLT-SOCKET,6X14

120P0614

Unavailable

120A

BOLT-SOCKET,6X20

120P0620

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

132C

BOLT-FLANGED-SMALL,6X75

132J0675

Unavailable

132D

BOLT-FLANGED-SMALL

132J0895

Unavailable

172

BOLT-STUD,8X22

172G0822

Unavailable

555

PIN-SPRING

555A0432

$1.07

601

BEARING-BALL,#6007C3

601B6007

$24.07

601A

BEARING-BALL,#6205C3

601B6205

$14.76

654

OIL SEAL,BJN30427-C3

654A304208

$9.94

671

O RING

671B2575

$5.97

92026B

SPACER,24.5X36X2.0

92026-1336

$7.22

92028

BUSHING

92028-1347

$6.48

92028A

BUSHING

92028-1539

$72.86

92028B

BUSHING

92028-1540

$37.86

92033

RING-SNAP,28.6MM

92033-1248

$5.95

92037

CLAMP

92037-1679

$4.18

92045

BEARING-BALL,5304

92045-1144

$98.45

92045A

BEARING-BALL,5205

92045-1221

$65.11

92046

BEARING-NEEDLE,RNA4904RE

92046-1182

$46.82

92049

SEAL-OIL

92049-1047

$12.40

92050

SEAL-OIL

92050-082

$6.55

92055

RING-O,57.6X2.4

92055-1038

$5.81

92055A

RING-O,40.2X2.4

92055-1405

$4.61

92055B

RING-O,47.2X2.4

92055-1406

$4.24

92144

SPRING

92144-1273

$31.08

92150

BOLT,8X85

92150-1104

$8.03

92150A

BOLT,8X110

92150-1105

$8.95
