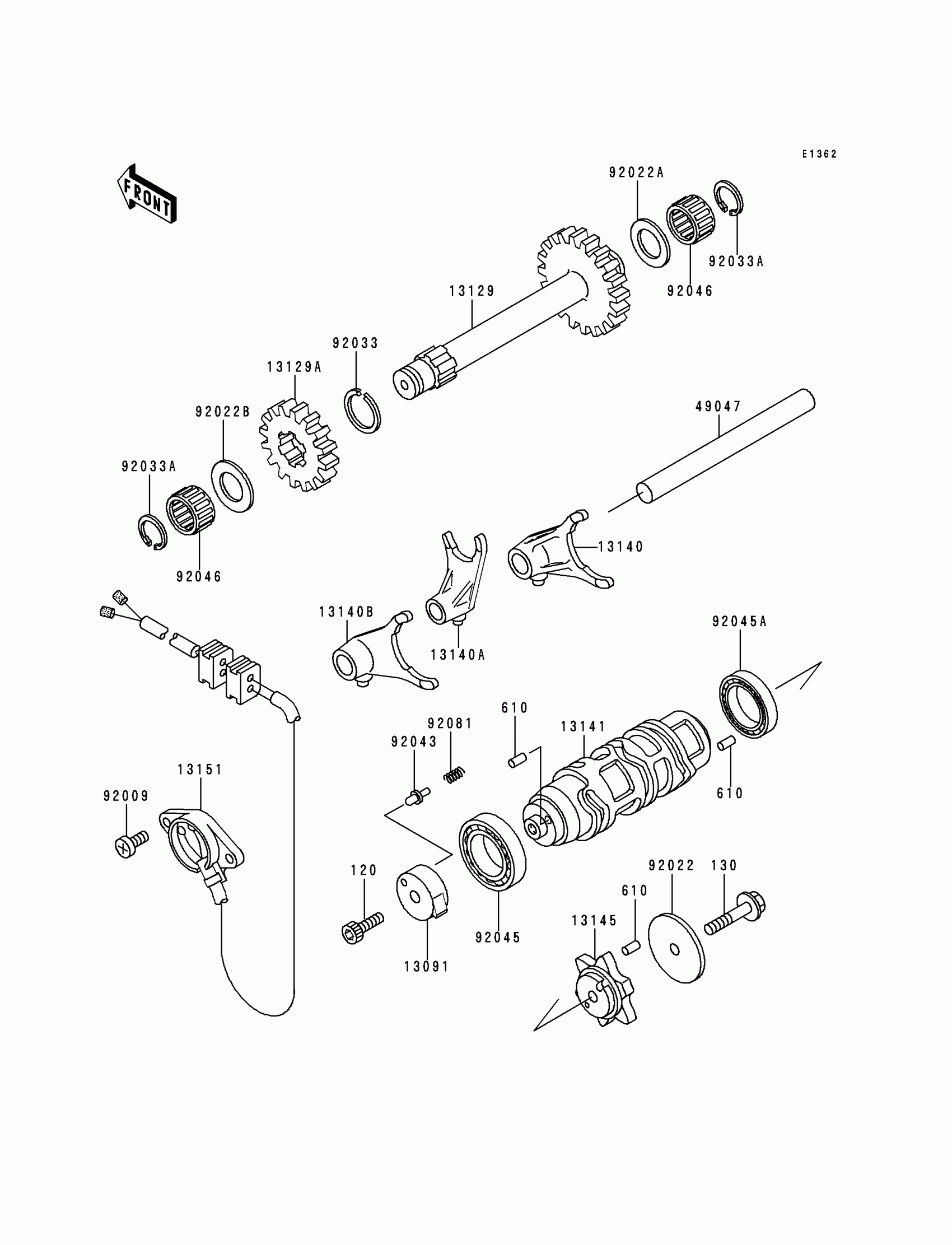

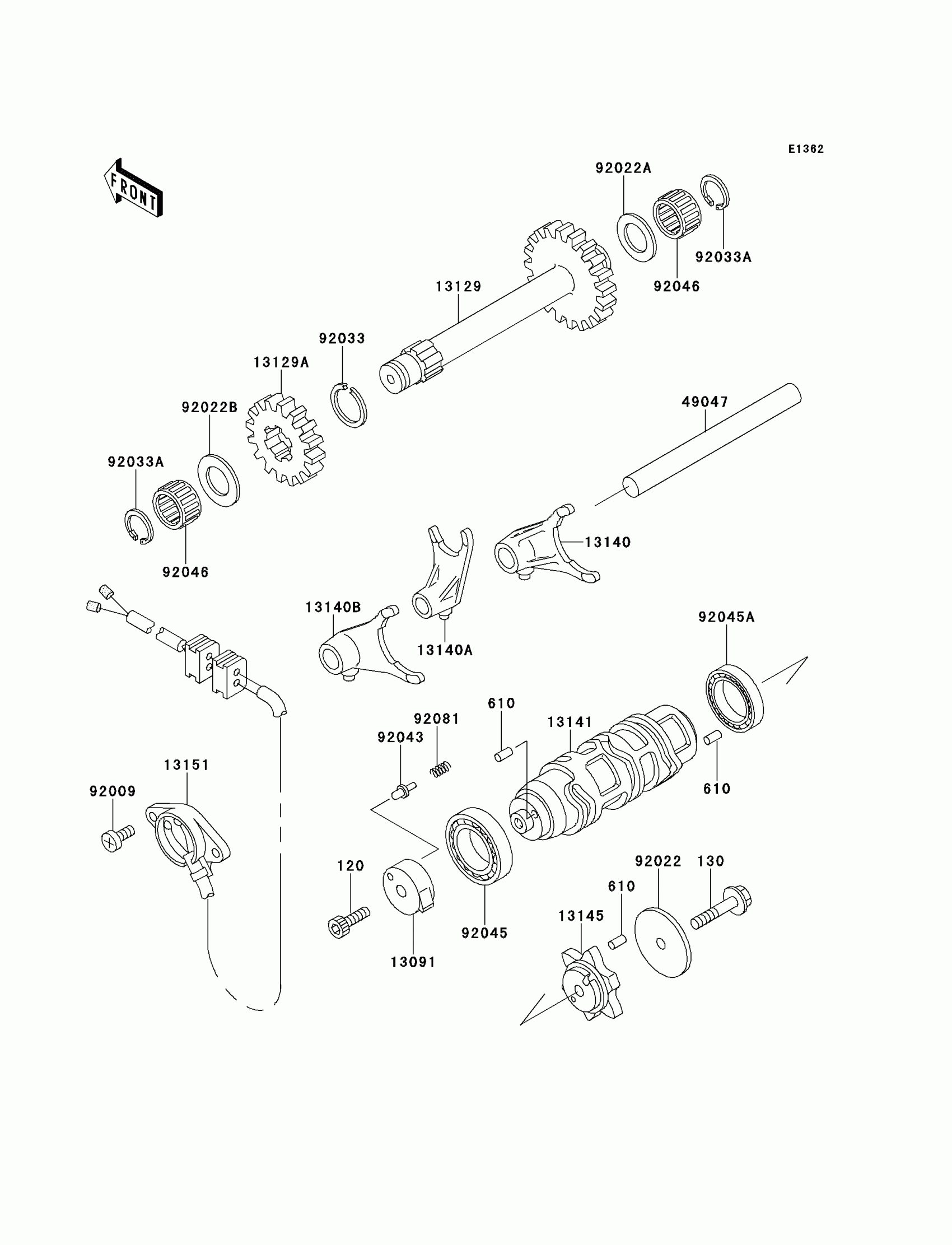

Kawasaki Bayou 300 4X4 Gear Change Drum/Shift Fork(s) Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120Q0620

Unavailable

130

BOLT-FLANGED,6X30

130G0630

Unavailable

610

ROLLER,4X10

610A0410

$3.29

13091

HOLDER,NEUTRAL SWITCH

13091-1443

Unavailable

13129

GEAR-REVERSE

13129-1705

$216.95

13129A

GEAR-REVERSE,20T

13129-1706

$74.19

13140

FORK-SHIFT

13140-1172

$96.52

13140A

FORK-SHIFT

13140-1173

$96.52

13140B

FORK-SHIFT

13140-1174

$96.52

13141

DRUM-CHANGE

13141-1152

$121.23

13145

CAM-CHANGE DRUM

13145-1057

$50.24

13151

SWITCH-COMP

13151-1079

Unavailable

49047

ROD-SHIFT

49047-1077

$29.55

92009

SCREW,5X14

92009-1341

$3.75

92022

WASHER,6.2X38X1.2

92022-1500

$11.03

92022A

WASHER,17.3X28X1

92022-255

$6.55

92022B

WASHER,17.3X30X1.4

92022-270

$7.50

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP

92033-032

$3.78

92043

PIN

92043-1287

$8.54

92045

BEARING-BALL,6805

92045-1122

$39.92

92045A

BEARING-BALL,6905X1

92045-1150

$33.92

92046

BEARING-NEEDLE

92046-1184

$17.18

92081

SPRING

92081-1763

$3.88
