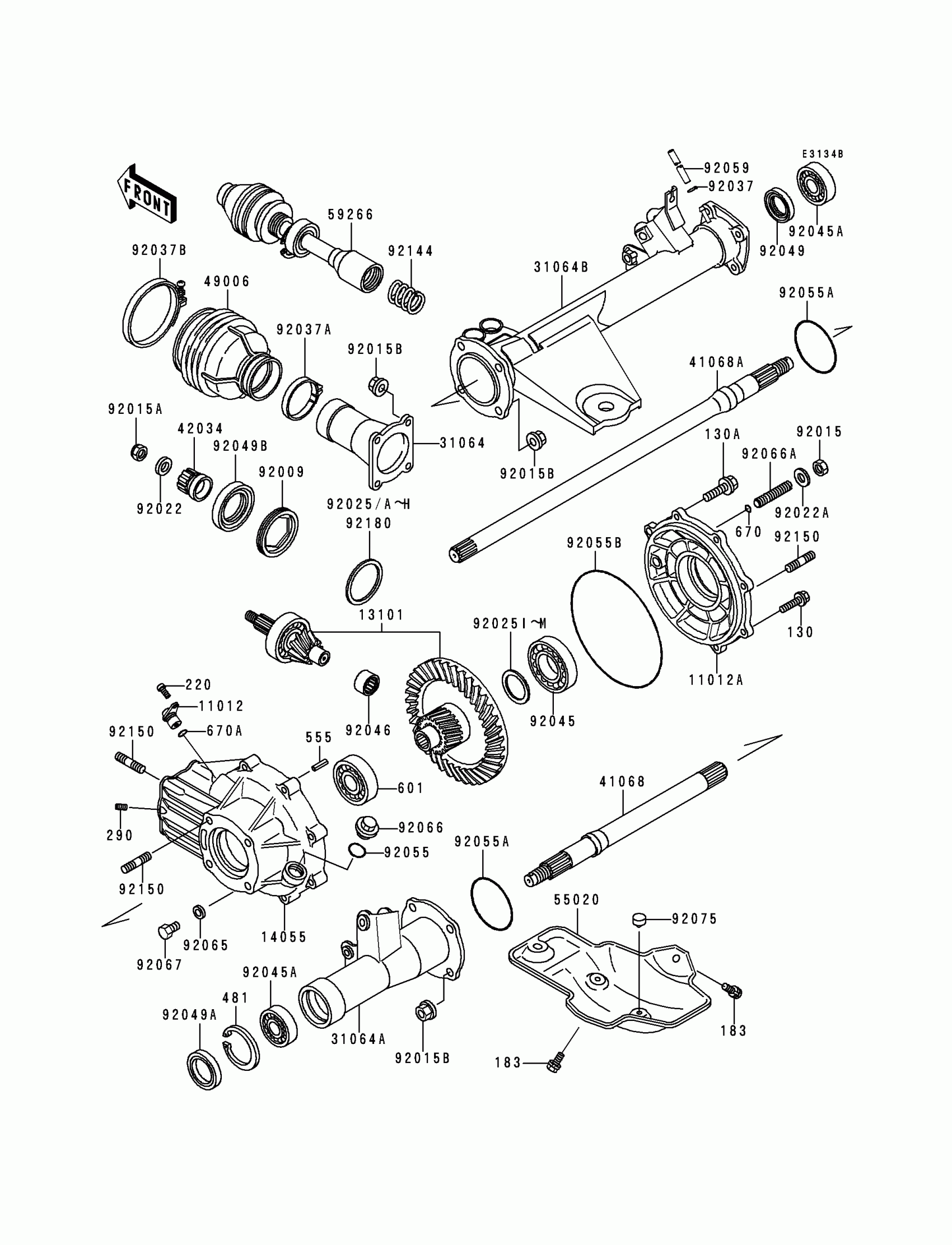

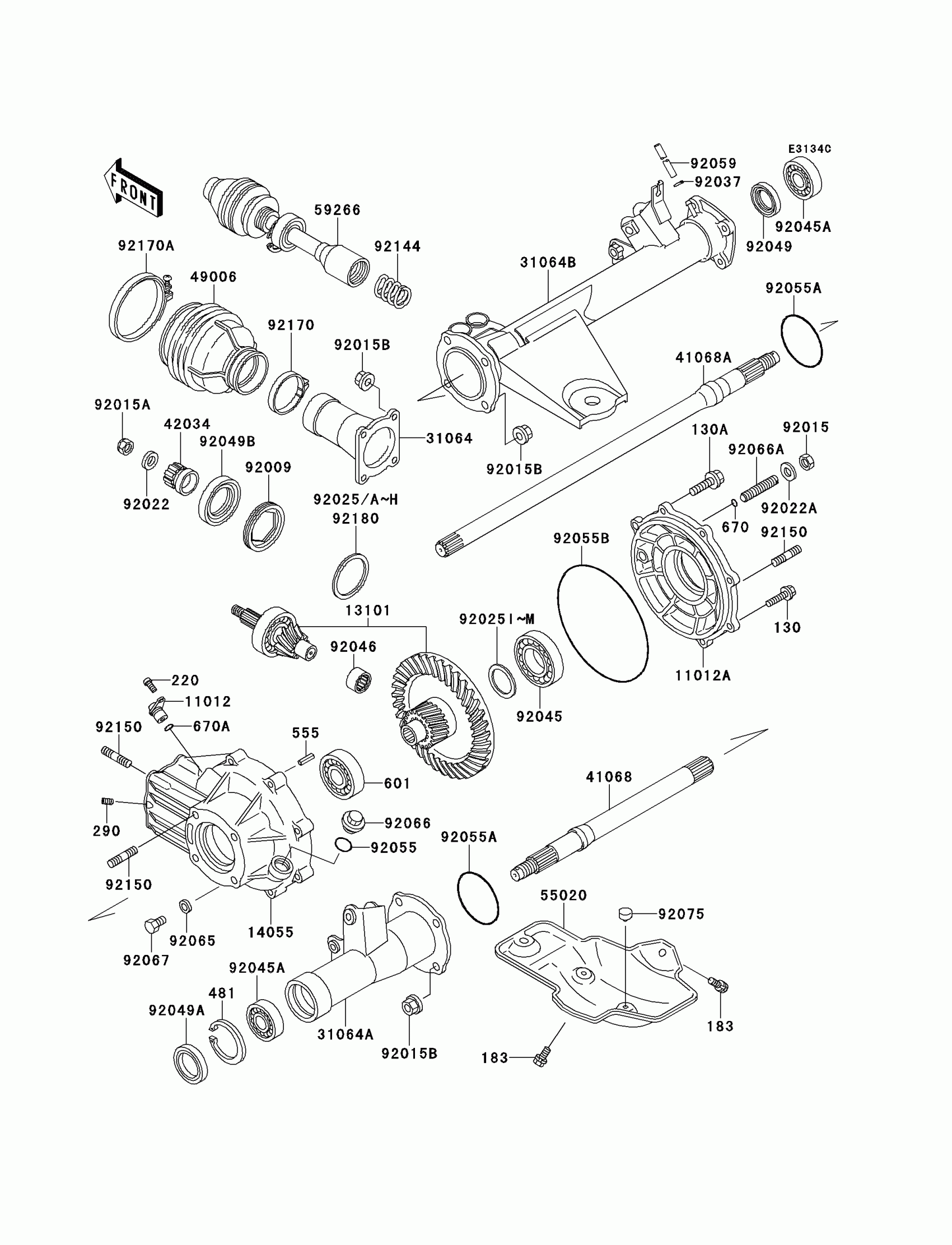

Kawasaki Bayou 300 4X4 Drive Shaft(Rear) Diagram

#

Description
Price

11012

CAP,METER GEAR

11012-1650

Unavailable

11012A

CAP,GEAR CASE

11012-1651

$187.40

13101

GEAR-ASSY,BEVEL

13101-5084

$685.84

14055

CASE-GEAR,RR

14055-1089

$232.79

31064

PIPE-COMP

31064-1097

$170.83

31064A

PIPE-COMP,LH

31064-1098

$138.93

31064B

PIPE-COMP,RH

31064-1099

$175.46

41068

AXLE,LH

41068-1347

$245.63

41068A

AXLE,RH

41068-1348

$449.77

42034

COUPLING

42034-1104

$70.59

49006

BOOT,DRIVE SHAFT

49006-1237

$21.04

55020

GUARD,ENGINE

55020-1306

$105.22

59266

JOINT-BALL

59266-1099

$662.19

92009

SCREW

92009-1528

Unavailable

92015

NUT,12MM

92015-006

$4.92

92015A

NUT,12MM

92015-1182

$7.69

92015B

NUT,FLANGED,10MM

92015-1335

$1.85

92022

WASHER,12.3X25X3.2

92022-1293

$5.75

92022A

WASHER,12MM

92022-1538

$0.66

92025

SHIM,52.5X61.5X0.15

92025-1669

Unavailable

92025A

SHIM,52.5X61.5X0.18

92025-1670

Unavailable

92025B

SHIM,52.5X61.5X0.8

92025-1671

Unavailable

92025C

SHIM,52.5X61.5X0.9

92025-1672

Unavailable

92025D

SHIM,52.5X61.5X1.0

92025-1673

Unavailable

92025E

SHIM,52.5X61.5X1.1

92025-1674

Unavailable

92025F

SHIM,52.5X61.5X1.2

92025-1675

Unavailable

92025G

SHIM,52.5X61.5X1.3

92025-1676

Unavailable

92025H

SHIM,52.5X61.5X1.4

92025-1677

Unavailable

92025I

SHIM,35.3X46X1.00

92025-1849

Unavailable

92025J

SHIM,35.3X46X0.10

92025-1850

Unavailable

92025K

SHIM,35.3X46X0.15

92025-1851

Unavailable

92025L

SHIM,35.3X46X0.50

92025-1856

Unavailable

92025M

SHIM,35.3X46X0.80

92025-1857

Unavailable

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP

92037-1523

$9.39

92037B

CLAMP

92037-1654

$7.04

92045

BEARING-BALL

92045-1110

$35.29

92045A

BEARING-BALL,6205DDU

92045-1229

$29.93

92046

BEARING-NEEDLE,NK20/1

92046-1183

$42.04

92049

SEAL-OIL,SO30428

92049-1236

$6.72

130

BOLT-FLANGED,8X30

130P0830

Unavailable

130A

BOLT-FLANGED

130P1035

Unavailable

183

BOLT-UPSET-WS-SMALL

183H0814

$0.76

220

SCREW-PAN-CROS

220X0614

Unavailable

290

SCREW-SET-SOCKET

290Q0612

$5.37

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

555

PIN-SPRING

555A0422

$4.61

601

BEARING-BALL,#6007C3

601B6007

$24.07

670

O RING,9MM

670B1509

$2.72

670A

O RING,12MM

670B2012

$2.22

92049A

SEAL-OIL

92049-1287

$9.95

92049B

SEAL-OIL,TC406510

92049-1310

Unavailable

92055

RING-O,25.7X2.4

92055-1136

$3.81

92055A

RING-O

92055-1207

$5.65

92055B

RING-O,164.1X2.5

92055-1411

$10.24

92059

TUBE,4.7X9.5X1240

92059-1968

$21.61

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-1303

$9.85

92066A

PLUG

92066-1305

$19.78

92067

PLUG,DRAIN,10X12

92067-001

$3.36

92075

DAMPER

92075-021

$4.61

92144

SPRING

92144-1278

$3.95

92150

BOLT,10X22

92150-1197

$7.14

92180

SHIM,52.5X61.5X0.10

92180-1115

Unavailable
