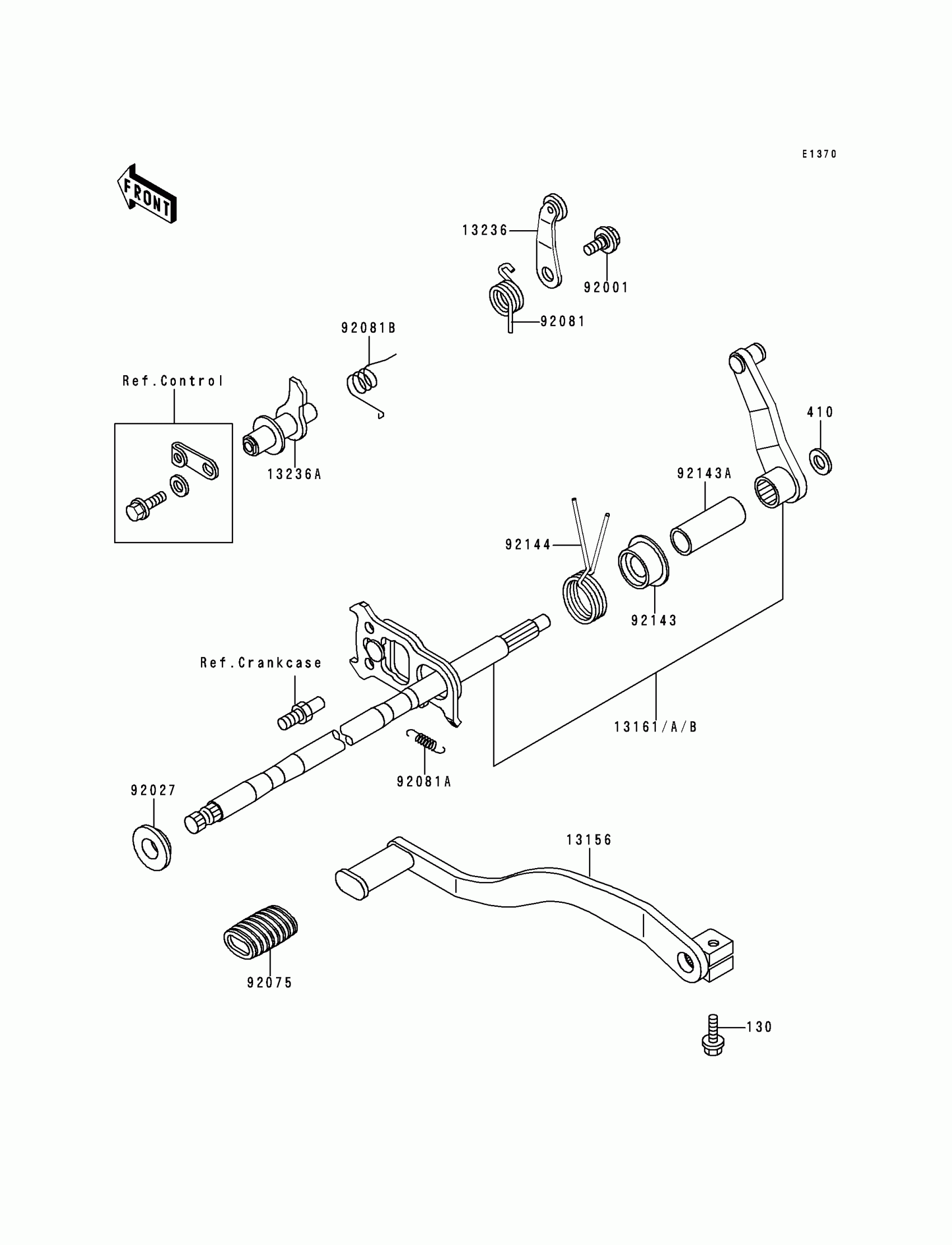

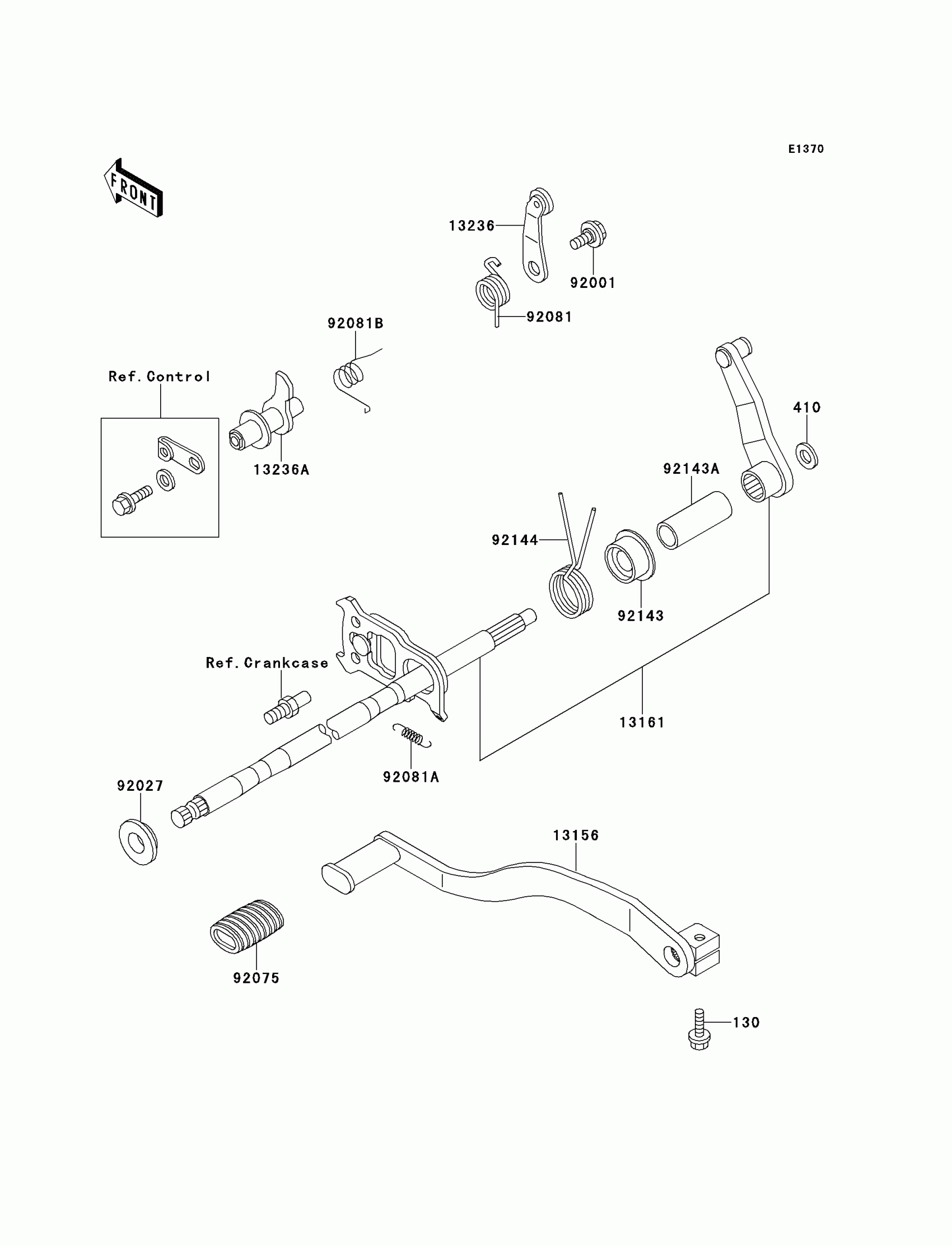

Kawasaki Bayou 300 4X4 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

13156

LEVER-CHANGE,PEDAL

13156-1248

$53.61

13161A

LEVER-COMP-CHANGE SHAFT

13161-1174

Unavailable

13236

LEVER-COMP,CHANGE DRUM

13236-1133

$12.85

13236A

LEVER-COMP,REVERSE

13236-1238

Unavailable

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92027

COLLAR,L=5.2

92027-1891

$9.48

92075

DAMPER

92075-1585

$7.91

92081

SPRING

92081-1496

$8.73

92081A

SPRING,CHANGE LEVER

92081-1753

$5.71

92081B

SPRING,REVERSE LEVER

92081-1850

$7.44

92143

COLLAR

92143-1321

$13.88

92143A

COLLAR,13.3X17.3X44.7

92143-1574

$9.07

92144

SPRING,CHANGE SHAFT RETURN

92144-1359

$9.08
