2005 Kawasaki Bayou 250 Recoil Starter Diagram

← All diagrams

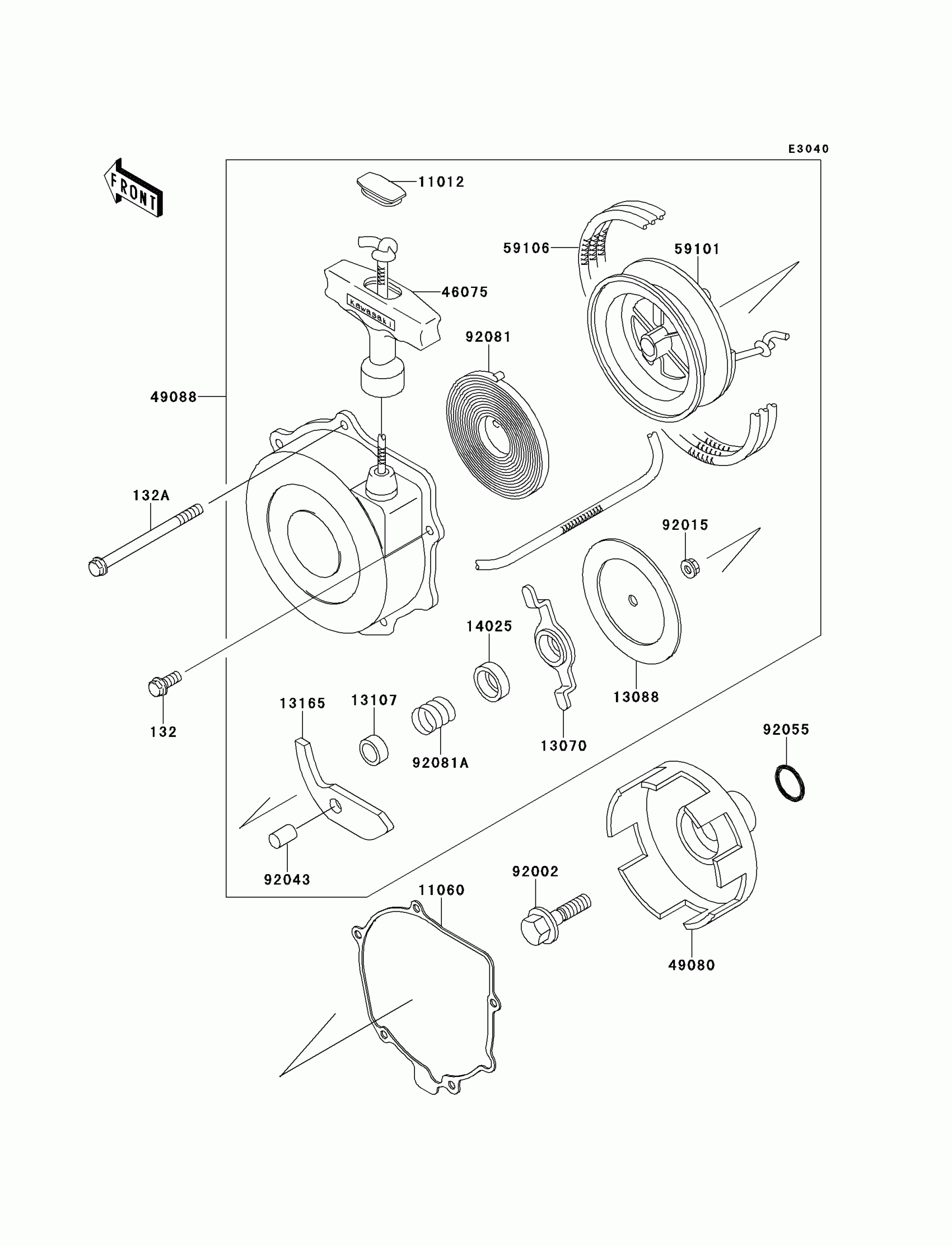

Find the part on the Recoil Starter diagram for your 2005 Kawasaki Bayou 250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki Bayou 250 Recoil Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132J0614

1
Out of stock

132A

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

11012

CAP,RECOIL GRIP

11012-1420

1
Out of stock

11060

GASKET,RECOIL STARTER

11060-1650

1
Out of stock

13070

GUIDE,RECOIL

13070-1123

1
Out of stock

13088

PLATE-FRICTION,RECOIL

13088-1059

1
Out of stock

13107

SHAFT,RECOIL

13107-1129

1
Out of stock

13165

PAWL,RECOIL

13165-1110

1
Out of stock

14025

COVER,RECOIL

14025-1966

1

$4.07

In stock

46075

GRIP,RECOIL

46075-1073

1

$14.98

In stock

49080

PULLEY-STARTING

49080-1051

1
Out of stock

49088

STARTER-RECOIL

49088-1054

1
Out of stock

59101

REEL

59101-1105

1
Out of stock

59106

ROPE,RECOIL

59106-1102

1
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92015

NUT,6MM

92015-1464

1
Out of stock

92043

PIN,RECOIL

92043-1259

1
Out of stock

92055

RING-O,16.8MM

92055-1235

1
Out of stock

92081

SPRING,RECOIL

92081-1772

1
Out of stock

92081A

SPRING

92081-1773

1
Out of stock
