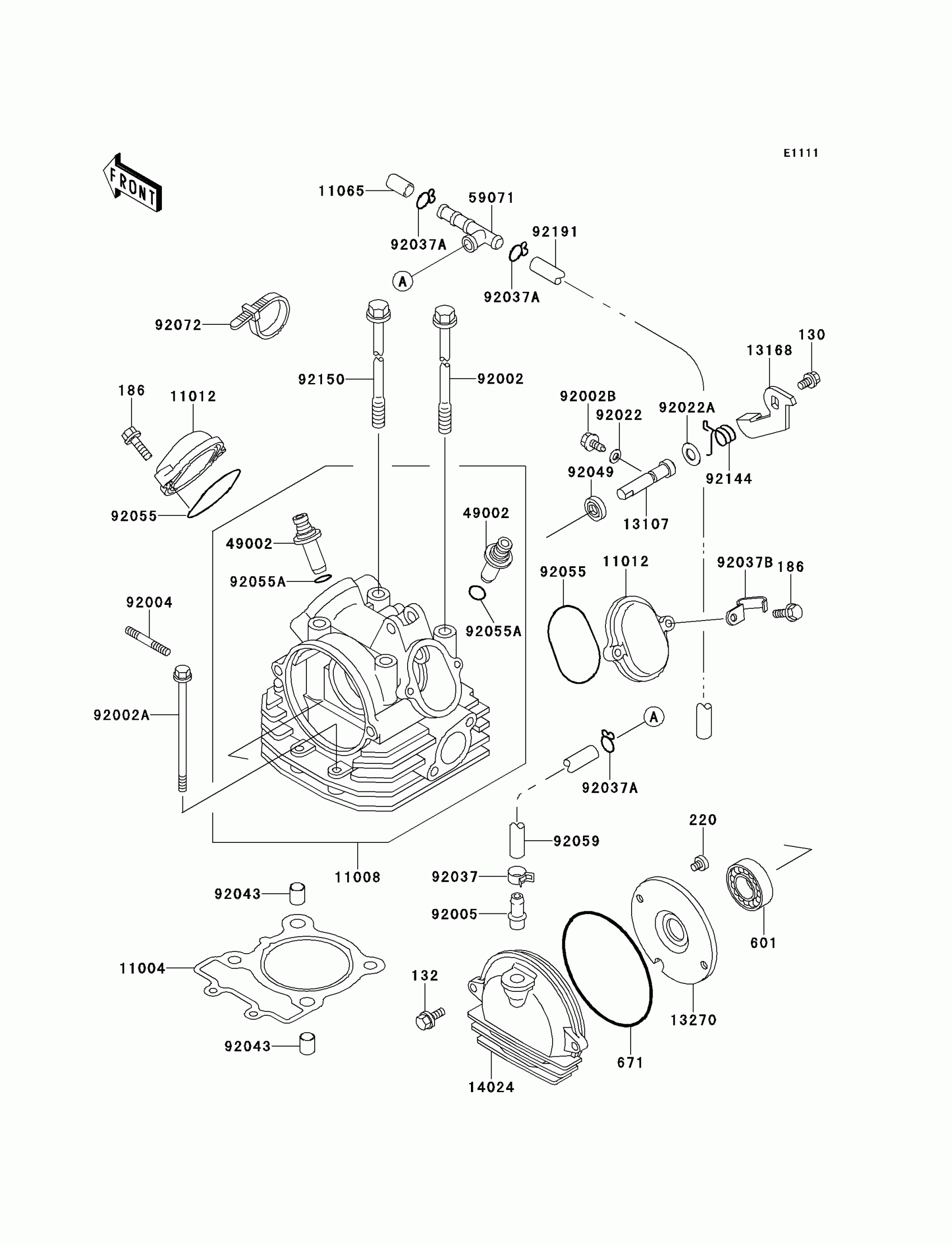

Kawasaki Bayou 250 Cylinder Head Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130Y0610

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132Y0616

Unavailable

186

BOLT-UPSET-WP

186G0625

Unavailable

220

SCREW-PAN-CROS,6X8

220B0608

$0.54

601

BEARING-BALL

601A6004ZZ

$21.95

671

O RING,95MM

671B2595

$5.58

11004

GASKET-HEAD

11004-1375

$46.66

11008

HEAD-COMP-CYLINDER

11008-1197

$871.39

11012

CAP,ROCKER ARM

11012-1486

$29.66

11065

CAP

11065-1075

$3.32

13107

SHAFT,DECOMPRESSOR

13107-1209

$35.27

13168

LEVER,DECOMPRESSOR

13168-1353

$7.71

13270

PLATE

13270-1960

$4.93

14024

COVER,CAMSHAFT

14024-1485

$70.21

49002

GUIDE-VALVE

49002-1079

Unavailable

59071

JOINT

59071-1124

$10.46

92002

BOLT,10X228

92002-1960

Unavailable

92002A

BOLT,6X113

92002-1961

$7.20

92002B

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$2.99

92004

STUD,6X30

92004-1128

$4.02

92005

FITTING,BREATHER PIPE

92005-1161

$11.12

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,10.2X20X0.5

92022-1649

$3.29

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92037A

CLAMP,12.5MM

92037-1271

$1.73

92037B

CLAMP

92037-1939

$5.75

92043

PIN,10.1X12X14

92043-4009

$4.67

92049

SEAL-OIL,10X20X5

92049-1542

$6.07

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,VALVE GUIDE

92055-1177

Unavailable

92059

TUBE,9X12X148

92059-1848

$8.51

92072

BAND,L=149

92072-031

$3.81

92144

SPRING,DECOMPRESSOR

92144-1154

$5.10

92150

BOLT,FLANGED,10X228

92150-1107

Unavailable

92191

TUBE,9X12X380

92191-1169

$8.58
