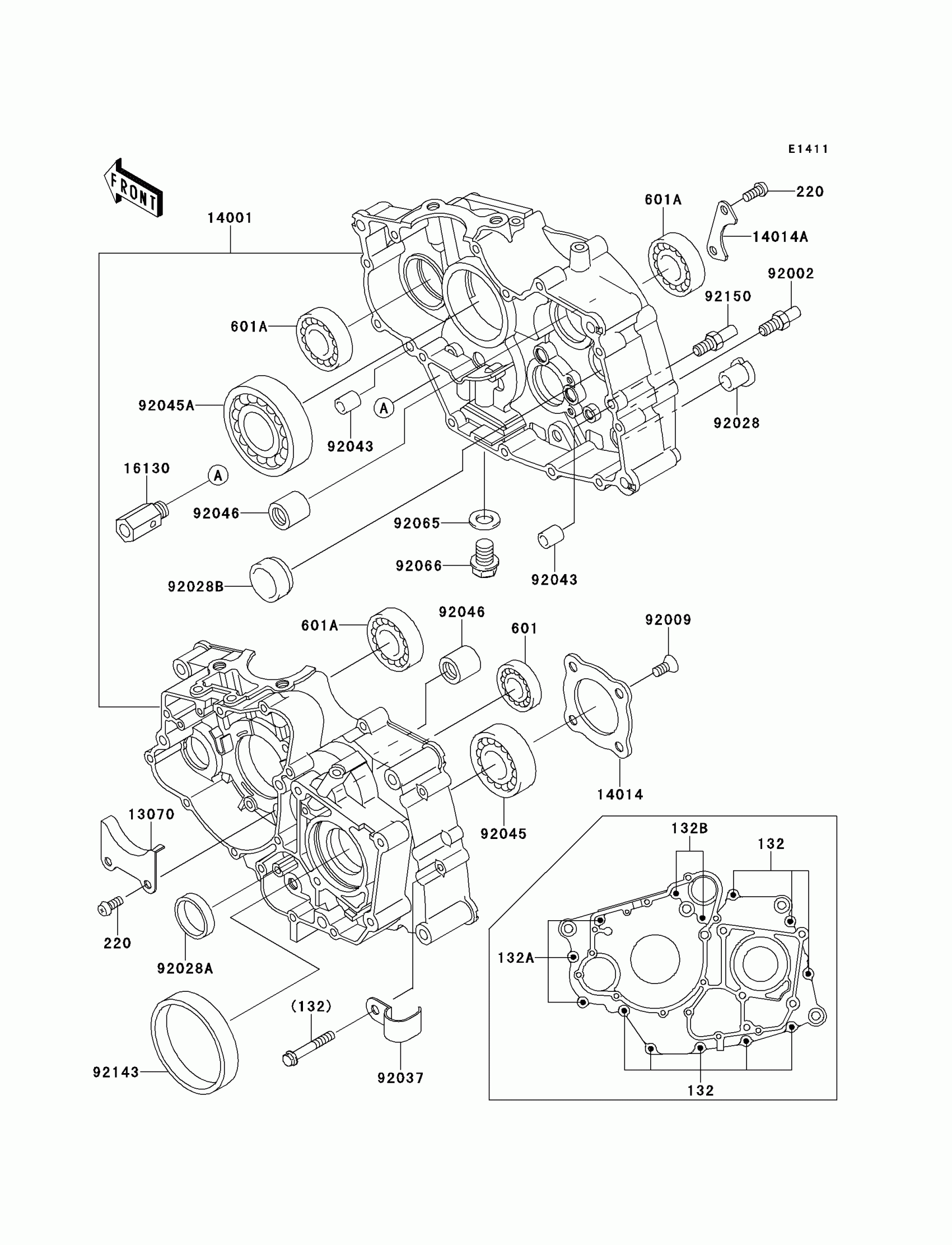

Kawasaki Bayou 250 Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X40

132Y0640

Unavailable

132A

BOLT-FLANGED-SMALL,6X60

132Y0660

Unavailable

132B

BOLT-FLANGED-SMALL

132Y0675

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

601

BEARING-BALL

601A6202Z

$17.27

601A

BEARING-BALL,#6204

601A6204

$12.07

13070

GUIDE,CAM CHAIN

13070-1176

$5.10

14001

SET-CRANKCASE

14001-1312

$738.92

14014

PLATE-POSITION

14014-1086

$17.86

14014A

PLATE-POSITION

14014-1088

$7.69

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

92002

BOLT,SOCKET,4X8

92002-1408

$5.75

92009

SCREW,6X14

92009-1349

$3.19

92028

BUSHING

92028-1386

$16.31

92028A

BUSHING,14X16X15

92028-1505

$9.08

92028B

BUSHING

92028-1506

$22.44

92037

CLAMP

92037-1939

$5.75

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045A

BEARING-BALL

92045-1172

$49.82

92046

BRG,NEEDLE,HMK1515B

92046-060

Unavailable

92065

GASKET,12X22X2

92065-097

$0.66

92066

PLUG,OIL DRAIN,12X15

92066-1174

$4.64

92143

COLLAR,66X70X11

92143-1120

$17.66

92150

BOLT,RETURN SPRING

92150-1467

$5.69
