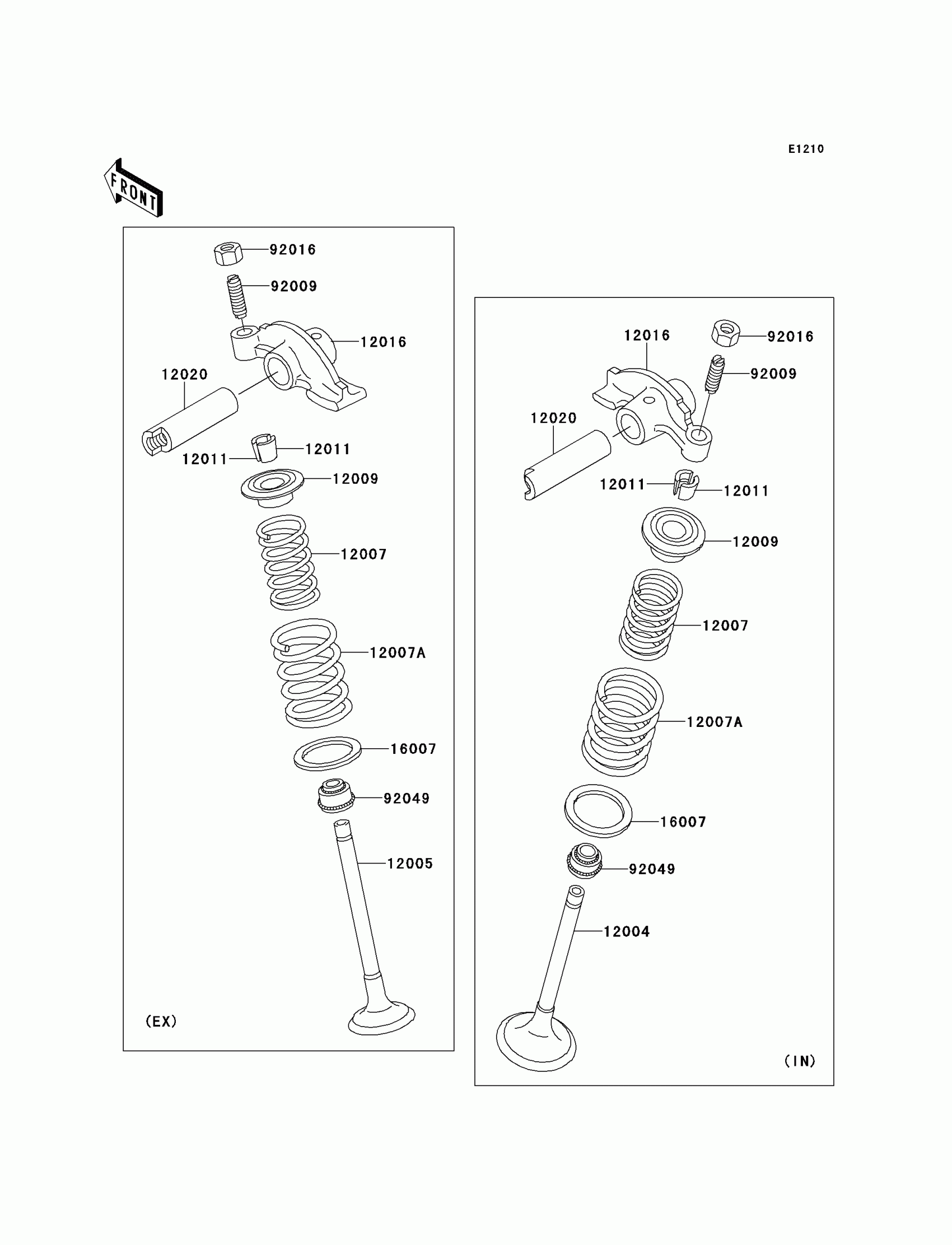

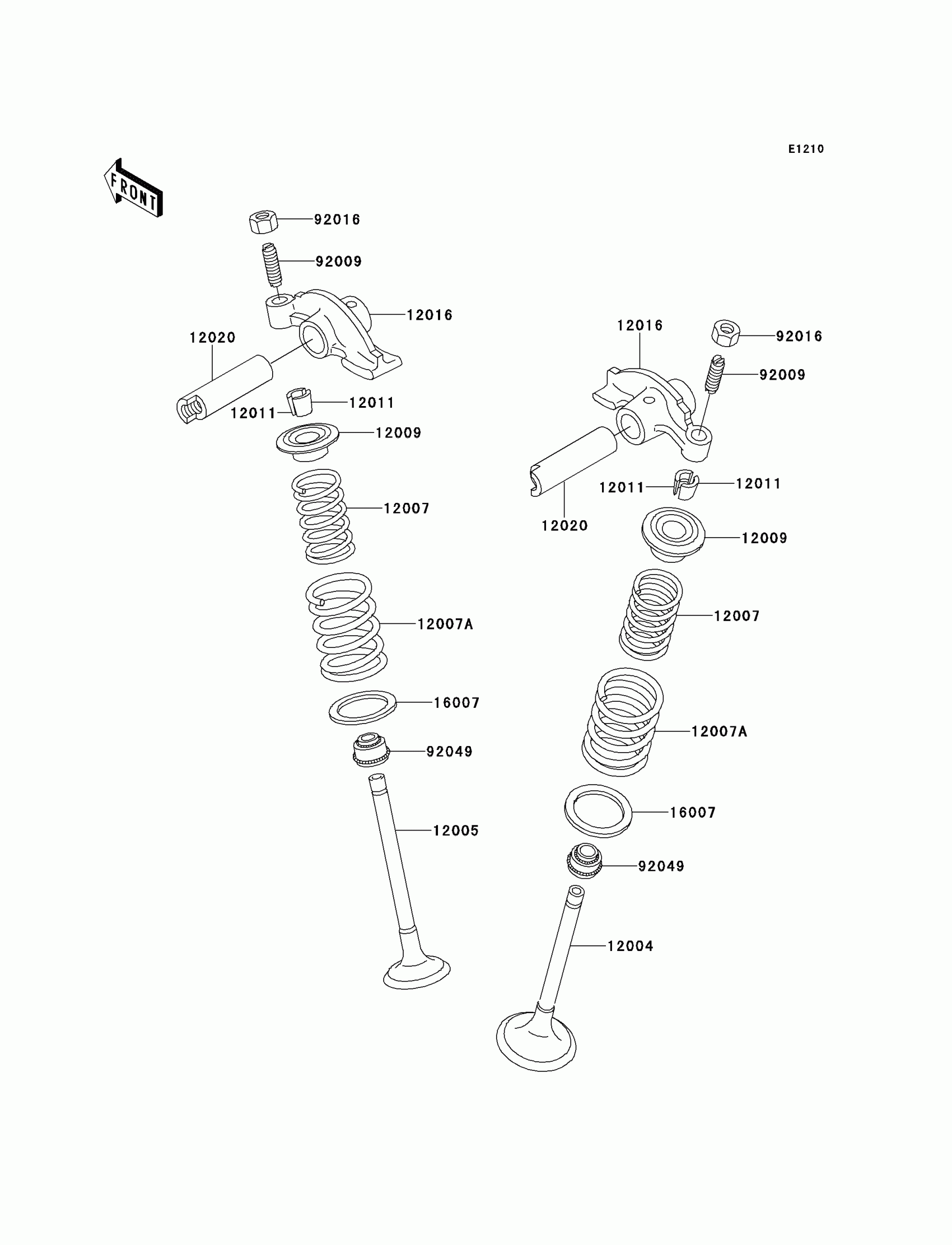

Kawasaki Bayou 250 Valve(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-1082

$39.92

12005

VALVE-EXHAUST

12005-1093

$69.24

12007

SPRING-ENGINE VALVE,INNER

12007-1001

$10.46

12007A

SPRING-ENGINE VALVE,OUTER

12007-1002

$14.24

12009

RETAINER-VALVE SPRING

12009-1001

$10.56

12011

COLLET

12011-1003

$3.54

12016

ARM-ROCKER

12016-1099

$62.77

12020

SHAFT-ROCKER

12020-1053

$26.42

16007

SEAT-SPRING

16007-1106

Unavailable

92009

SCREW,6MM

92009-1032

Unavailable

92016

NUT,6MM

92016-061

$3.57

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$3.90
