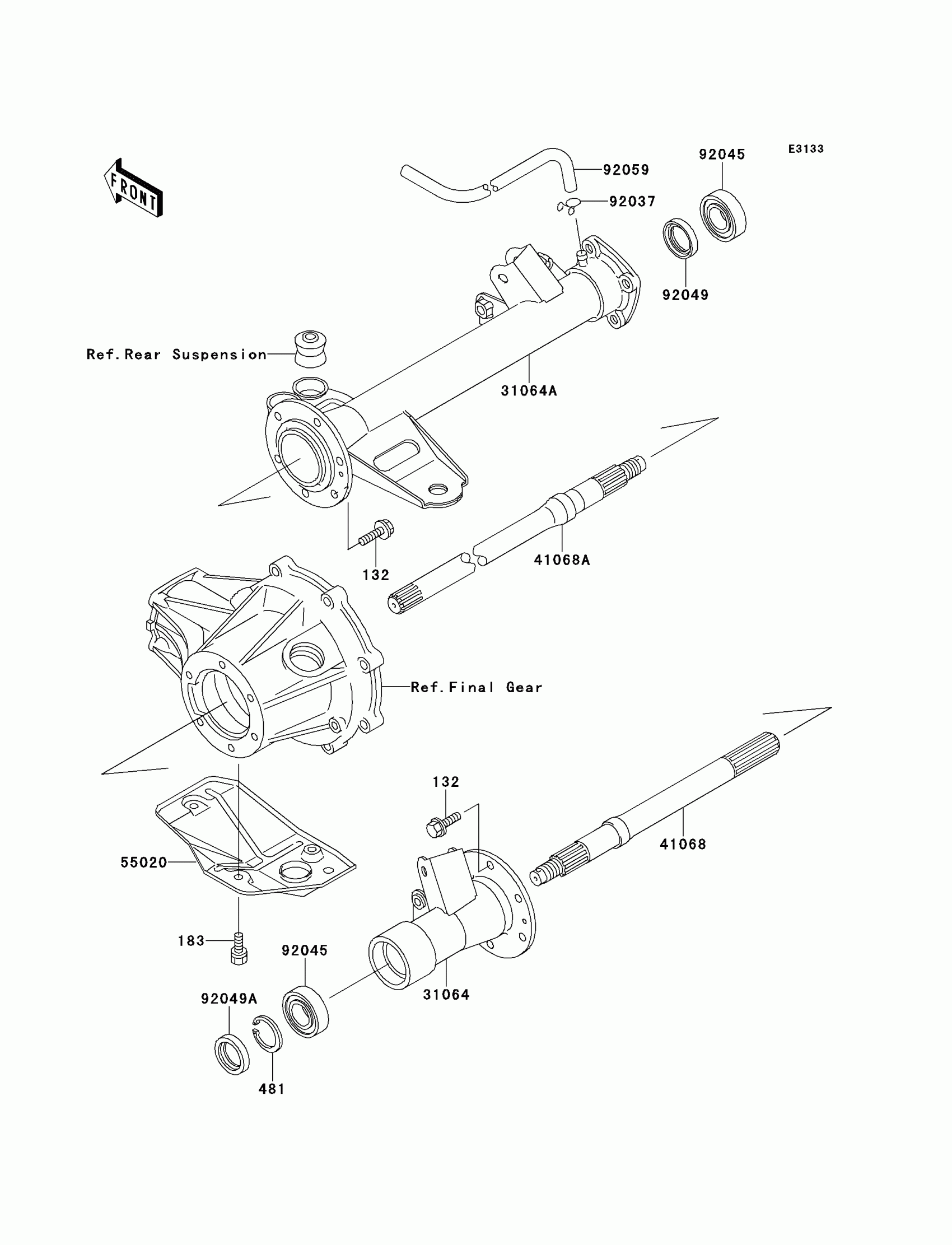

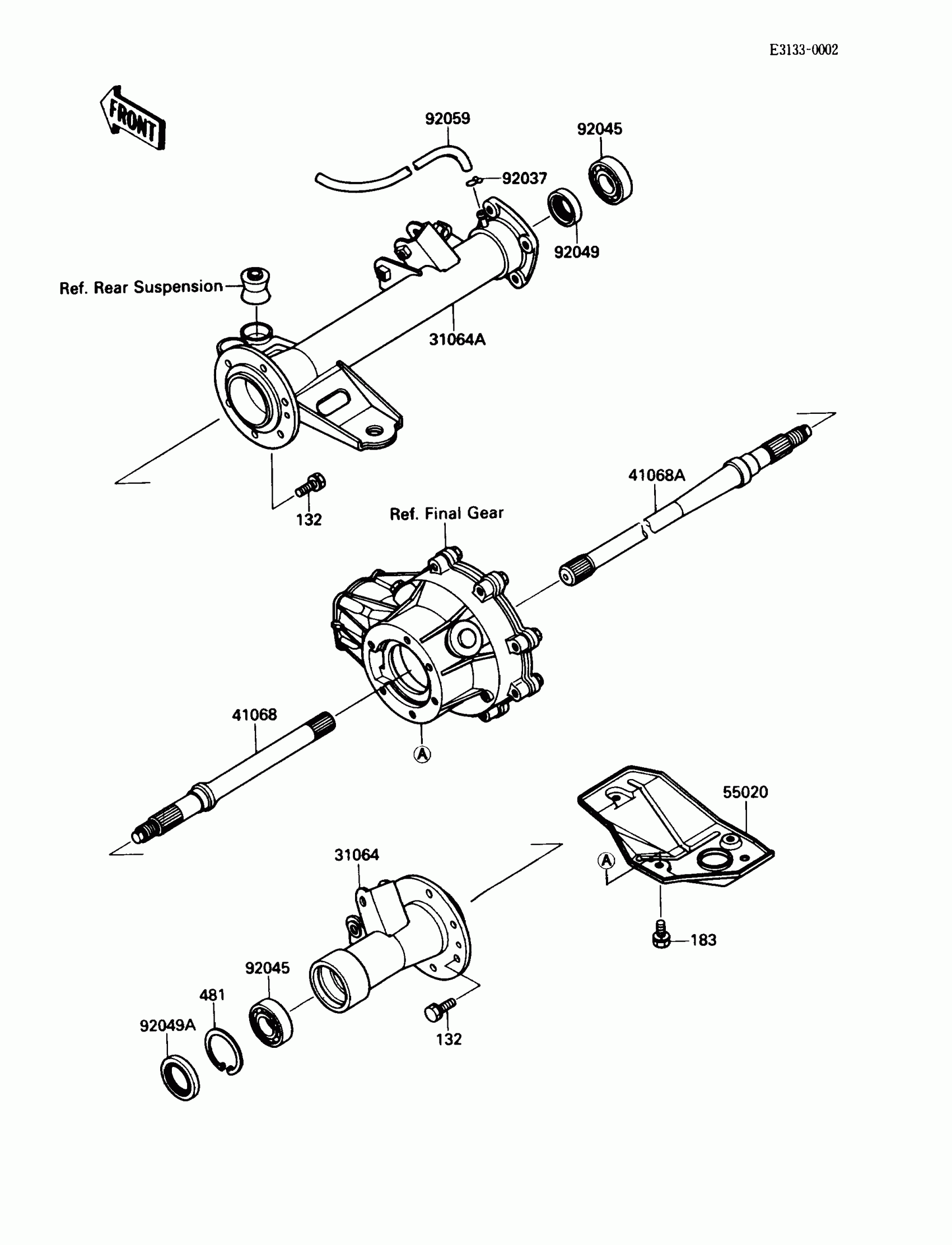

Find the part on the Rear Axle diagram for your 1991 Kawasaki Bayou 220, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki Bayou 220 Rear Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X20

132J0820

1
Out of stock

183

BOLT-UPSET-WS-SMALL

183H0814

1
Out of stock

481

CIRCLIP-TYPE-C,52MM

481J5200

1
Out of stock

31064

PIPE-COMP,LH

31064-1088

1
Out of stock

31064A

PIPE-COMP,RH

31064-1089

1
Out of stock

41068

AXLE,LH

41068-1244

1
Out of stock

41068A

AXLE,RH

41068-1245

1
Out of stock

55020

GUARD

55020-1276

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92045

BEARING-BALL,6205DDU

92045-1229

1
Out of stock

92049

SEAL-OIL,SO30428

92049-1236

1
Out of stock

92049A

SEAL-OIL

92049-1287

1
Out of stock

92059

TUBE,4.7X9.5X1240

92059-1968

1
Out of stock
