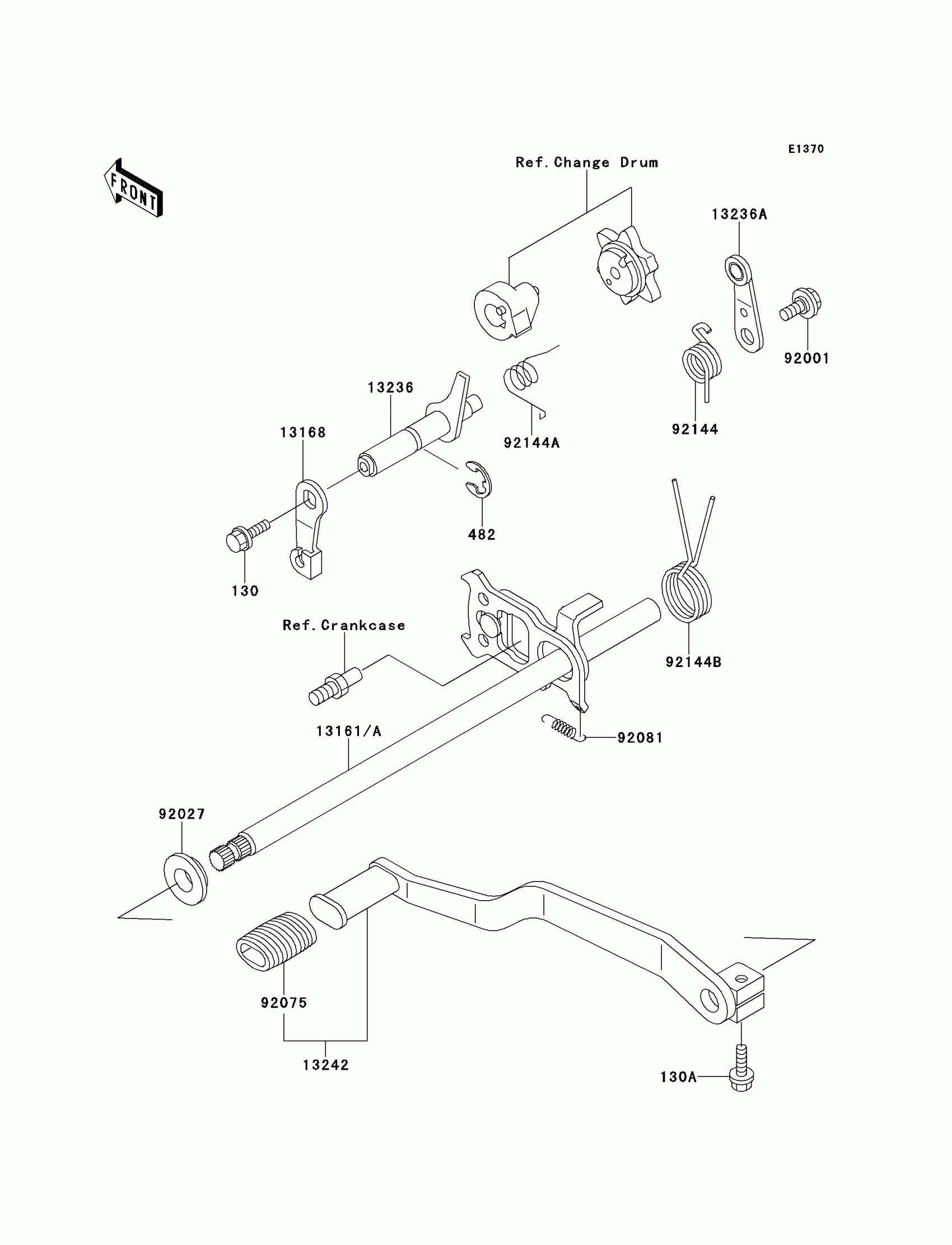

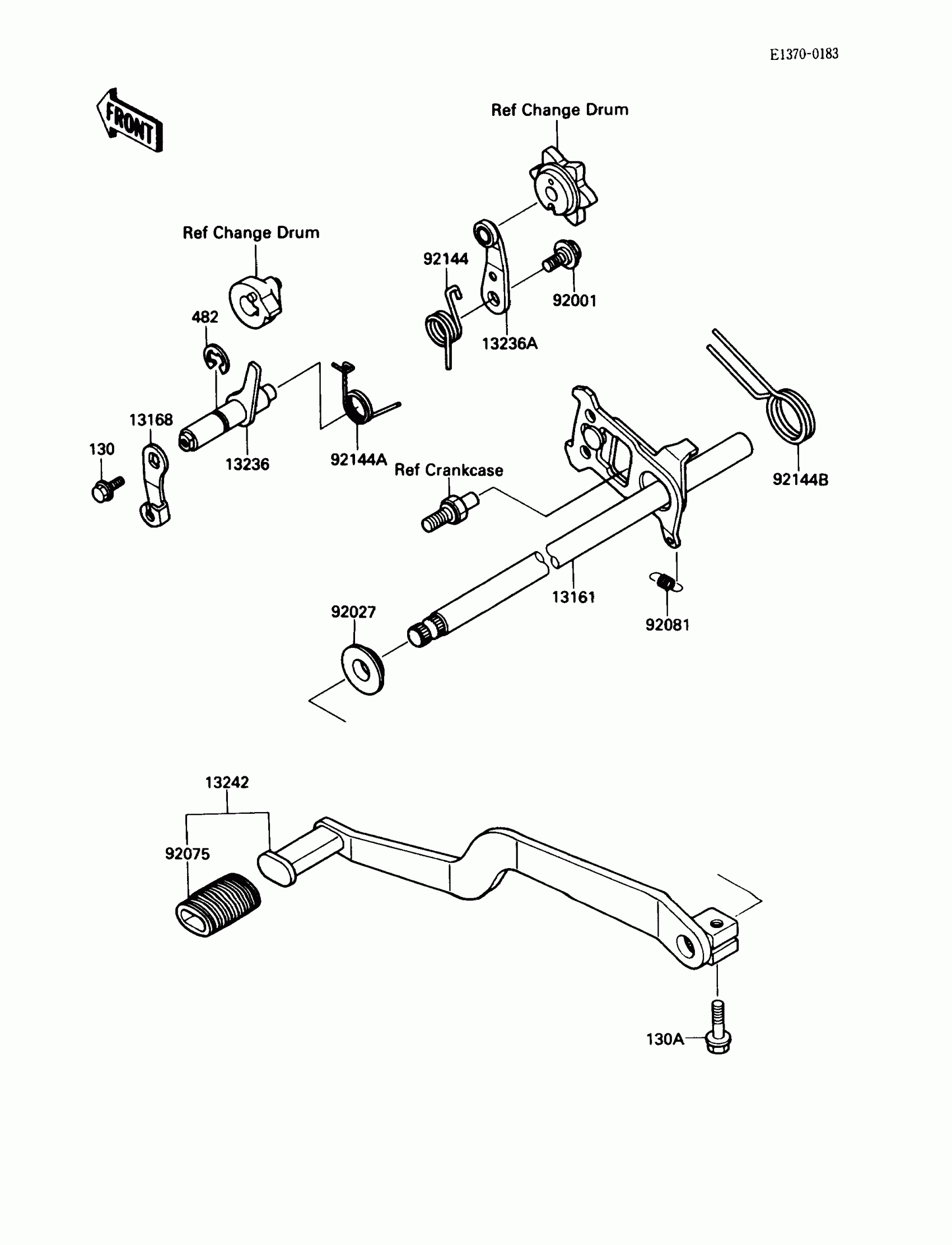

Kawasaki Bayou 220 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X10

130C0610

Unavailable

130A

BOLT-FLANGED,6X20

130S0620

Unavailable

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

13161

LEVER-COMP-CHANGE SHAFT

13161-1152

Unavailable

13168

LEVER,REVERSE CABLE

13168-1357

$5.81

13236

LEVER-COMP,REVERSE

13236-1157

$30.89

13236A

LEVER-COMP,CHANGE POSITION

13236-1164

$12.02

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1234

Unavailable

92001

BOLT,FLANGED,6X14

92001-1715

$10.25

92027

COLLAR,L=5.2

92027-1891

$9.48

92075

DAMPER

92075-1585

$7.91

92081

SPRING,CHANGE LEVER

92081-1753

$5.71

92144

SPRING

92144-1162

$4.93

92144A

SPRING

92144-1163

$5.10

92144B

SPRING,CHANGE SHAFT RETURN

92144-1216

Unavailable
