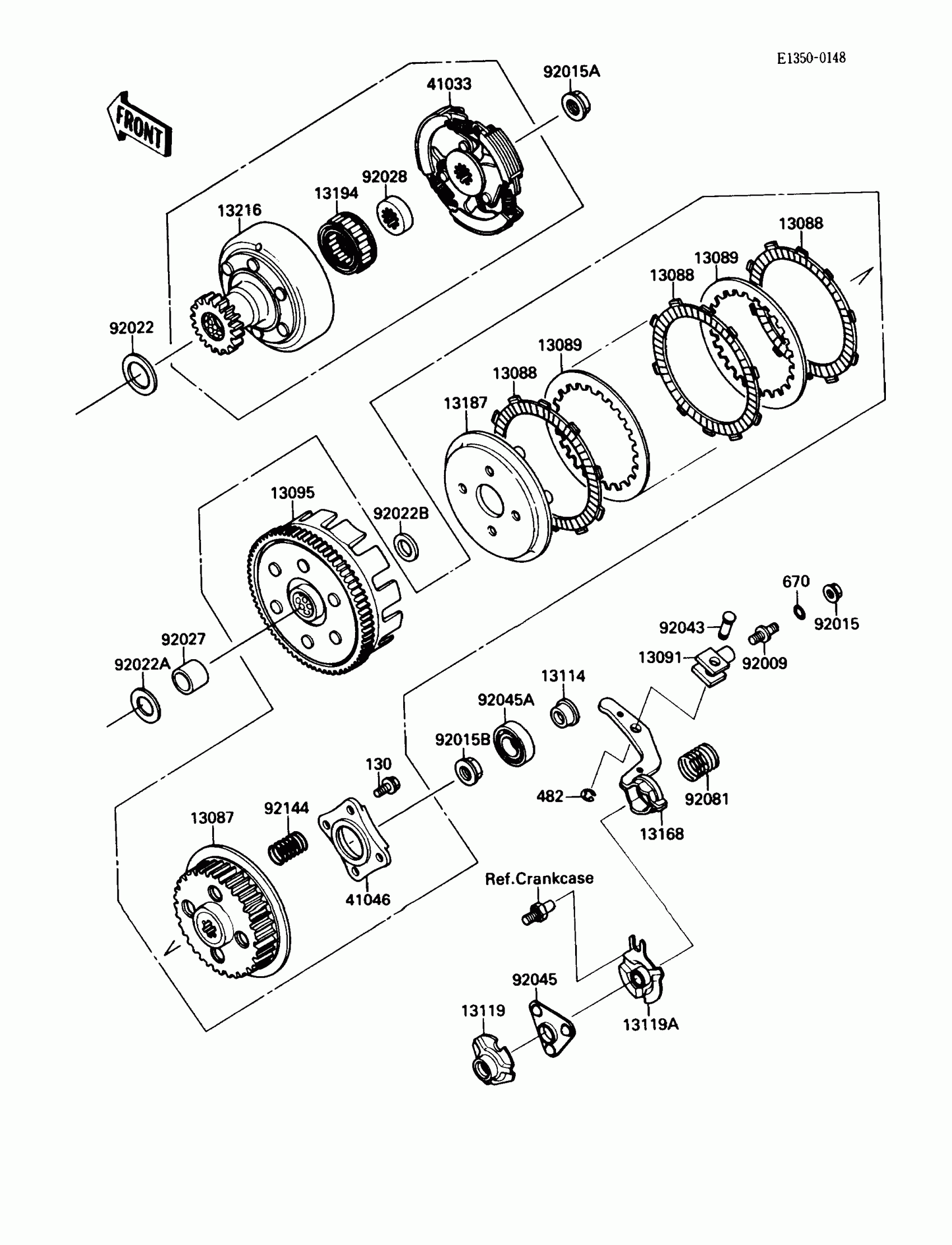

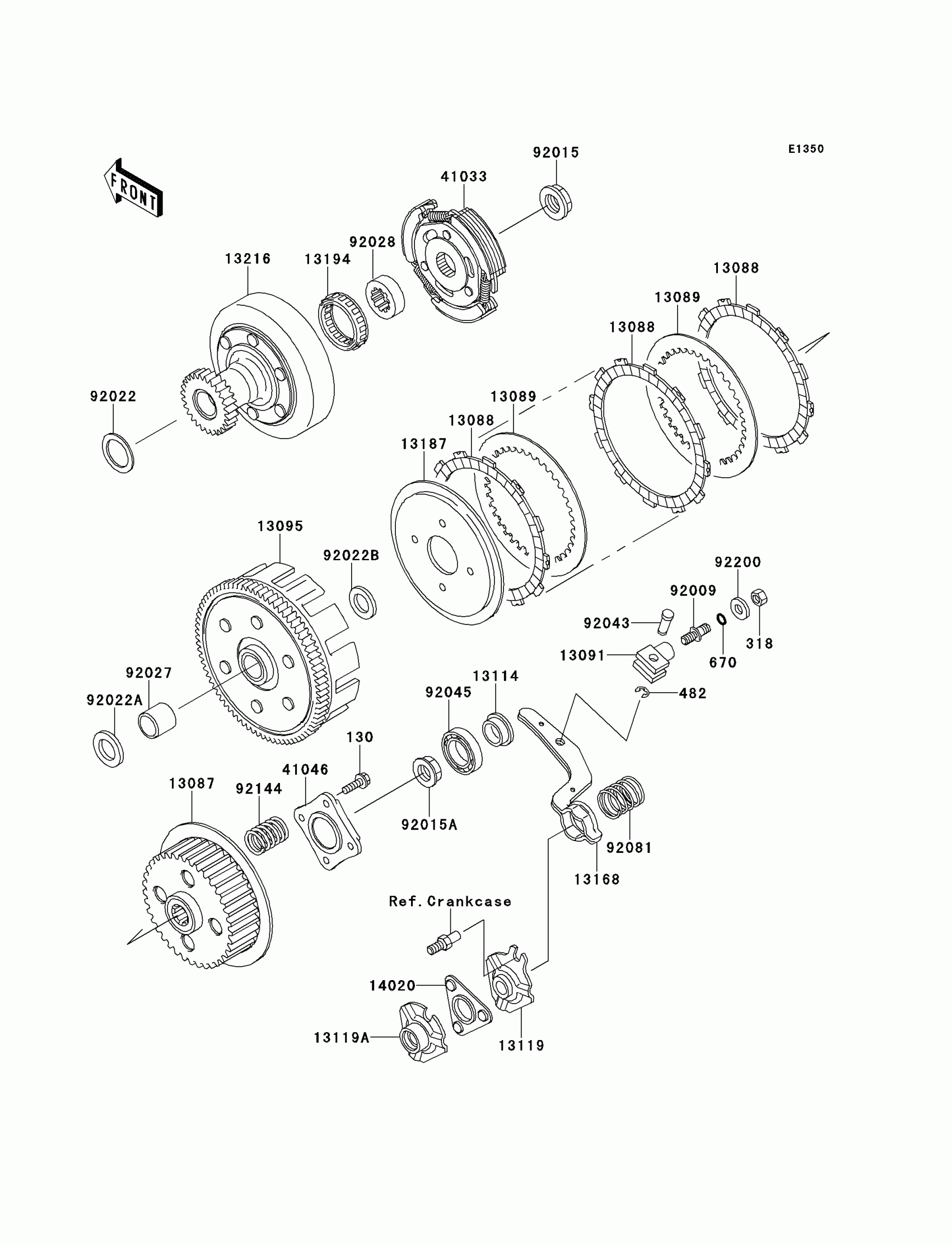

Kawasaki Bayou 220 Clutch Diagram

#

Description
Price

130

BOLT-FLANGED,6X20

130P0620

$1.22

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

670

O RING,8MM

670B1508

$1.00

13087

HUB-CLUTCH

13087-1089

$106.45

13088

PLATE-FRICTION

13088-1068

$14.83

13089

PLATE-CLUTCH

13089-1076

$9.73

13091

HOLDER,CLUTCH RELEASE

13091-1341

$47.79

13095

HOUSING-COMP-CLUTCH

13095-1163

Unavailable

13114

PUSHER-CLUTCH

13114-1057

$21.07

13119

CAM-RELEASE

13119-1059

Unavailable

13119A

CAM-RELEASE

13119-1060

Unavailable

13168

LEVER

13168-1354

$31.28

13187

PLATE-CLUTCH OPERATING

13187-1061

$69.65

13194

CLUTCH-ONEWAY

13194-1055

$126.70

13216

GEAR-COMP,CLUTCH

13216-1120

$257.76

41033

HUB-ASSY,CLUTCH

41033-1658

$297.86

41046

HOUSING-BEARING

41046-1082

$49.54

92009

SCREW,CLUTCH RELEASE

92009-1303

$9.48

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92015A

NUT,18MM

92015-1512

$14.25

92015B

NUT,16MM

92015-1581

$14.81

92022

WASHER,28.1X34X1.0

92022-1731

$7.20

92022A

WASHER,20.2X36X2

92022-1880

$7.25

92022B

WASHER,20.2X35X4

92022-1881

$9.78

92027

COLLAR,20X25X21

92027-1798

$30.72

92028

BUSHING,CLUTCH,FR

92028-1370

$40.06

92043

PIN,CLUTCH RELEASE

92043-1230

$11.92

92045

BEARING-BALL,CLUTCH RELEASE

92045-1117

$19.47

92045A

BEARING-BALL

92045-1202

Unavailable

92081

SPRING

92081-1681

Unavailable

92144

SPRING,CLUTCH

92144-1160

$9.08
