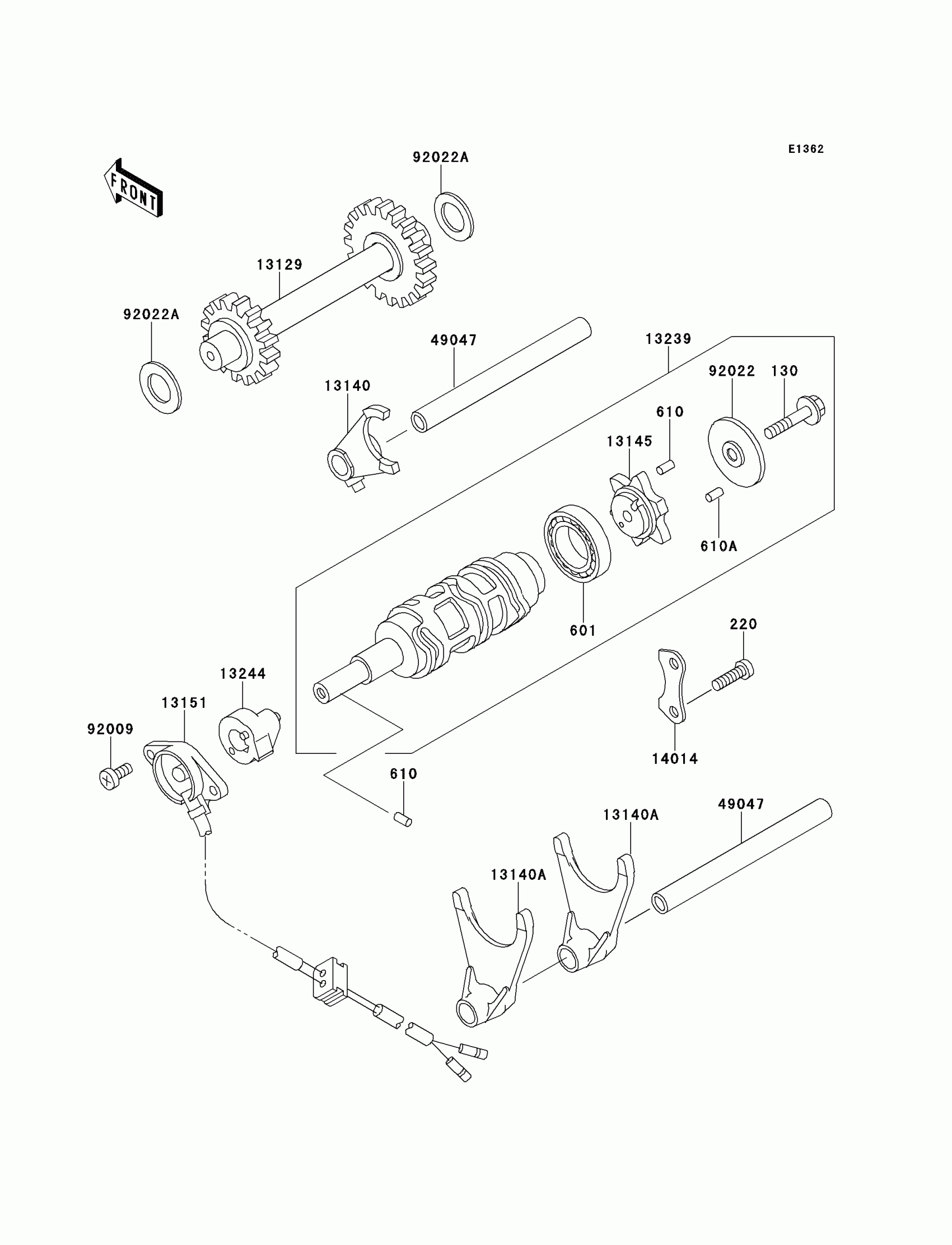

Kawasaki Bayou 220 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

130

BOLT-FLANGED,6X35

130G0635

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

601

BEARING-BALL

601A6005

$10.48

610

ROLLER,4X6

610A0406

$3.29

610A

ROLLER,4X12

610A0412

$4.85

13129

GEAR,REVERSE,22T&27T

13129-1870

$226.72

13140

FORK-SHIFT

13140-1161

$92.11

13140A

FORK-SHIFT

13140-1162

$92.11

13145

CAM-CHANGE DRUM

13145-1064

$47.94

13151

SWITCH-COMP,NEUTRAL

13151-1067

$76.94

13239

DRUM-ASSY-CHANGE

13239-1145

$138.86

13244

STOPPER-ASSY,REVERSE

13244-1055

Unavailable

14014

PLATE-POSITION

14014-1087

$5.37

49047

ROD-SHIFT

49047-1073

$18.72

92009

SCREW,5X14

92009-1341

$3.75

92022

WASHER,CHANGE DRUM

92022-1886

$6.71

92022A

WASHER,THRUST,15MM

92022-279

$10.19
