1988 Kawasaki Bayou 185 Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1988 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

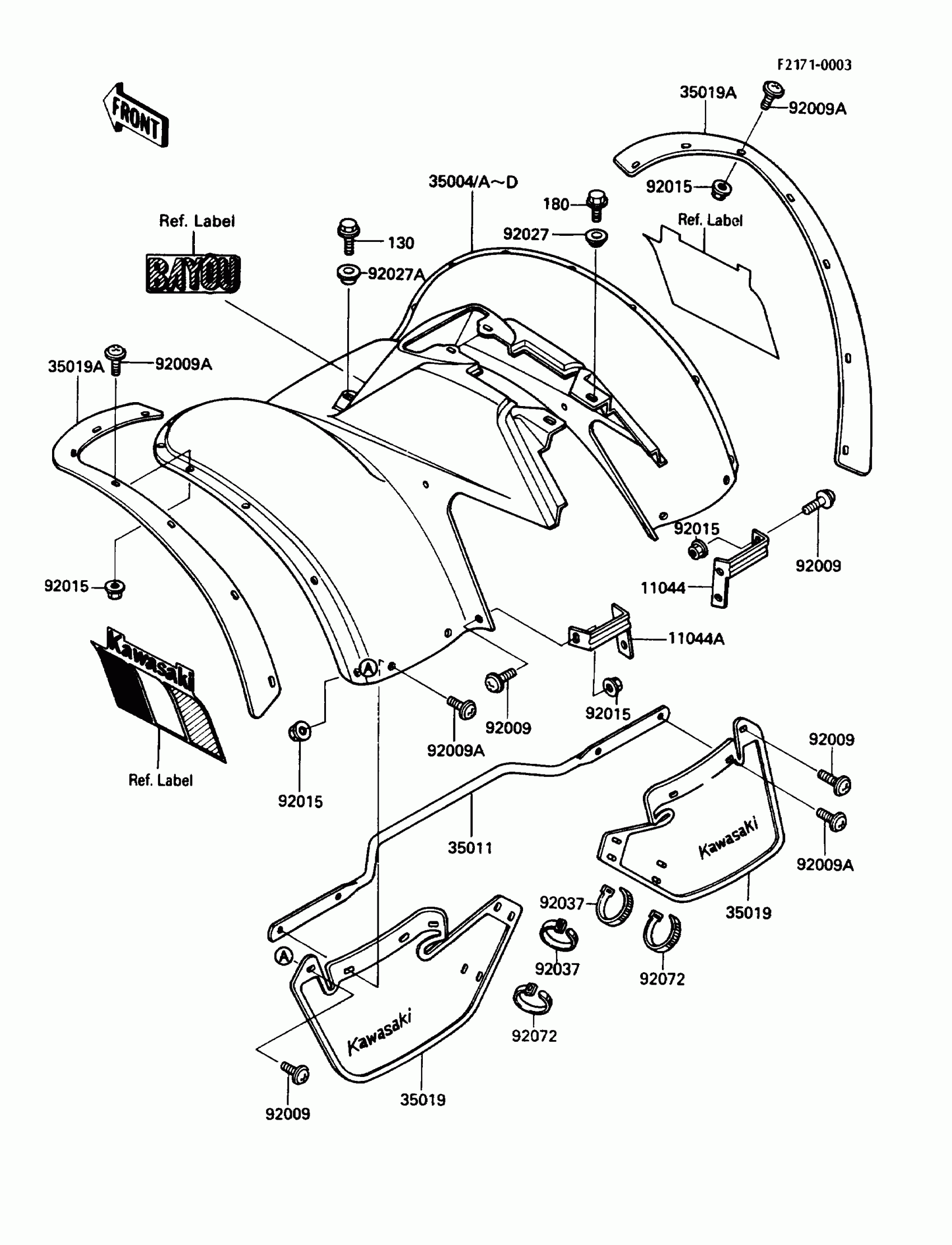

1988 Kawasaki Bayou 185 Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,FR FLAP,RH

11044-1071

1
Out of stock

11044A

BRACKET,FR FLAP,LH

11044-1072

1
Out of stock

35004A

FENDER-FRONT,P.WHITE

35004-1184-6F

1

$604.60

In stock

35004B

FENDER-FRONT,F.RED

35004-1184-6L

1

$380.93

In stock

35011

STAY,FR FENDER

35011-1255

1

$81.97

In stock

35019

FLAP,FR

35019-1142

1
Out of stock

35019A

FLAP,SIDE

35019-1145

1

$65.51

In stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X14

92009-1288

1
Out of stock

92015

1

$3.43

In stock

92027

COLLAR

92027-122

1

$6.83

In stock

92027A

COLLAR

92027-1908

1

$8.37

In stock

92037

CLAMP,BAND,L=120

92037-1483

1
Out of stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

130

BOLT-FLANGED,8X25

130C0825

1
Out of stock

180

BOLT-UPSET-WS

180B0618

1
Out of stock
