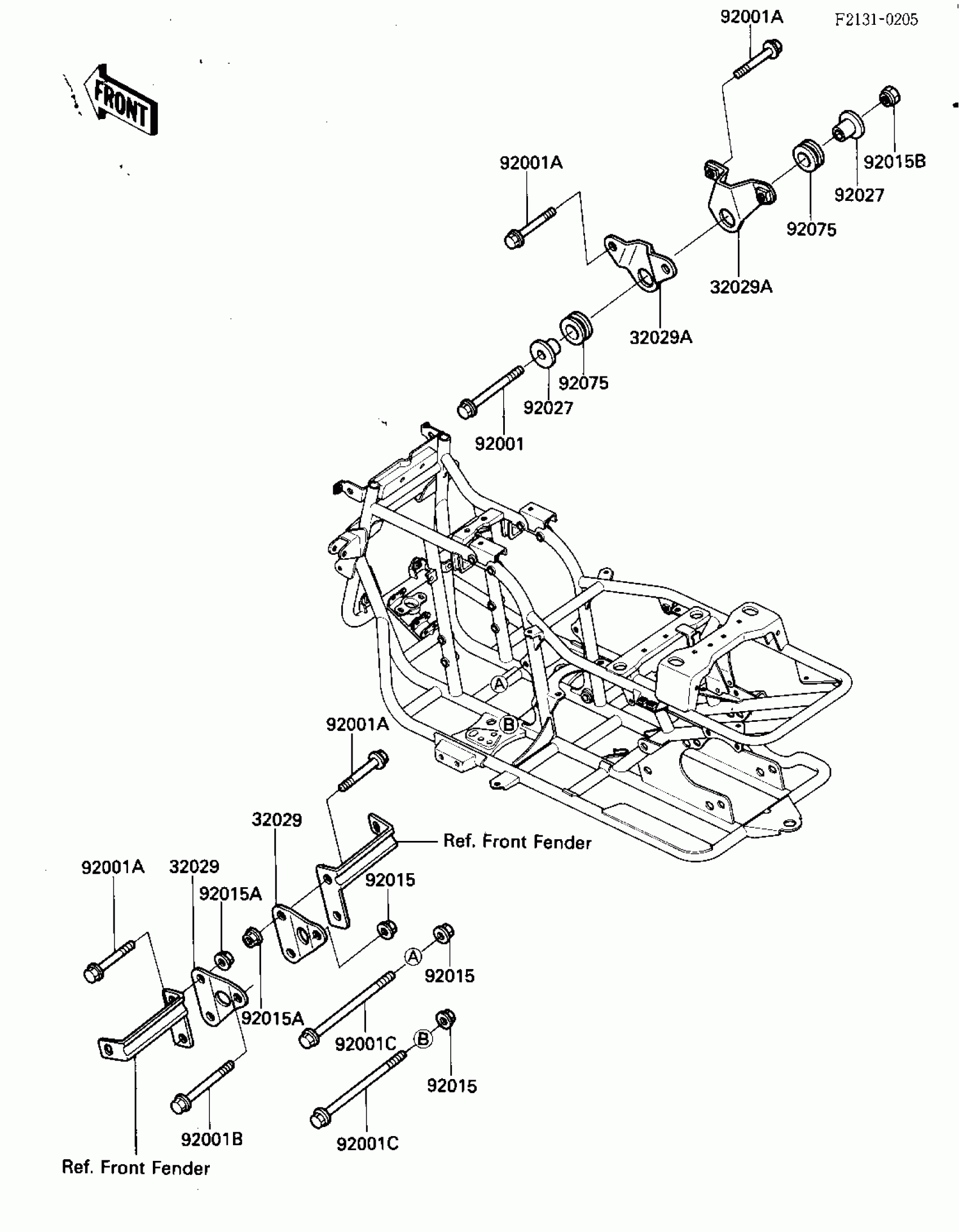

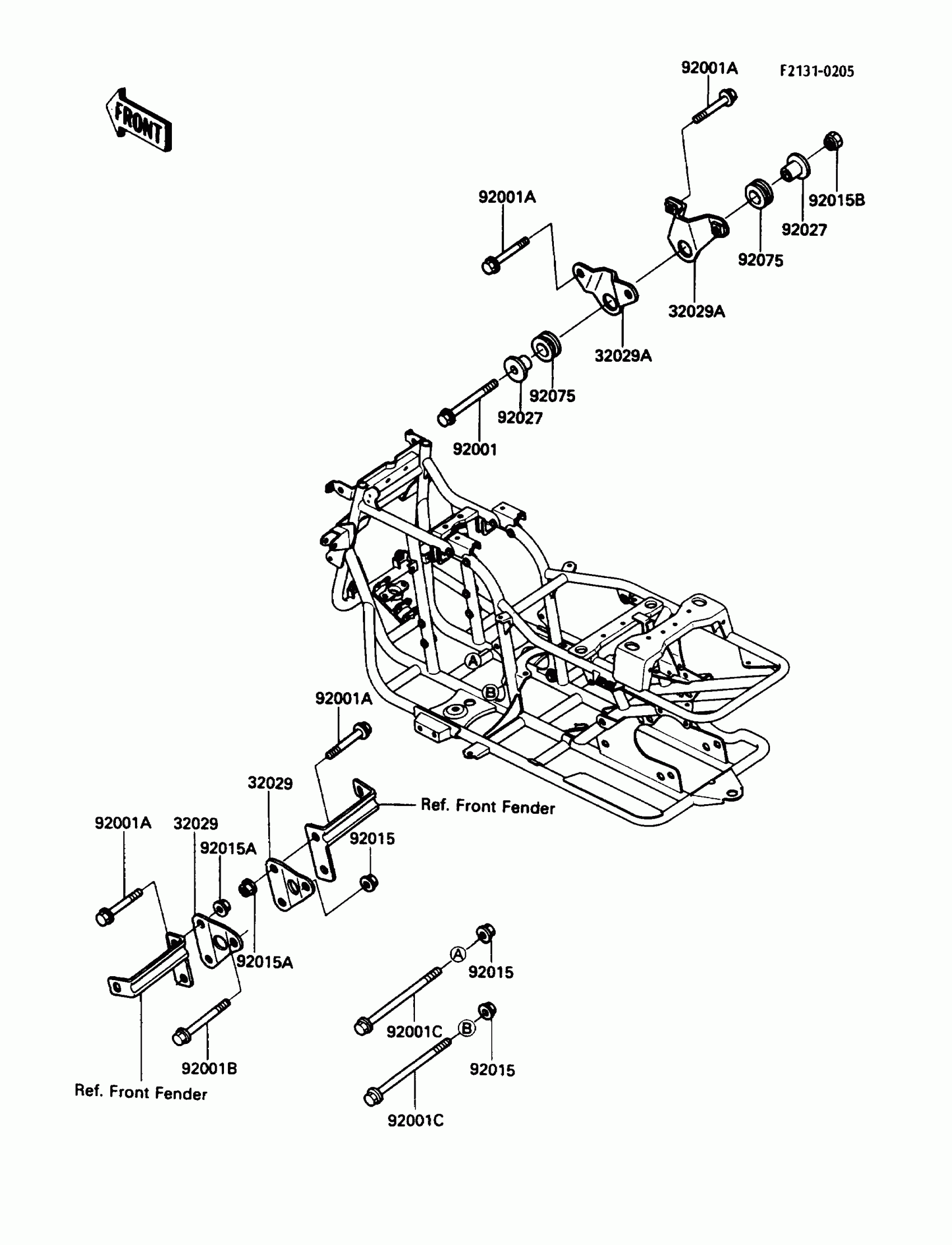

Kawasaki Bayou 185 FRAME FITTINGS Diagram

#

Description
Price

32029

BRACKET-ENGINE,FR

32029-1324

$14.85

32029A

BRACKET-ENGINE,TOP

32029-1381

$15.61

92001

BOLT,FLANGED,8X80,BLA

92001-1640

$3.51

92001A

BOLT,FLANGED,8X55,BLACK

92001-1641

$7.14

92001B

BOLT,FLANGED,10X80

92001-1709

$10.02

92001C

BOLT,FLANGED,10X115,BLACK

92001-1780

$13.64

92015

NUT,FLANGED,10MM

92015-1180

$3.29

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92015B

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92027

COLLAR,L=16.3

92027-1915

$6.08

92075

DAMPER

92075-1086

Unavailable
