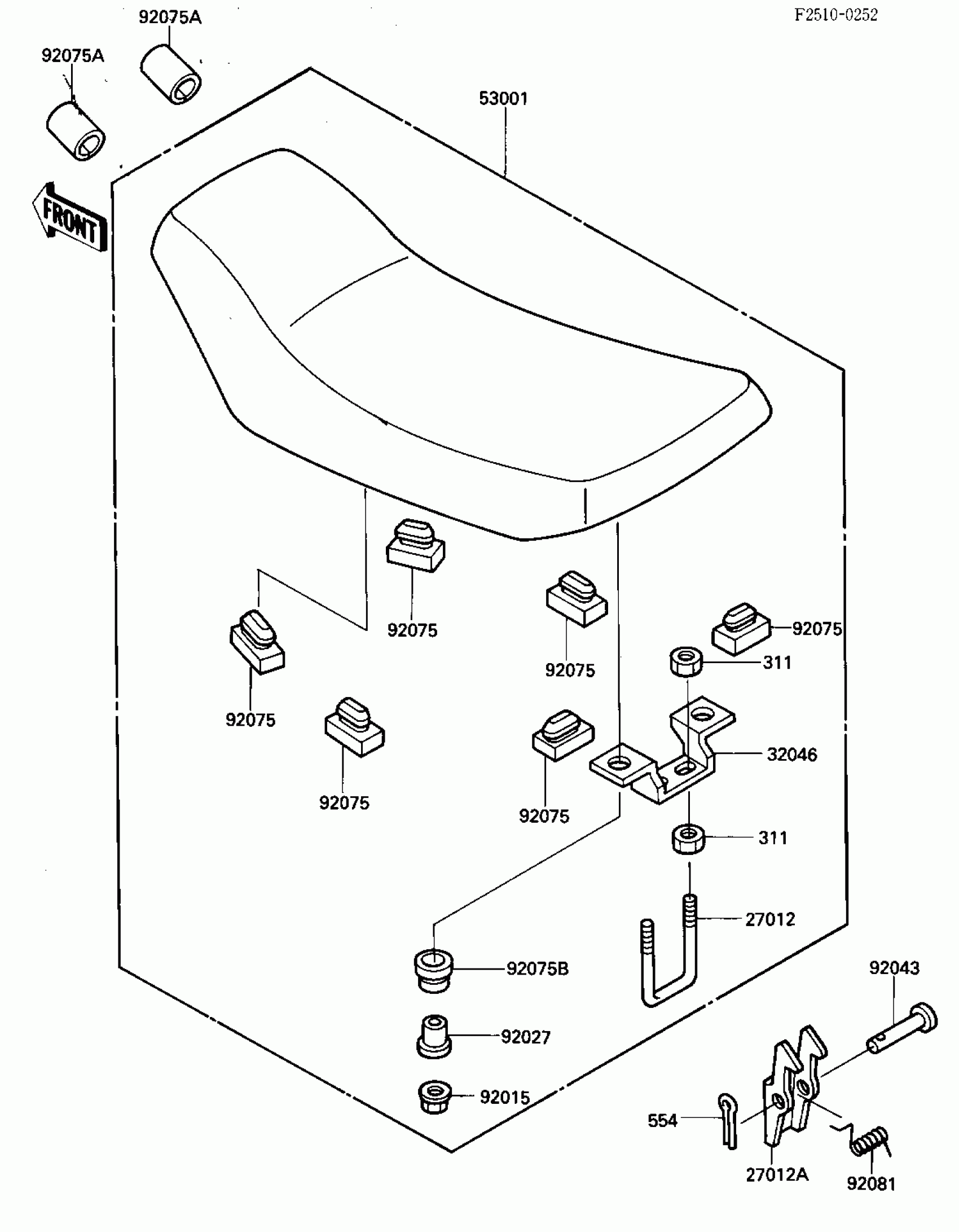

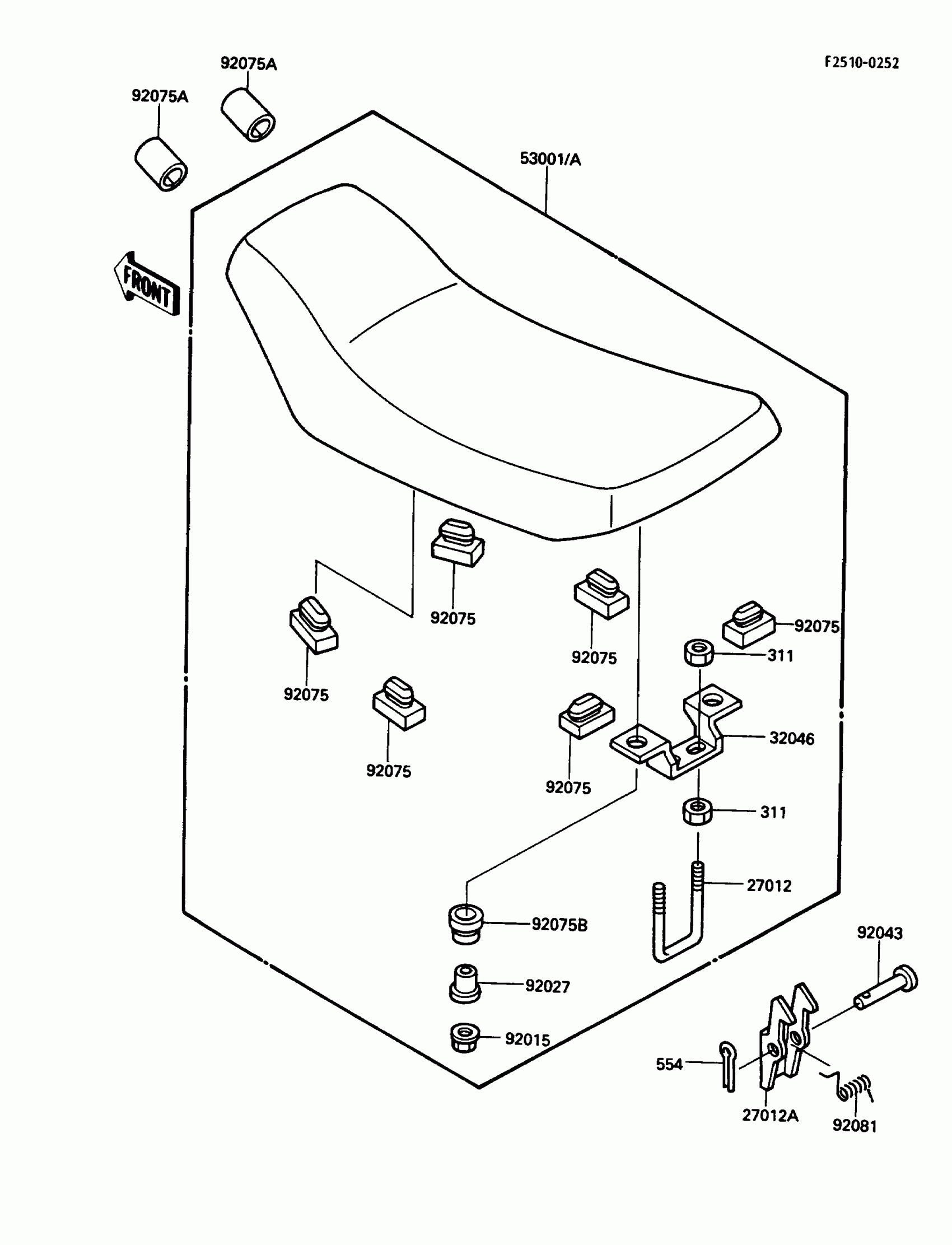

Kawasaki Bayou 185 SEAT Diagram

Description

Price

27012

HOOK,SEAT

27012-1322

Unavailable

27012A

HOOK,SEAT

27012-4009

$9.68

32046

BRACKET-SEAT

32046-1221

Unavailable

53001

SEAT-ASSY

53001-1394

$648.43

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92027

COLLAR,L=12

92027-1062

$7.25

92043

PIN, DUAL SEAT PIVOT

53011-006

$4.61

92075

DAMPER

92075-099

$4.18

92075A

DAMPER,SEAT

92075-1652

$12.47

92075B

DAMPER,SEAT

92075-1699

$6.63

92081

SPRING,SEAT HOOK

92081-1767

Unavailable

311

NUT 6MM

311B0600

Unavailable

554

PIN,SNAP

554A0600

Unavailable
