1988 Kawasaki Bayou 185 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 1988 Kawasaki Bayou 185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

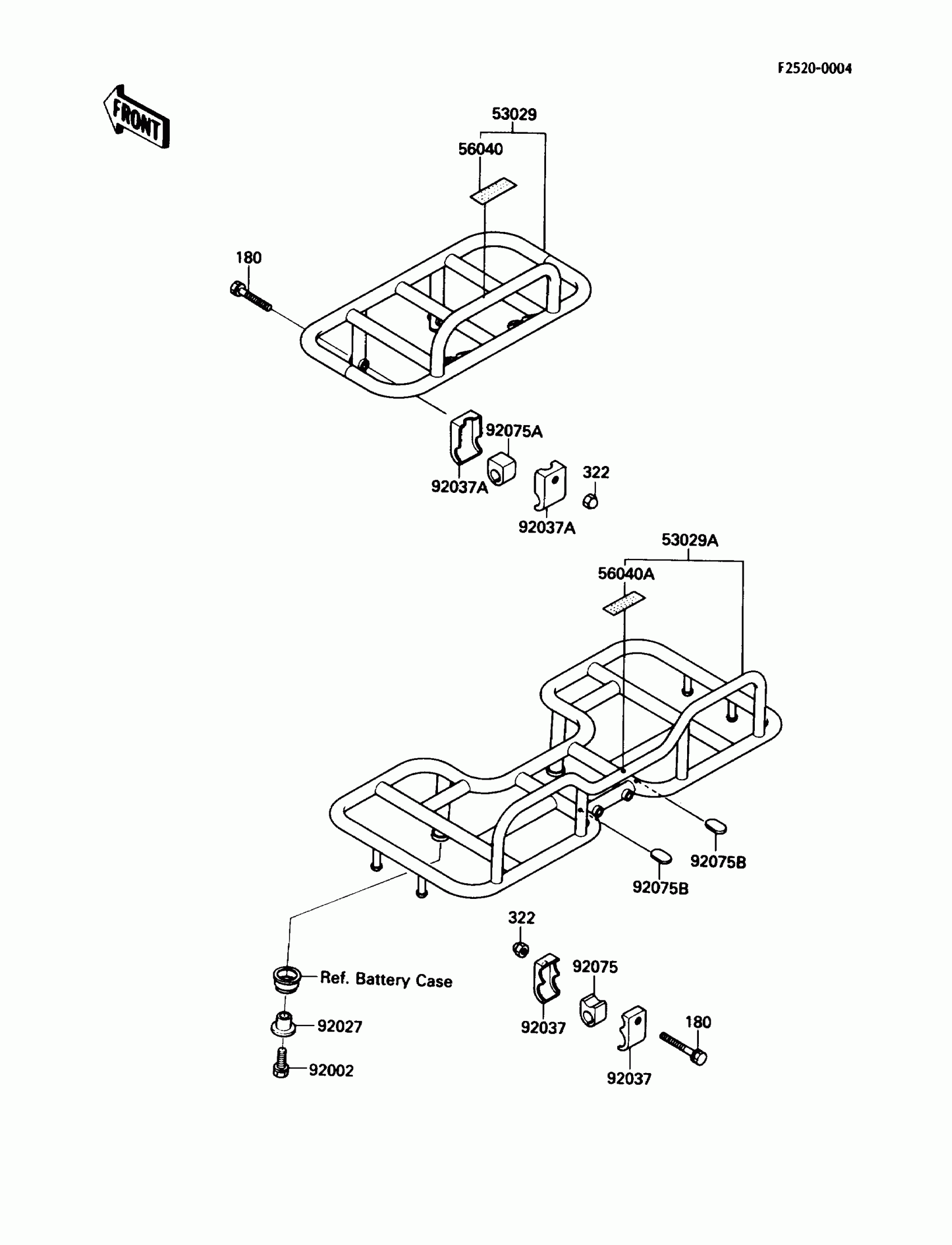

1988 Kawasaki Bayou 185 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53029

CARRIER,FR

53029-1070

1

$207.20

In stock

53029A

CARRIER,RR

53029-1072

1

$268.54

In stock

56040

LABEL-WARNING,MAXIMUM LOAD

56040-1142

1
Out of stock

56040A

LABEL-WARNING,MAXIMUM LOAD

56040-1143

1
Out of stock

92002

BOLT,10X32

92002-1244

1
Out of stock

92027

COLLAR

92027-1895

1
Out of stock

92037

CLAMP,RR CARRIER

92037-1660

1
Out of stock

92037A

CLAMP,FR CARRIER

92037-1661

1
Out of stock

92075

DAMPER,CARRIER

92075-1728

1
Out of stock

92075A

DAMPER,CARRIER

92075-1729

1
Out of stock

92075B

DAMPER

92075-1841

1
Out of stock

180

BOLT-UPSET-WS

180J0640

1
Out of stock

322

NUT-CAP,6MM,BLACK

322C0600

1
Out of stock
