1972 Yamaha AT2M_ATMX (AT2M) Tachometer Diagram

← All diagrams

Find the part on the Tachometer diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

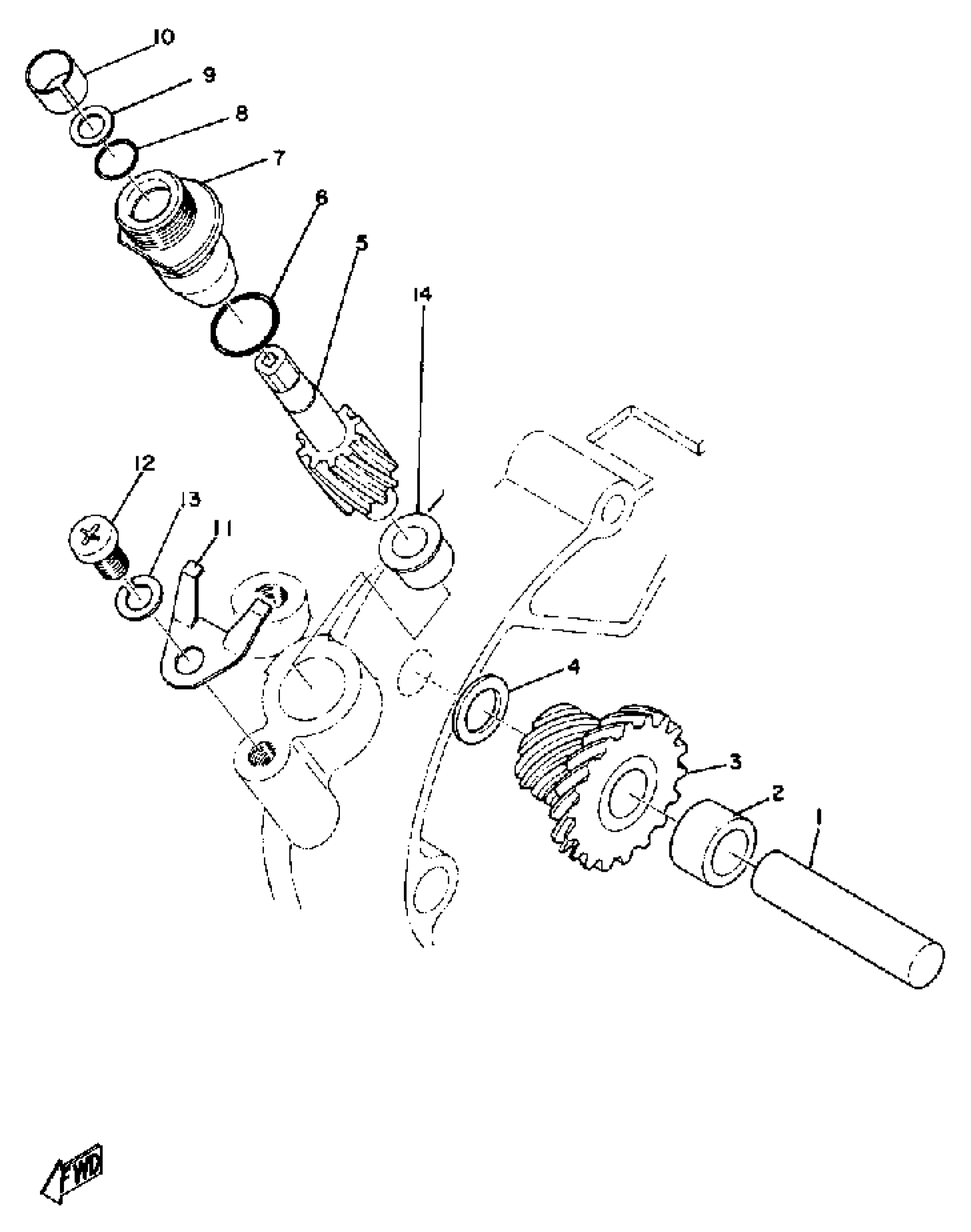

1972 Yamaha AT2M_ATMX (AT2M) Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, DRIVE GEAR

(248-17861-00-00)

1
Out of stock

2

COLLAR 248178390100

90387-10087-00

1

$2.71

In stock

3

GEAR, DRIVE

248-17831-02-00

1
Out of stock

4

SHIM

248-17837-00-00

1
Out of stock

5

GEAR, DRIVEN

(248-17841-00-00)

1
Out of stock

6

O-RING (137)

93210-13016-00

1

$5.78

In stock

7

HOUSING ASSEMBLY, TACH (214-17811-01)

353-17810-00-00

1
Out of stock

8

O-RING (214)

93210-07100-00

1

$5.89

In stock

9

SHIM (7.5-10.8-0.4)

214-17847-00-00

1
Out of stock

10

BUSH, FORMED (214-17815-00) 001

90383-10005-00

1
Out of stock

11

STOPPER

5U7-17812-00-00

1
Out of stock

12

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock
