1972 Yamaha AT2M_ATMX (AT2M) Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

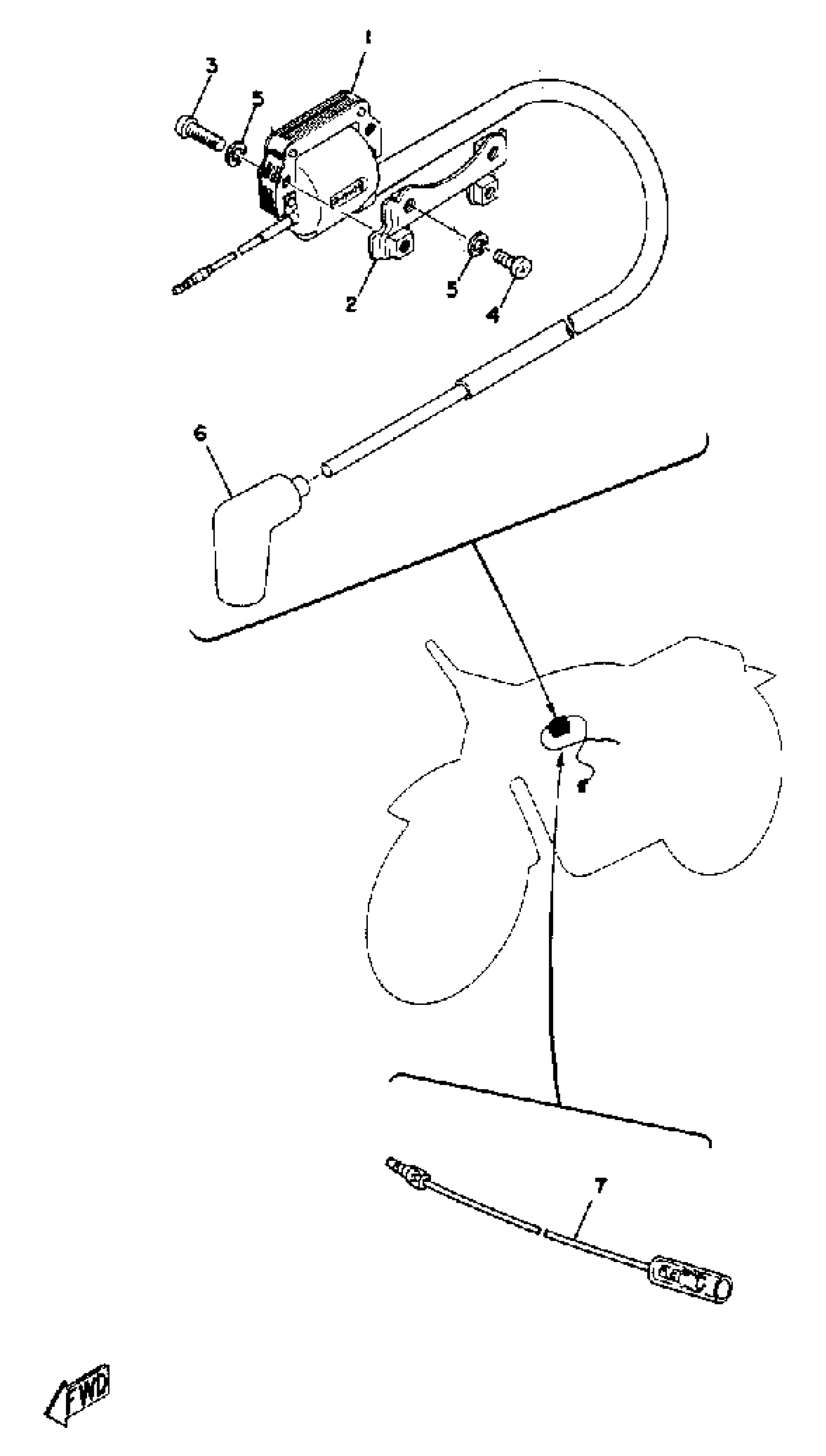

1972 Yamaha AT2M_ATMX (AT2M) Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

304-82310-30-00

1
Out of stock

2

BRACKET, IGNITION COIL

315-82316-00-00

1
Out of stock

3

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

4

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

7

WIRE, SUB LEAD

263-82319-00-00

1
Out of stock
