1972 Yamaha AT2M_ATMX (AT2M) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

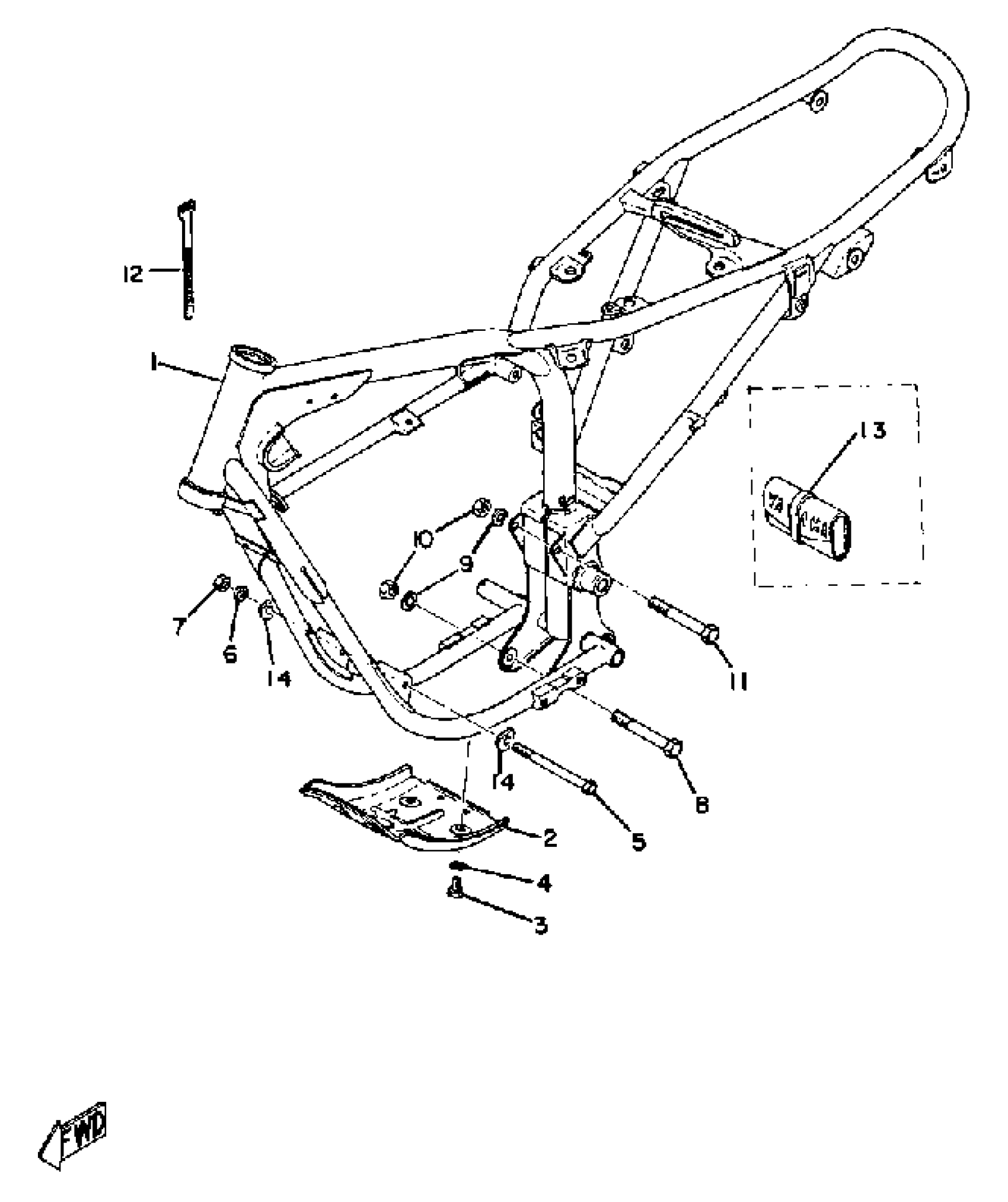

1972 Yamaha AT2M_ATMX (AT2M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(318-21110-00-33)

1
Out of stock

2

PROTECTOR, ENGINE

(248-21471-00-33)

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

BOLT

(90109-08379-00)

1
Out of stock

5

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

BOLT, HEXAGON

97321-10090-00

1
Out of stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

NUT, SELF LOCKING

90185-10031-00

1
Out of stock

11

BOLT,HEXAGON

97027-10095-00

1
Out of stock

12

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

13

TOOL KIT

(315-W2810-10-00)

1
Out of stock

14

WASHER (401)

90209-08050-00

—

$7.75

In stock
