1972 Yamaha AT2M_ATMX (AT2M) Handle - Wire Diagram

← All diagrams

Find the part on the Handle - Wire diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

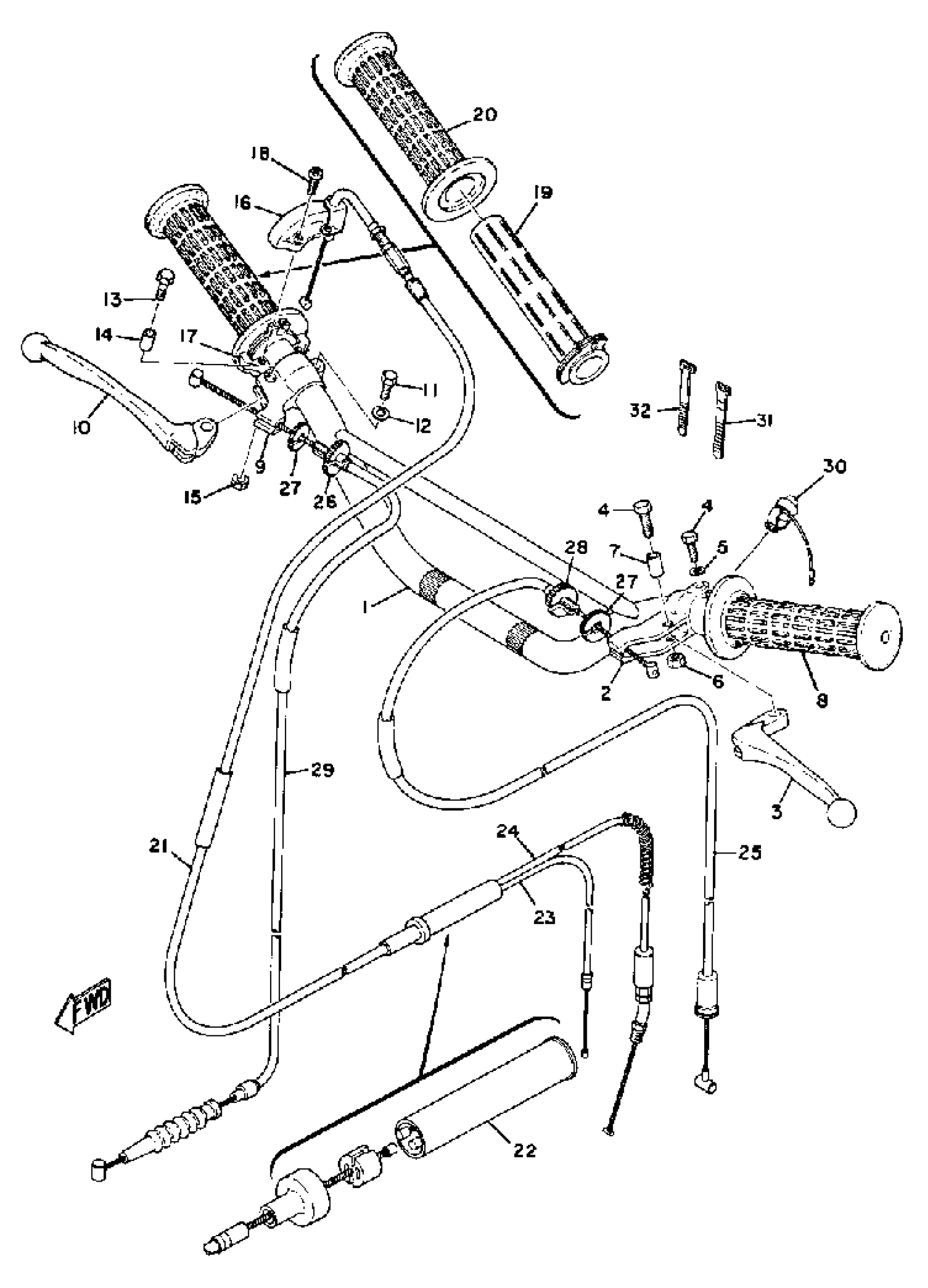

1972 Yamaha AT2M_ATMX (AT2M) Handle - Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

438-26111-00-00

1
Out of stock

2

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

2

LEVER HOLDER ASSY 2

233-82920-32-00

1
Out of stock

3

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

4

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

NUT(650)

95380-06700-00

1

$6.17

In stock

7

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

8

GRIP LH

214-26241-00-00

1
Out of stock

9

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

10

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

11

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

COLLAR, LEVER

214-83913-00-00

1

$6.49

In stock

15

NUT(650)

95380-06700-00

1

$6.17

In stock

16

CAP, GRIP UPPER

214-26281-01-00

1
Out of stock

17

CAP, GRIP LOWER

214-26282-01-00

1
Out of stock

18

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

19

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

20

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

20

GRIP RH

214-26242-00-00

1
Out of stock

21

CABLE, THROTTLE 1

248-26311-01-00

1
Out of stock

22

CONNECTOR, CABLE

214-26261-01-00

—

$10.29

In stock

23

CABLE, THROTTLE 2

248-26312-00-00

1
Out of stock

24

CABLE, PUMP

(318-26321-00-00)

1
Out of stock

25

WIRE, CLUTCH

248-26335-00-00

—
Out of stock

26

BOLT

90123-08002-00

—

$8.93

In stock

27

NUT

90179-08030-00

—

$3.78

In stock

28

BOLT

90123-08002-00

—

$8.93

In stock

29

CABLE, BRAKE

248-26341-00-00

1
Out of stock

29

CABLE, BRAKE

315-26341-00-00

1
Out of stock

30

SWITCH, HANDLE 1

(322-83976-00-00)

1
Out of stock

31

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

32

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock
