1972 Yamaha AT2M_ATMX (AT2M) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

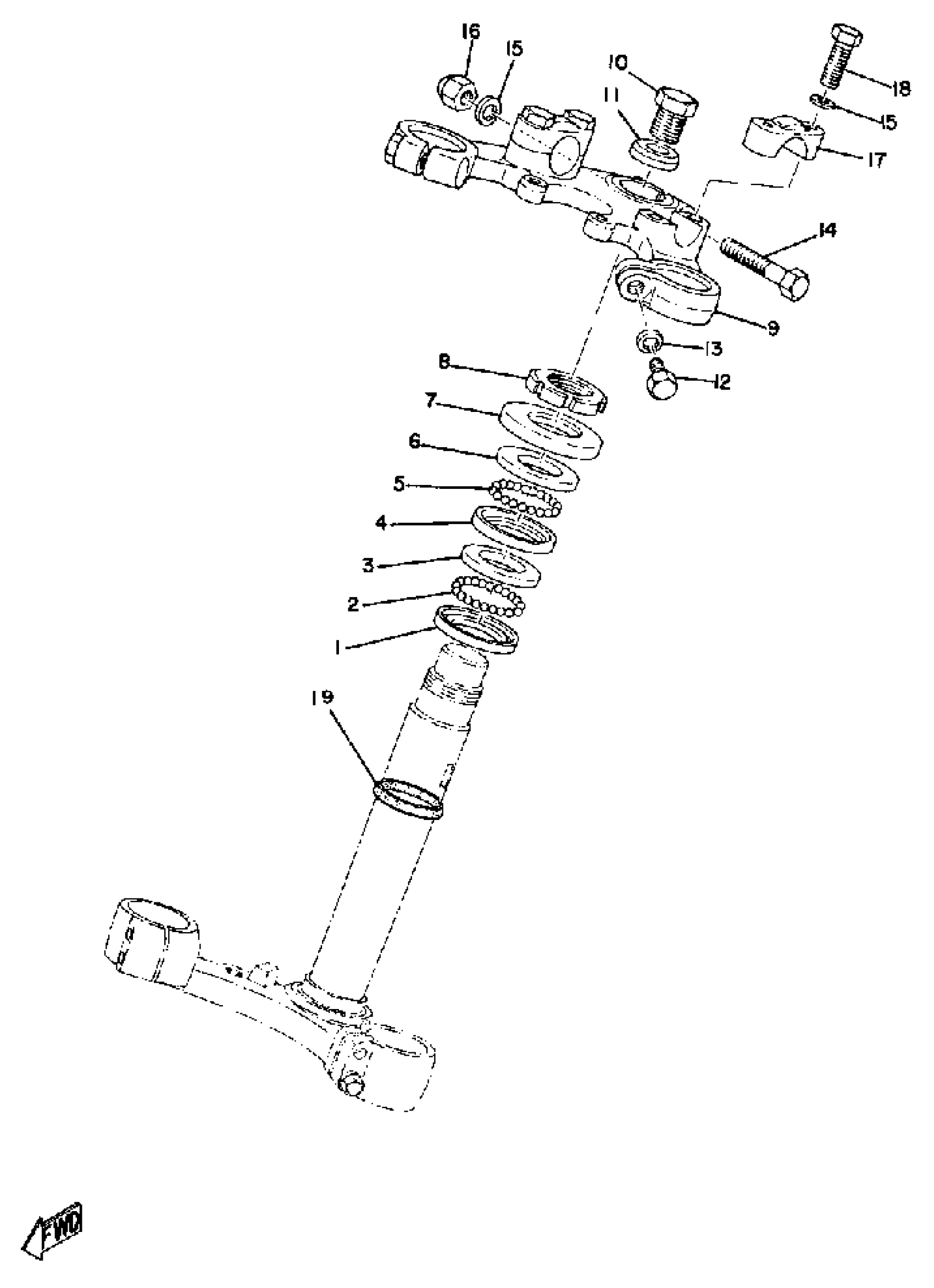

1972 Yamaha AT2M_ATMX (AT2M) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RACE, BALL 1

B6E-23411-00-00

1

$7.02

In stock

2

BALL

93501-04011-00

1
Out of stock

3

RACE, BALL 2

B6E-23412-00-00

1

$9.71

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

7

COVER, BALL RACE

122-23416-00-00

1

$6.40

In stock

8

NUT

90179-25004-00

1

$20.78

In stock

9

CROWN, HANDLE

(248-23435-03-33)

1
Out of stock

10

BOLT

90101-14113-00

1
Out of stock

11

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

12

BOLT (8J7)

97013-10030-00

1

$8.91

In stock

13

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

14

BOLT

97013-08045-00

—
Out of stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

NUT, CROWN

95303-08800-00

—

$7.52

In stock

17

HOLDER, HANDLE UPR

(315-23441-00-93)

1
Out of stock

17

HOLDER, HANDLE UPPER

401-23441-00-98

1
Out of stock

18

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

19

SEAL, DUST

164-23462-00-00

—

$6.42

In stock
