1972 Yamaha AT2M_ATMX (AT2M) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

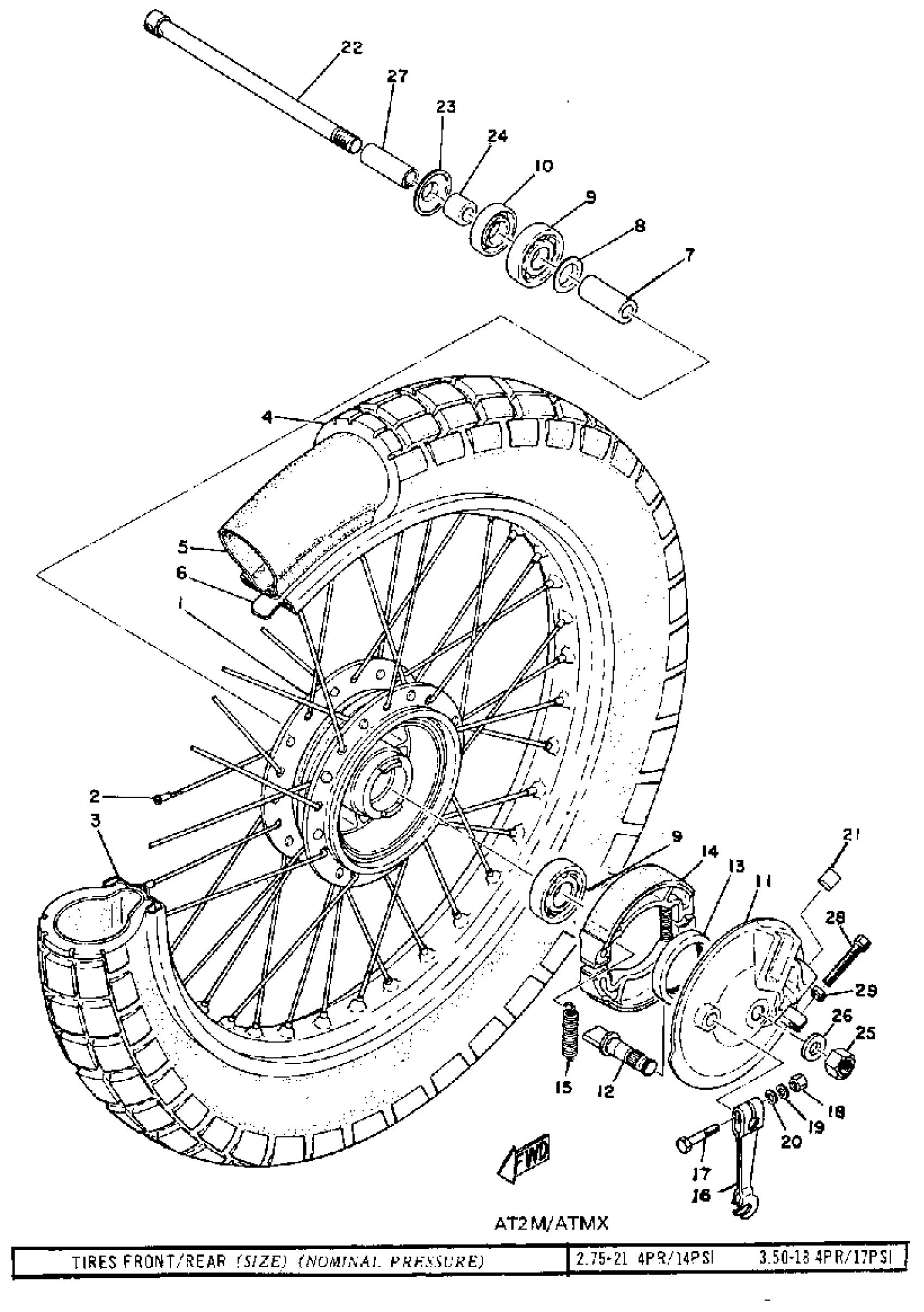

1972 Yamaha AT2M_ATMX (AT2M) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

(248-25104-10-00)

1
Out of stock

2

SPOKE SET, INNER 1

(248-25196-80-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(248-25197-80-00)

1
Out of stock

3

RIM 1.60X21

94416-21223-00

1
Out of stock

4

275X21 BS M7

(94127-21216-00)

1
Out of stock

5

TUBE (2.75-21)(2YY)

94227-21293-00

1
Out of stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

PLATE, BRAKE SHOE

(315-25121-00-00)

1
Out of stock

12

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

13

SEAL,OIL

93105-47007-00

1
Out of stock

14

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

15

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

16

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

17

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

PLUG, TAPER

(90336-18023-00)

1
Out of stock

22

SHAFT, WHEEL

401-25181-01-00

—

$58.12

In stock

23

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

24

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

25

NUT(3DM)

95304-12600-00

—

$6.68

In stock

26

YBS66-12 WASHER,PLAIN

92990-12200-00

—

$6.17

In stock

27

COLLAR

90387-12100-00

1
Out of stock

28

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

29

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

29

NUT (25K)

90179-06411-00

—

$5.10

In stock
