1972 Yamaha AT2M_ATMX (AT2M) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha AT2M_ATMX (AT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

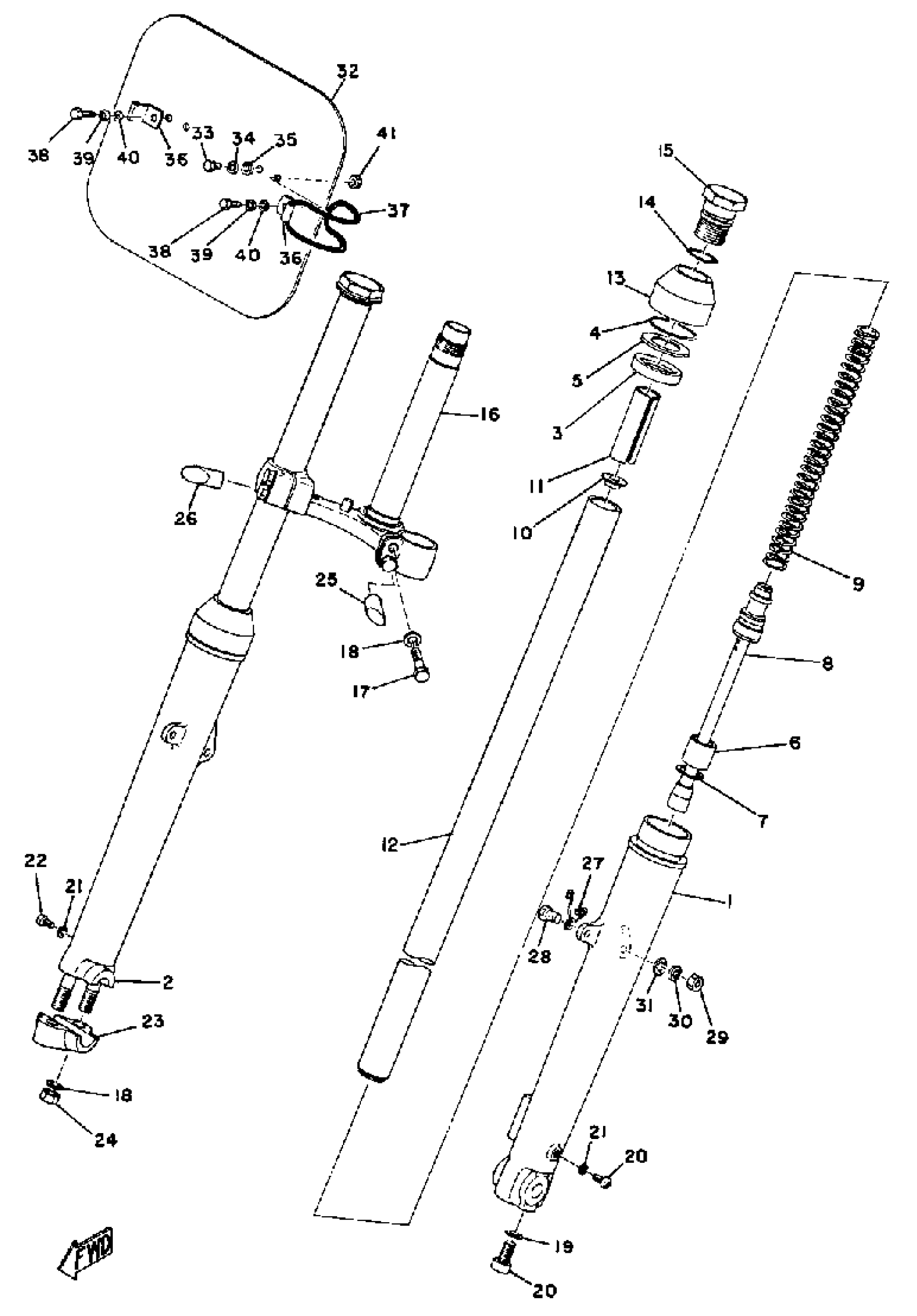

1972 Yamaha AT2M_ATMX (AT2M) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TUBE, OUTER 1

(315-23126-50-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(318-23101-00-00)

1
Out of stock

2

TUBE, OUTER 2

(315-23136-50-00)

1
Out of stock

3

OIL SEAL

137-23145-01-00

1

$38.06

In stock

4

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

5

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

6

PISTON, FRONT FORK

(315-23171-50-00)

1
Out of stock

7

CIRCLIP

(535-23183-01-00)

1
Out of stock

8

CYLINDER, FRTFRK

(315-23170-50-00)

1
Out of stock

9

. SPRING, FRONT FORK

318-23141-00-00

1
Out of stock

10

SEAT, SPRING UPPER

(248-23142-00-00)

1
Out of stock

11

SPACER

(315-23118-50-00)

1
Out of stock

12

TUBE, INNER 1

(315-23124-50-00)

1
Out of stock

13

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

14

PACKING(O-RING)

146-23114-00-00

1
Out of stock

15

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

16

UNDER BRACKET

(248-23340-51-33)

1
Out of stock

17

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

GASKET

(214-23158-00-00)

1
Out of stock

20

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

21

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

22

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

23

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

24

NUT(6L2)

95333-08600-00

—

$3.20

In stock

25

STAY, PLATE FTNG 1

(263-21581-00-00)

1
Out of stock

26

STAY, PLATE FTNG 2

(263-21591-00-00)

1
Out of stock

27

HOLDER, CABLE 2

(318-23319-00-00)

1
Out of stock

28

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

29

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

32

PLATE, NUMBER

(263-23485-00-00)

1
Out of stock

33

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

WASHER, PLATE

90201-06086-00

—
Out of stock

36

STAY, PLATE

(318-23487-00-00)

1
Out of stock

37

O-RING (802)

93210-99103-00

—
Out of stock

38

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

39

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

40

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

41

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
