1969 Yamaha AS2C (AS2C) Fuel Tank Diagram

← All diagrams

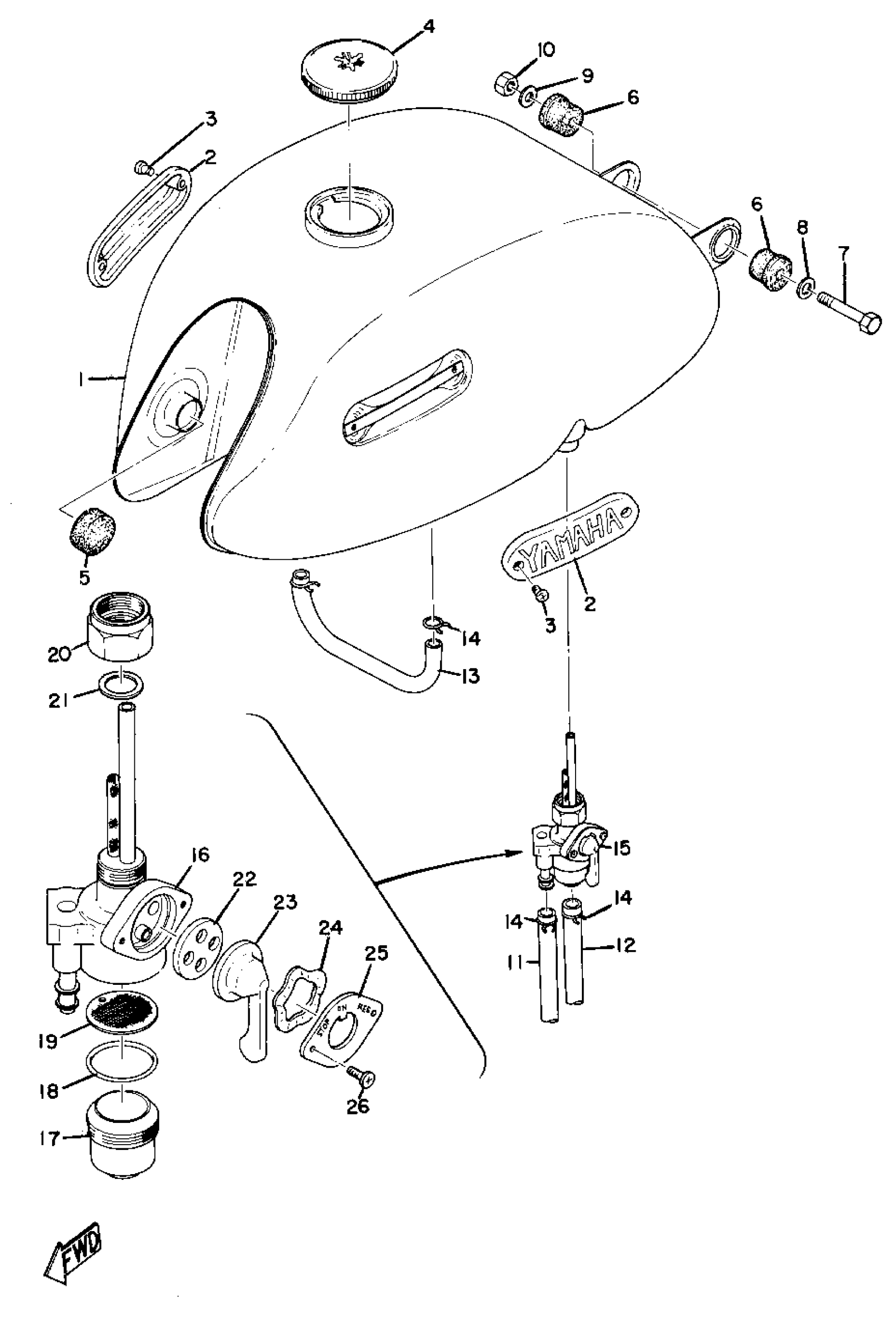

Find the part on the Fuel Tank diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha AS2C (AS2C) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(245-24110-00-05)

1
Out of stock

1

FUEL TANK

(245-24110-00-X4)

1
Out of stock

2

EMBLEM 1

132-24161-00-00

1
Out of stock

3

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

4

CAP ASSY

122-24610-01-00

1

$19.48

In stock

5

DAMPER, LOCATING(1)

122-24181-00-00

1

$6.48

In stock

6

DAMPER, LOCATING 1

(137-24181-00-00)

1
Out of stock

7

BOLT

(90109-06026-00)

1
Out of stock

8

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

9

WASHER PLATE 137241870000

90201-06072-00

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

12

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

13

HOSE (L420)

90445-092K1-00

1

$10.63

In stock

14

CLIP 101235600

90467-08003-00

1

$6.13

In stock

15

FUEL COCK ASSEMBLY 1

132-24500-02-00

1
Out of stock

17

. CUP, FILTER

1A0-24521-01-00

1
Out of stock

18

GASKET, FILTER

498-24522-00-00

—

$33.15

In stock

19

. NET, FILTER 2

304-24515-00-00

1
Out of stock

20

. NUT

132-24531-00-00

1
Out of stock

21

GASKET, FUEL COCK

434-24532-00-00

—

$8.37

In stock

22

VALVE

137-24523-00-00

—

$6.57

In stock

23

. LEVER, COCK

168-24524-00-00

1
Out of stock

24

WASHER, WAVE

132-24518-00-00

—
Out of stock

25

PLATE, LEVER FITTING

(132-24525-01-00)

1
Out of stock

26

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock
