1969 Yamaha AS2C (AS2C) Carburetor Diagram

← All diagrams

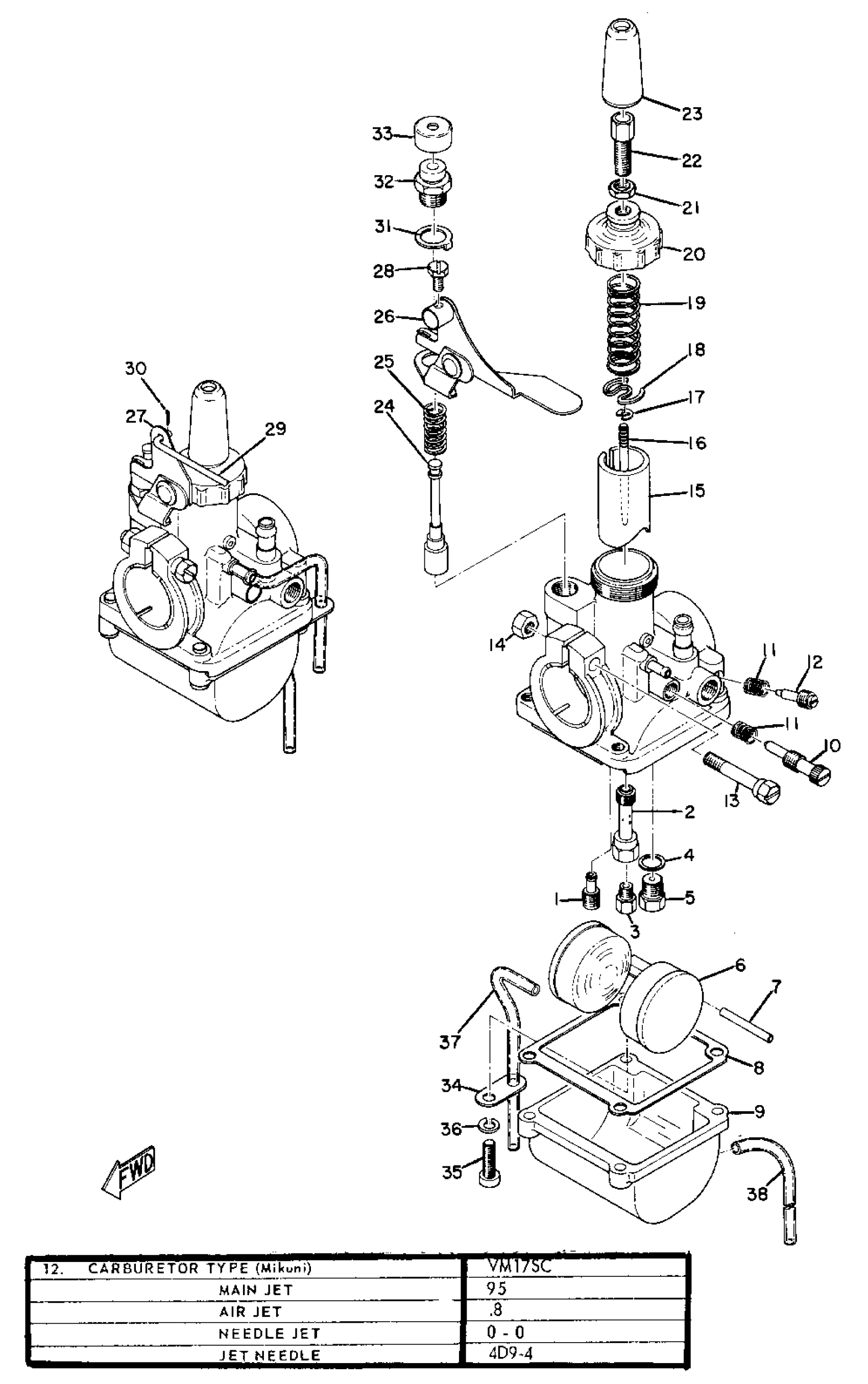

Find the part on the Carburetor diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha AS2C (AS2C) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JET, PILOT (# 17.5)

193-14142-17-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(218-14101-61-00)

1
Out of stock

2

NOZZLE, MAIN

(164-14141-30-00)

1
Out of stock

2

CARBURETOR ASSEMBLY 2

(218-14102-61-00)

1
Out of stock

3

JET, MAIN #75

(137-14143-15-00)

1
Out of stock

3

. JET, MAIN #85

137-14143-17-00

1
Out of stock

3

. JET, MAIN #95

137-14143-19-00

1
Out of stock

3

JET, MAIN #100

137-14143-20-00

—

$7.34

In stock

3

JET, MAIN #110

137-14143-22-A0

1
Out of stock

4

WASHER, VALVE SEAT

127-14195-00-00

1

$6.40

In stock

5

VALVE SEAT ASSY

353-14190-15-00

—

$36.18

In stock

6

. FLOAT

164-14185-00-00

1
Out of stock

7

PIN, FLOAT

127-14186-00-00

1

$6.23

In stock

8

GASKET, FLOAT CHAMBER

164-14184-00-00

1

$14.25

In stock

9

BODY, FLOAT CHMBR 1

(174-14181-01-00)

1
Out of stock

10

THROTTLE SCREW SET

53L-14103-00-00

—
Out of stock

11

SPRING, AIR ADJUSTING

174-14134-00-00

—

$6.72

In stock

12

AIR SCREW SET

22K-14104-00-00

—

$9.95

In stock

13

. SCREW, BODY FITTING

127-14125-01-00

1
Out of stock

14

NUT, HOLDING

(127-14164-00-00)

1
Out of stock

15

VALVE, THROTTLE 1

(183-14112-20-00)

1
Out of stock

15

VALVE, THROTTLE 2

(183-14113-20-00)

1
Out of stock

16

NEEDLE

(134-14116-12-00)

1
Out of stock

16

NEEDLE

(156-14116-09-00)

1
Out of stock

17

CLIP

3FA-14137-00-00

—

$6.80

In stock

18

SEAT, SPRING

212-14136-00-00

—

$7.86

In stock

19

SPRING, THROTTLE VALVE

174-14131-01-00

—

$6.83

In stock

20

TOP, MIXING CHAMBER

(174-14158-01-00)

1
Out of stock

21

NUT, WIRE ADJUSTING

127-14161-00-00

—

$7.20

In stock

22

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

23

CAP

(174-14169-01-00)

1
Out of stock

24

. PLUNGER, STARTER

174-14171-00-00

1
Out of stock

25

SPRING, PLUNGER

132-14135-00-00

—

$4.57

In stock

25

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

26

LEVER, STARTER 1

(183-14175-01-00)

1
Out of stock

27

LEVER, STARTER 2

(183-14176-00-00)

1
Out of stock

28

SCREW, ROD

(193-14486-00-00)

1
Out of stock

29

ROD, STARTER LEVER

(132-14177-00-00)

1
Out of stock

30

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

31

PLATE, STARTER LVR

(174-14178-00-00)

1
Out of stock

32

CAP, PLUNGER

(132-14174-00-00)

1
Out of stock

33

COVER, PLUNGER CAP

132-14173-00-00

—

$8.70

In stock

34

PLATE

132-14146-00-00

—

$6.65

In stock

35

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

36

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

37

PIPE, AIR VENT

183-14197-01-00

—
Out of stock

38

PIPE

23F-14197-00-00

—

$24.11

In stock
