1969 Yamaha AS2C (AS2C) AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

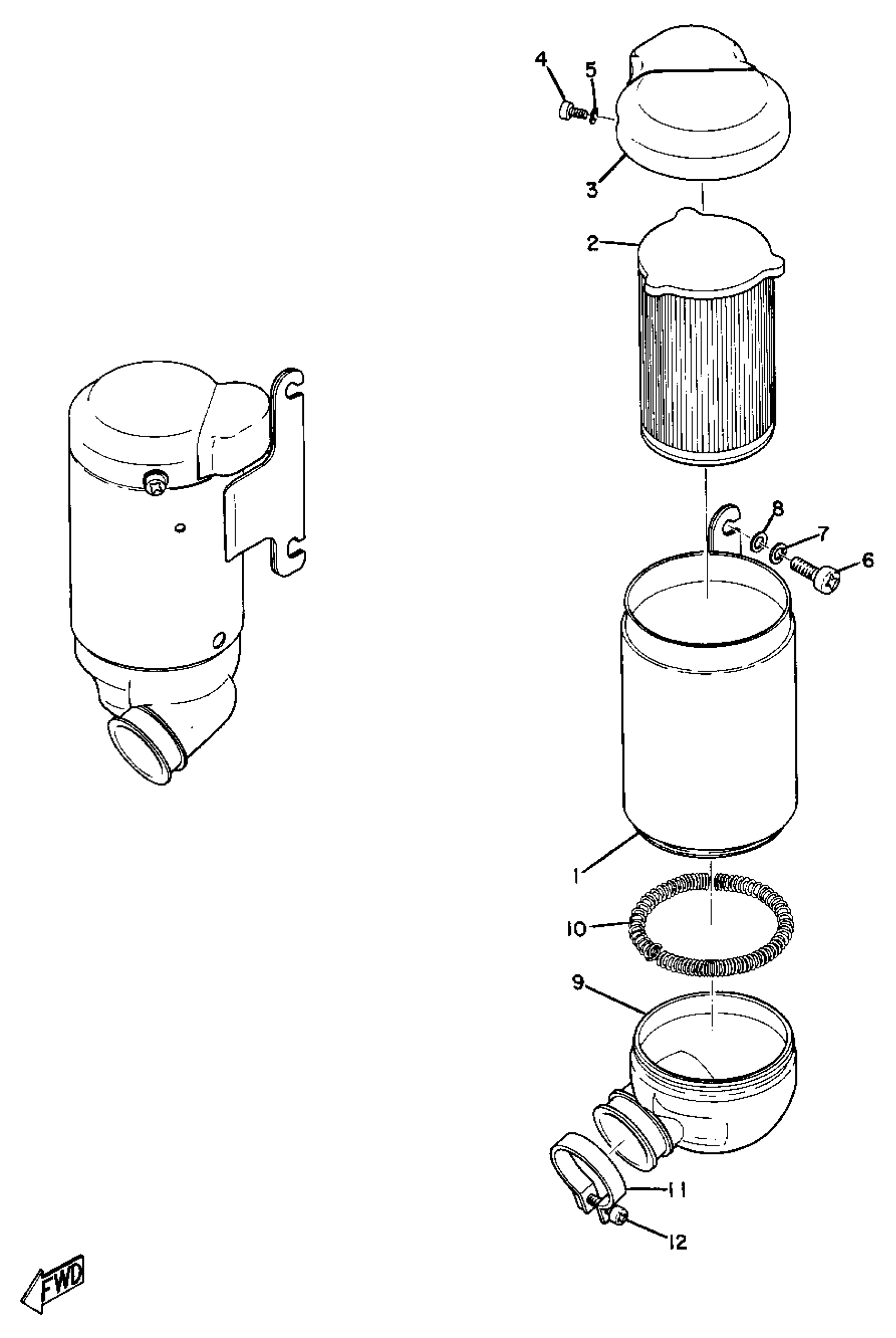

1969 Yamaha AS2C (AS2C) AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(183-14411-02-00)

1
Out of stock

1

CASE, AIR CLEANER 2

(183-14421-01-00)

1
Out of stock

2

ELEMENT, AIR CLNR

(183-14451-02-00)

1
Out of stock

3

CAP, CLEANER CASE 1

(183-14412-09-00)

1
Out of stock

3

CAP, CLEANER CASE 2

(183-14422-09-00)

1
Out of stock

4

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

5

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

JOINT, AIR CLNR 1

(183-14453-00-00)

1
Out of stock

9

JOINT, AIR CLNR 2

(183-14463-00-00)

1
Out of stock

10

SPRING, TENSION

(90506-06084-00)

1
Out of stock

11

CLAMP, HOSE

(90460-37051-00)

1
Out of stock

12

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock
