1969 Yamaha AS2C (AS2C) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

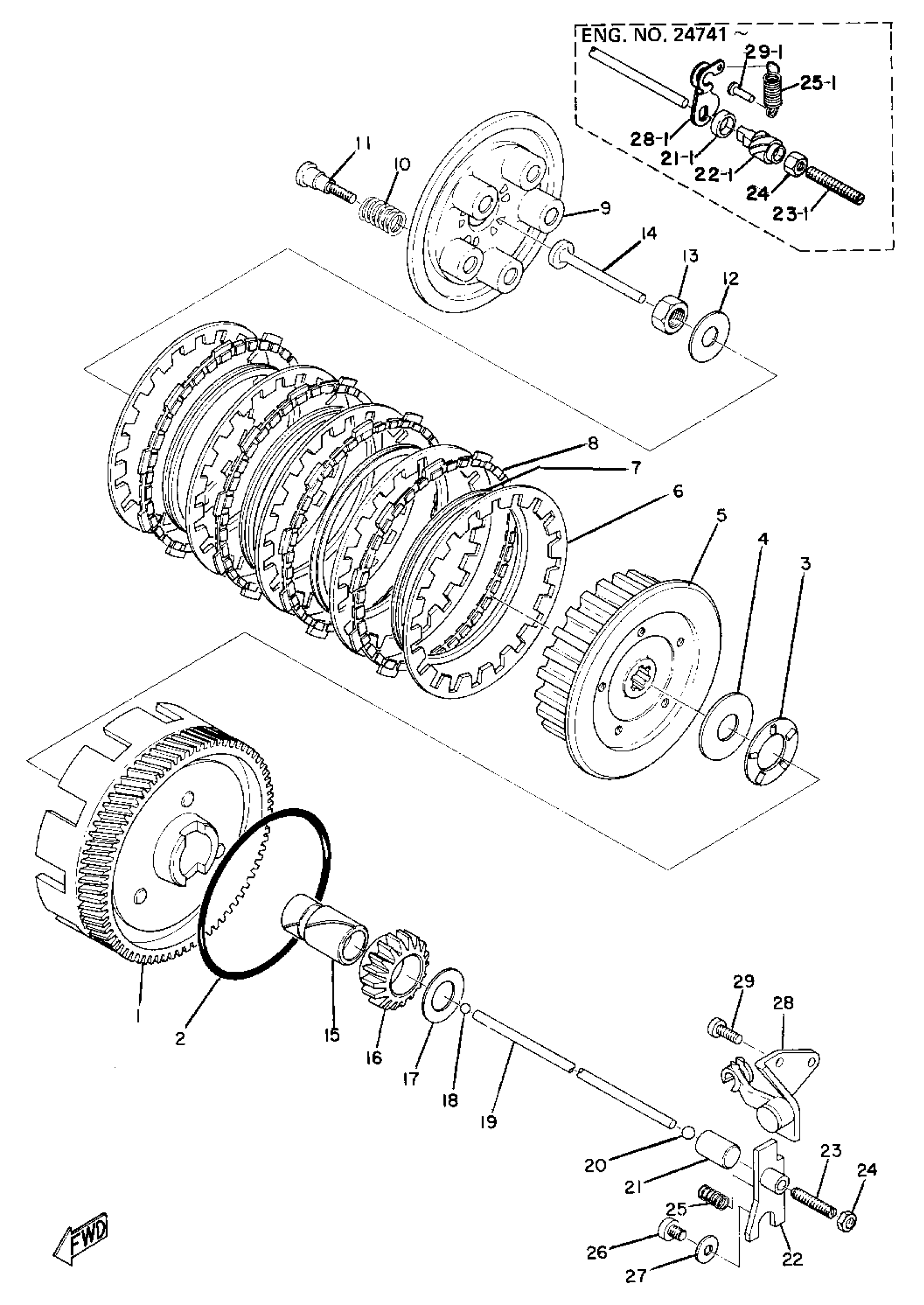

1969 Yamaha AS2C (AS2C) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOOK, SPRING

132-16346-00-00

1
Out of stock

1

PRI DRVN GEAR

(183-16150-00-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(183-16301-01-00)

1
Out of stock

1

SCREW, PUSH

241-16341-01-00

1
Out of stock

1

LEVER, PUSH

241-16342-00-00

1

$6.31

In stock

1

BOLT SET 241163430000

90113-06013-00

1
Out of stock

1

1

$5.72

In stock

1

OIL SEAL (9X15X4-256)

93104-09025-00

1

$5.46

In stock

2

RING, FRICTION

132-16369-00-00

1

$8.78

In stock

3

. BEARING, FLAT #41

93341-22302-00

1
Out of stock

4

PLATE, THRUST

131-16154-00-00

—

$7.15

In stock

5

. BOSS, CLUTCH

132-16371-02-00

1
Out of stock

6

PLATE, CLUTCH 1

336-16324-10-00

1

$17.51

In stock

7

RING, CUSHION

137-16367-00-00

1

$14.80

In stock

8

PLATE, FRICTION

3HA-16321-00-00

1

$26.75

In stock

9

PLATE, PRESSURE

132-16351-00-00

—

$50.51

In stock

10

SPRING (137-16333-00)

90501-20122-00

—
Out of stock

11

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

12

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

13

NUT, HEXAGON 1371637700

90170-12060-00

—

$8.29

In stock

14

ROD,PUSH (1)

137-16356-00-00

—

$28.05

In stock

15

SPACER

(90560-17158-00)

1
Out of stock

16

GEAR, KICK PINION

(132-15631-00-00)

1
Out of stock

17

PLATE, THRUST

122-16164-00-00

—

$7.08

In stock

18

BALL

93501-04011-00

—
Out of stock

19

ROD, PUSH 2

183-16357-00-00

1
Out of stock

20

BALL

93505-16006-00

—

$2.22

In stock

21

CROWN, PUSH

(174-16348-00-00)

1
Out of stock

22

LEVER, PUSH 2

(174-16362-00-00)

1
Out of stock

23

BOLT SET 241163430000

90113-06013-00

1
Out of stock

24

NUT(650)

95380-06700-00

—

$6.17

In stock

25

SPRING, COMPRESSION

(90501-08037-00)

1
Out of stock

26

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

27

WASHER, PLATE

(90201-06054-00)

1
Out of stock

28

PUSH LEVER ASSEMBLY

(174-16340-00-00)

1
Out of stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock
