1969 Yamaha AS2C (AS2C) Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

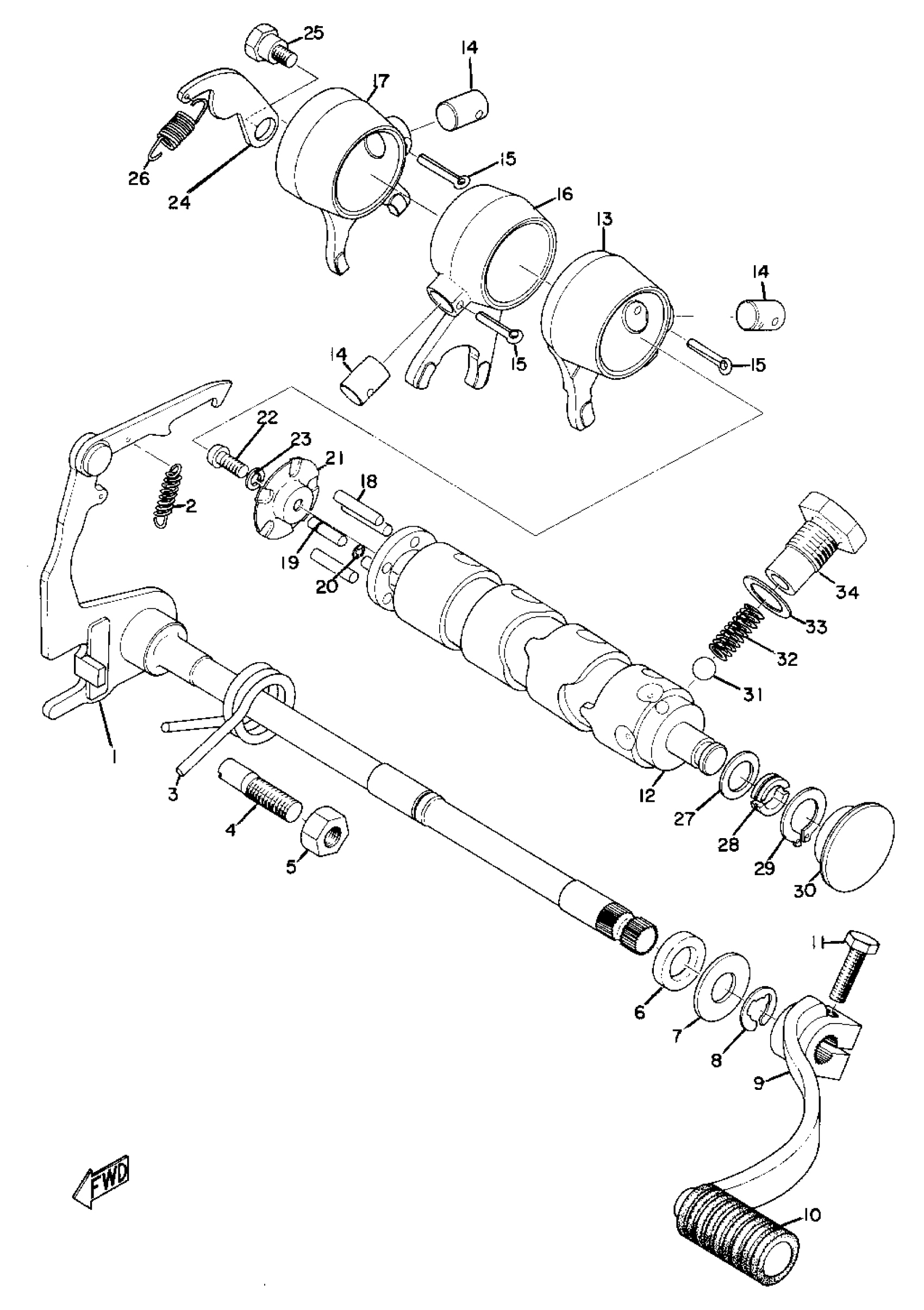

1969 Yamaha AS2C (AS2C) Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

(183-18101-01-00)

1
Out of stock

1

SHIFTER ASSEMBLY

(183-18500-02-00)

1
Out of stock

2

—

$6.68

In stock

3

SPRING TORSION 132181240000

90508-32207-00

1
Out of stock

4

SCREW, ADJUSTING (367)

90149-08094-00

1

$4.91

In stock

5

NUT(6L2)

95333-08600-00

1

$3.20

In stock

6

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

7

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

PEDAL, SHIFT

173-18111-01-93

1
Out of stock

10

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

11

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

12

CAM, SHIFT

(183-18541-02-00)

1
Out of stock

13

FORK, SHIFT 1

(183-18511-00-00)

1
Out of stock

14

PIN, STRAIGHT

(90250-10020-00)

1
Out of stock

15

PIN, COTTER

91490-25020-00

—

$2.94

In stock

16

FORK, SHIFT 2

(183-18512-00-00)

1
Out of stock

17

FORK, SHIFT 3

(183-18513-00-00)

1
Out of stock

18

PIN,DOWEL (620)

93604-22050-00

—

$6.68

In stock

19

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

20

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

21

PLATE, SIDE

164-18561-00-00

—

$5.42

In stock

22

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

23

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

24

STOPPER LEVER ASSY

132-18140-01-00

—

$14.20

In stock

25

BOLT

90109-06239-00

—

$5.77

In stock

26

SPRING, TENSION (260)

90506-09112-00

—
Out of stock

27

WASHER PLATE 164185720000

90201-12166-00

—

$6.29

In stock

28

HOLDER, SHIFT CAM

307-18571-00-00

1
Out of stock

29

CIRCLIP

93440-15012-00

—
Out of stock

30

PLUG, BLIND

(307-18533-00-00)

1
Out of stock

31

BALL

93505-16006-00

—

$2.22

In stock

32

SPRING, COMPRESION

90501-12750-00

1
Out of stock

33

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

34

BOLT

90109-14385-00

—

$13.66

In stock
