1969 Yamaha AS2C (AS2C) Transmission Diagram

← All diagrams

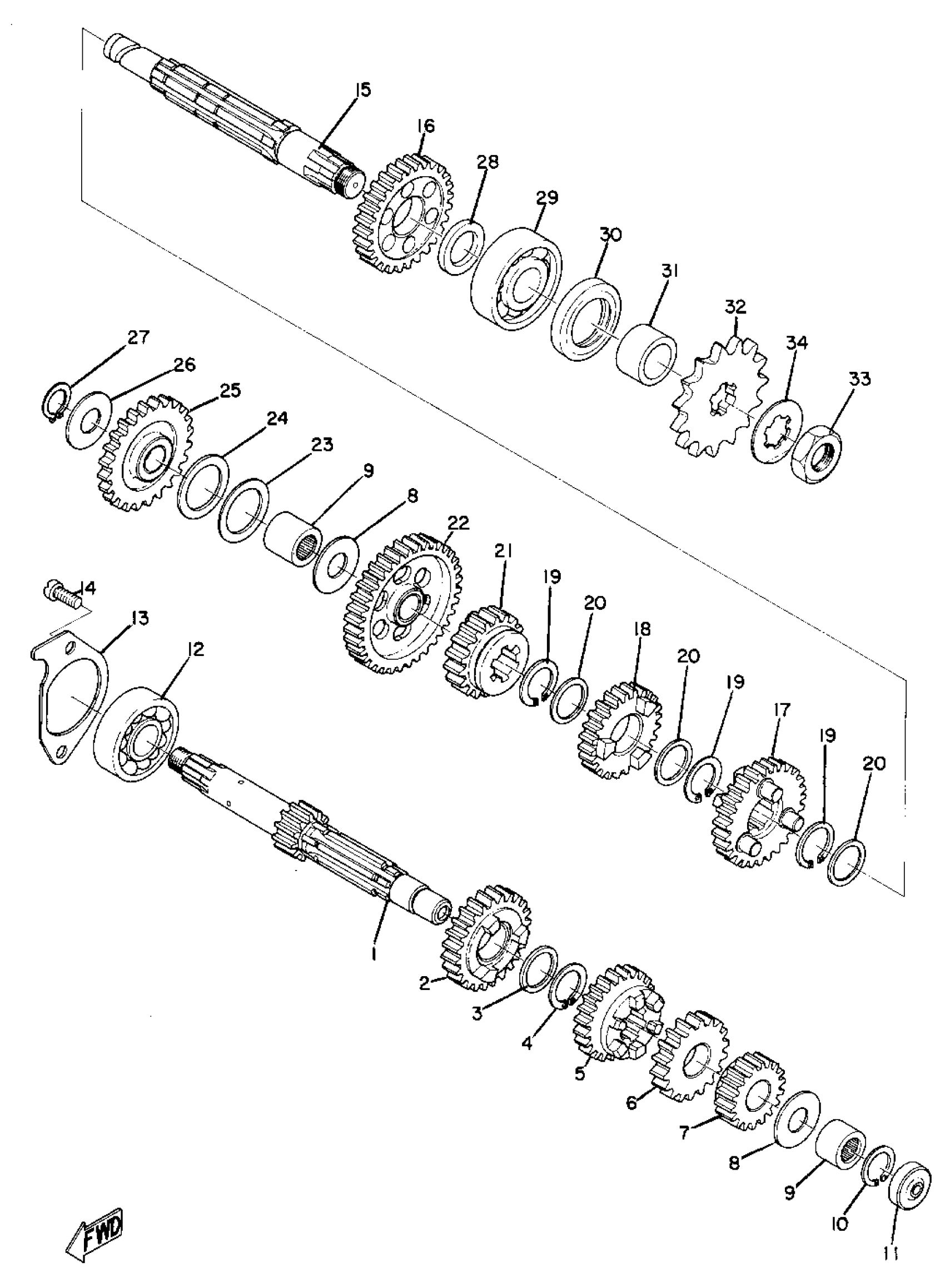

Find the part on the Transmission diagram for your 1969 Yamaha AS2C (AS2C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha AS2C (AS2C) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

(183-17411-00-00)

1
Out of stock

2

GEAR, 5TH PINION

(183-17151-00-00)

1
Out of stock

2

DRIVE AXLE ASSEMBLY

(183-17402-00-00)

1
Out of stock

3

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

GEAR, 4TH PINION

(183-17141-00-00)

1
Out of stock

6

GEAR, 3RD PINION

(183-17131-00-00)

1
Out of stock

7

GEAR, 2ND PINION

(183-17121-01-00)

1
Out of stock

8

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

9

BEARING, CYLINDER.#15

(93315-31501-00)

1
Out of stock

9

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

1
Out of stock

10

CIRCLIP, R-TYPE

93420-22026-00

1
Out of stock

11

SEAL, PUSH ROD (3V6)

93109-06060-00

1

$7.51

In stock

12

BRG,R-B 6303 47MM 115G NK

93306-30302-00

1

$39.88

In stock

13

PLATE, COVER

(257-17471-01-00)

1
Out of stock

14

SCREW, PAN

98507-06014-00

—

$6.18

In stock

15

AXLE, DRIVE

(183-17421-00-00)

1
Out of stock

16

GEAR, 2ND WHEEL

(183-17221-01-00)

1
Out of stock

17

GEAR, 3RD WHEEL

(183-17231-00-00)

1
Out of stock

18

GEAR, 4TH WHEEL

(183-17241-00-00)

1
Out of stock

19

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

20

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

21

GEAR, 5TH WHEEL

(183-17251-00-00)

1
Out of stock

22

GEAR, 1ST WHEEL

(307-17211-01-00)

1
Out of stock

23

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

24

WASHER, WAVE

(131-15643-00-00)

1
Out of stock

25

GEAR, KICK IDLE

(183-15651-00-00)

1
Out of stock

26

SHIM, DRIVE AXLE

164-17427-00-06

1

$5.15

In stock

27

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

28

SPACER

90560-20038-00

1
Out of stock

29

—

$54.91

In stock

30

OIL SEAL

93106-28043-00

—

$11.88

In stock

31

COLLAR

90387-20346-00

1
Out of stock

32

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

—
Out of stock

32

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

—
Out of stock

32

—

$18.58

In stock

33

NUT,SPEC'L SHAPE

90179-16018-00

—

$11.26

In stock

34

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock
