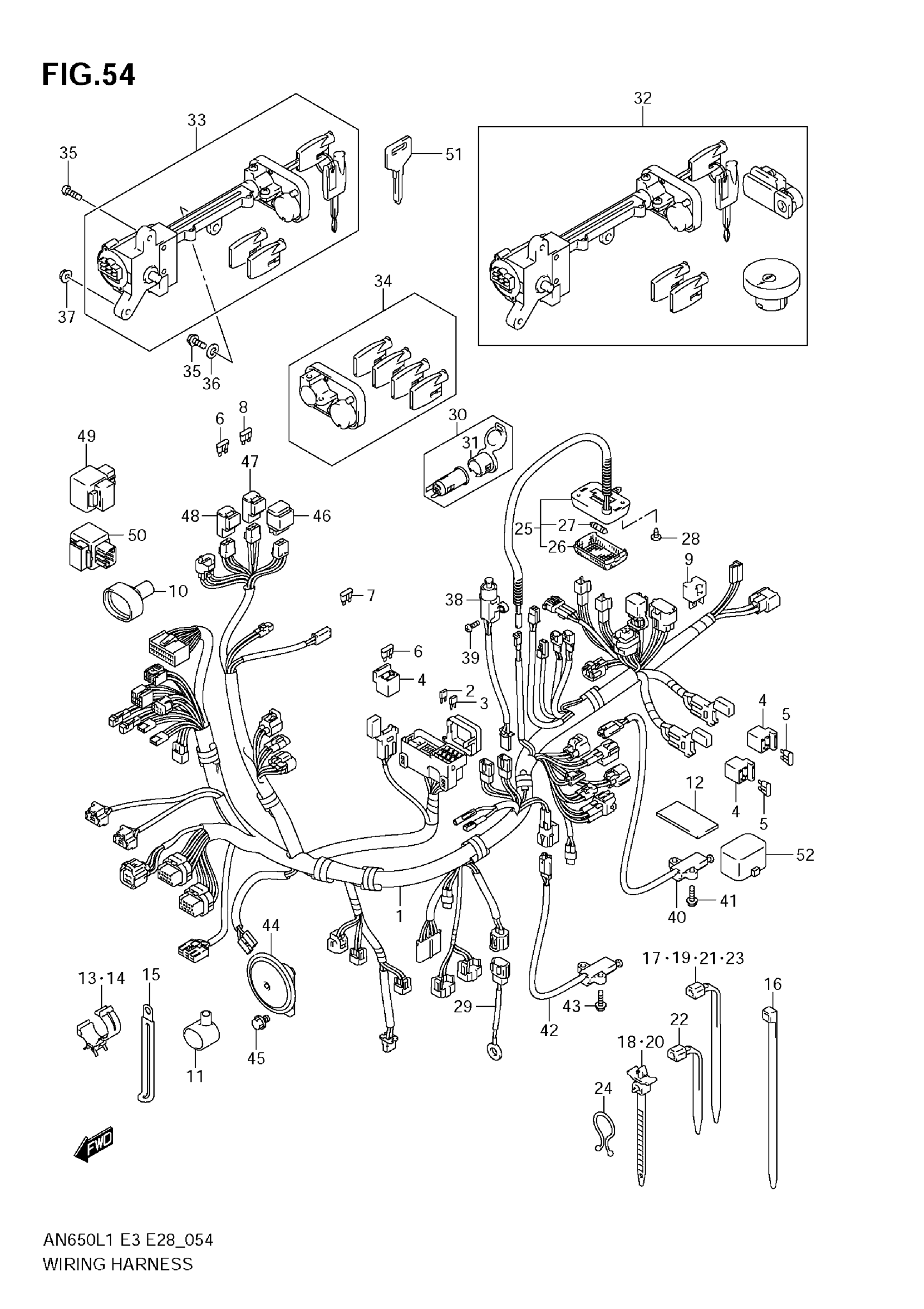

Suzuki AN650AL1 (2011) WIRING HARNESS (AN650A L1 E33) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-13JA0

Unavailable

2

FUSE (10A)

09481-10501

$2.07

3

FUSE (15A)

09481-15501

$2.07

4

HOLDER

36742-39D00

$21.62

5

FUSE (40A)

09481-40101

$10.15

6

FUSE (15A)

09481-15101

$2.77

7

FUSE (3A)

09481-03101

Unavailable

8

FUSE (20A)

09481-20101

$2.13

9

DIODE

32800-16A00

$21.12

10

COVER

36618-21E00

Unavailable

11

BOOT

36717-19H00

Unavailable

12

PROTECTOR

36920-08D00

Unavailable

12

PROTECTOR

36920-08D10

Unavailable

13

CLAMP

09403-25401

Unavailable

14

CLAMP

09403-30403

Unavailable

15

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

16

CLAMP (L:100)

09407-10404

$2.71

17

CLAMP (L:95)

09407-11401

$2.87

18

CLAMP (L:90)

09407-11402

$1.81

19

CLAMP (L:125)

09407-14403

$2.24

20

CLAMP This part replaces 09407-14408.

09407-17402

$4.28

21

CLAMP (L:165)

09407-18402

$2.21

22

CLAMP (L:190)

09407-19401

$3.32

23

CLAMP (L:235)

09407-25401

$4.21

24

CLAMP (ID:11.5)

09408-00012

$2.68

25

LAMP ASSY, TRUNK BOX

36210-10G00

Unavailable

26

LENS

36212-79001

Unavailable

27

BULB (12V,5W)

09471-12073

$3.30

28

SCREW

03541-0412B

$1.55

29

WIRE,OIL PRESSU This part replaces 36851-19H00.

36851-19H01

$12.50

30

SOCKET ASSY (GRAY)

39410-76F00-P4Z

Unavailable

31

COVER (GRAY)

39441-76F00-P4Z

$16.67

32

LOCK SET This part replaces 37103-10843.

37103-10846

$514.73

33

LOCK ASSY,STEER This part replaces 37120-10863.

37120-10865

$362.50

34

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

35

SCREW (6X20)

09139-06048

$1.29

36

WASHER (6.5X18X1.6)

09160-06109

$1.15

37

NUT

08316-1006B

$2.50

38

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

39

SCREW

02112-0516B

$1.95

40

SWITCH ASSY,SID This part replaces 37840-10G00.

37840-10G02

$90.63

41

BOLT

01550-0620B

$2.38

42

SWITCH ASSY,SID This part replaces 37840-20E00.

37840-20E02

$93.18

43

BOLT

01550-0620B

$2.38

44

HORN ASSY

38500-10G00

Unavailable

45

BOLT

01550-0812B

$2.73

46

RELAY ASSY, FAN MOTOR

38740-38B00

$71.43

47

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

48

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

49

RELAY ASSY, DRIVE

38750-03G00

$161.95

50

RELAY ASSY, SCREEN

38750-10G00

Unavailable

51

CAP,TS This part replaces 36654-06J00.

36654-06J01

$15.63

52

KEY, BLANK

37146-10G00

$43.05
