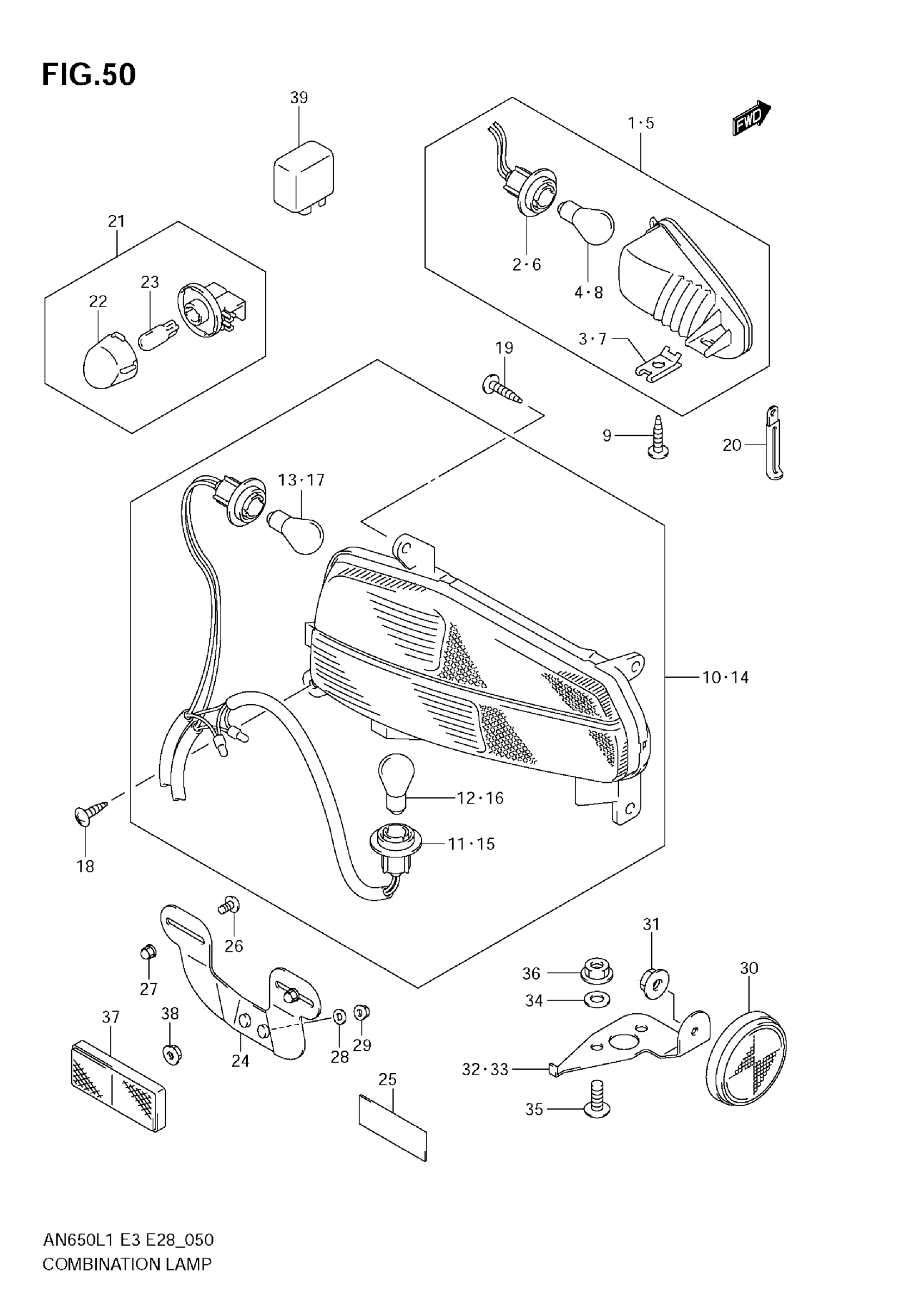

Suzuki AN650AL1 (2011) COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL RH

35601-10G50

$85.32

2

.SOCKET,R

35618-10G50

$34.12

3

NUT

09148-05020

$2.04

4

BULB (12V21W)

09471-12186

$16.18

5

LAMP ASSY, FR TURN SIGNAL LH

35602-10G50

$58.27

6

.SOCKET,L

35638-10G50

$32.85

7

NUT

09148-05020

$2.04

8

BULB (12V21W)

09471-12186

$16.18

9

SCREW

03541-0525B

$2.34

10

LAMP ASSY, REAR COMB RH

35603-10G40

$286.88

11

CORD ASSY RH

35658-10G40

Unavailable

12

BULB (12V,21/5W) | FOR TAIL/STOP This part replaces 09471-12083.

09471-12128

$6.08

13

BULB (12V,21W) | FOR TURN

09471-12186

$16.18

14

LAMP ASSY, REAR COMB LH

35604-10G40

$276.35

15

CORD ASSY LH

35678-10G40

Unavailable

16

BULB (12V,21/5W) | FOR TAIL/STOP This part replaces 09471-12083.

09471-12128

$6.08

17

BULB (12V,21W) | FOR TURN

09471-12186

$16.18

18

SCREW

02142-0612B

$1.89

19

SCREW

03541-0516B

$1.77

20

CLAMP (L:45)

09404-06429

$1.82

21

LAMP ASSY, LICENSE

35910-14F01

$34.10

22

LENS

35912-14F11

$9.35

23

.BULB (12V5W)

09471-12216

$4.84

24

BRACKET, LICENSE PLATE

35927-10G00

Unavailable

25

CUSHION (30X80X1)

33652-29F00

$2.80

26

SCREW

02142-0612B

$1.89

27

NUT

08313-2006B

$3.10

28

WASHER (6.5X24X1)

09160-06114

$2.01

29

NUT

08316-1006B

$2.50

30

REFLECTOR ASSY, RR SIDE

35970-14A20

$14.23

31

NUT

08316-1005B

$2.50

32

BRACKET, REAR SIDE, RH

35975-10G00

Unavailable

33

BRACKET, REAR SIDE, LH

35976-10G00

Unavailable

34

WASHER (6.5X18X1.6)

09160-06109

$1.15

35

SCREW

02142-0616B

$1.80

36

NUT

08316-1006B

$2.50

37

REFLECTOR ASSY, REAR SIDE

35970-07F01

$19.11

38

NUT

08316-1005B

$2.50

39

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
