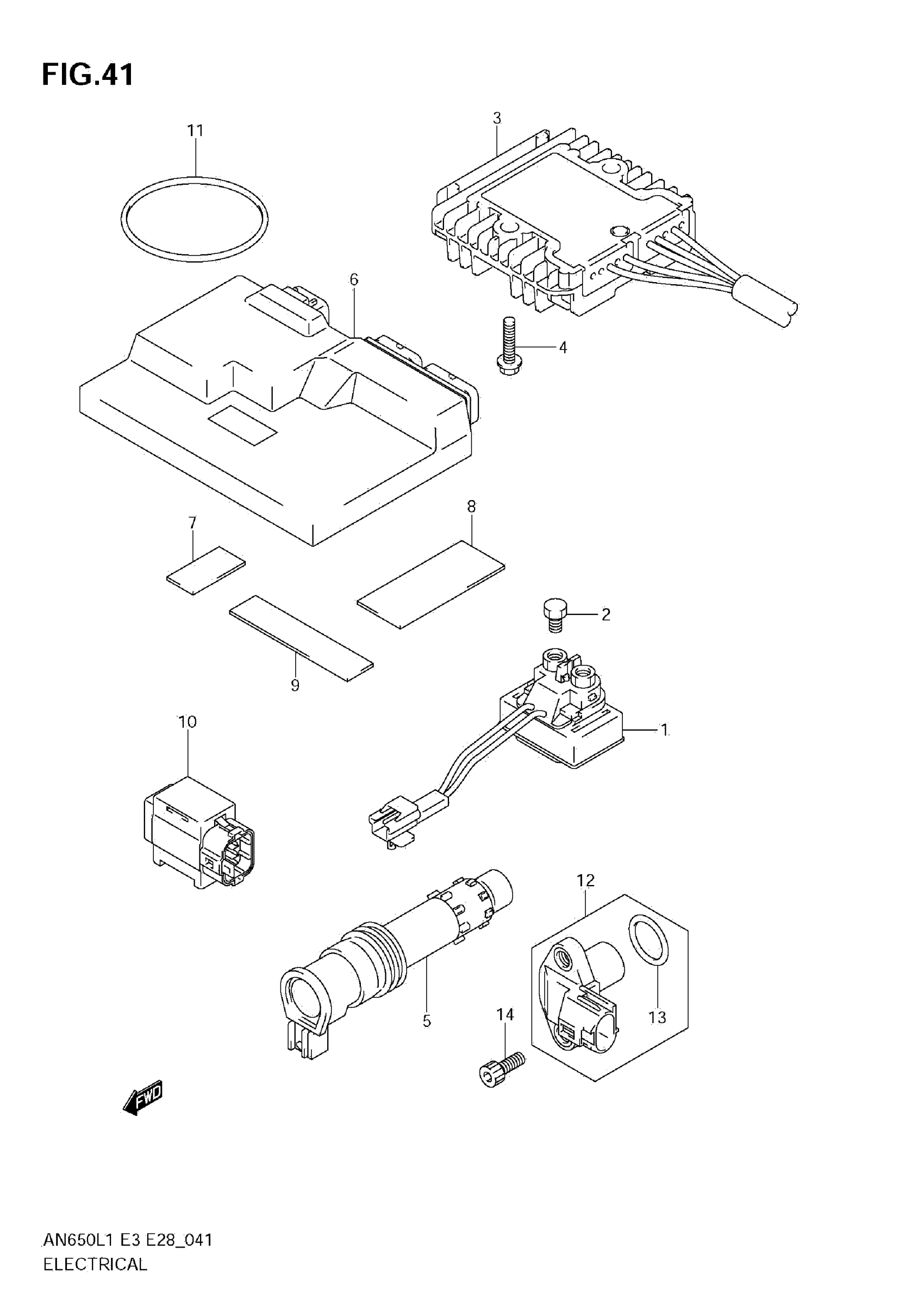

Suzuki AN650AL1 (2011) ELECTRICAL (AN650 L1 E3) Diagram

#

Description

Price

1

RELAY ASSY,STAR This part replaces 31800-10G00.

31800-10G02

$87.07

2

BOLT, STARTING MOTOR (6X8)

09128-06013

$1.24

3

RECTIFIER ASSY

32800-10G30

$363.52

4

BOLT

02162-0620C

$1.73

5

COIL ASSY, IGNITION

33410-47H00

$142.15

6

CONTROL UNIT, FI

32920-10GH1

$2,233.35

7

CUSHION, CONTROL (170X95X3.0) | CUT AS REQUIRED

33651-37000

$4.09

8

CUSHION, CONTROL (80X80X2) | CUT AS REQUIRED

33652-07D00

$5.17

9

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.17

10

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

11

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.50

12

SENSOR ASSY, CAM POSITION

32160-02F10

$167.32

13

PACKING

32161-02F00

$10.97

14

BOLT

07130-0616B

$2.38
