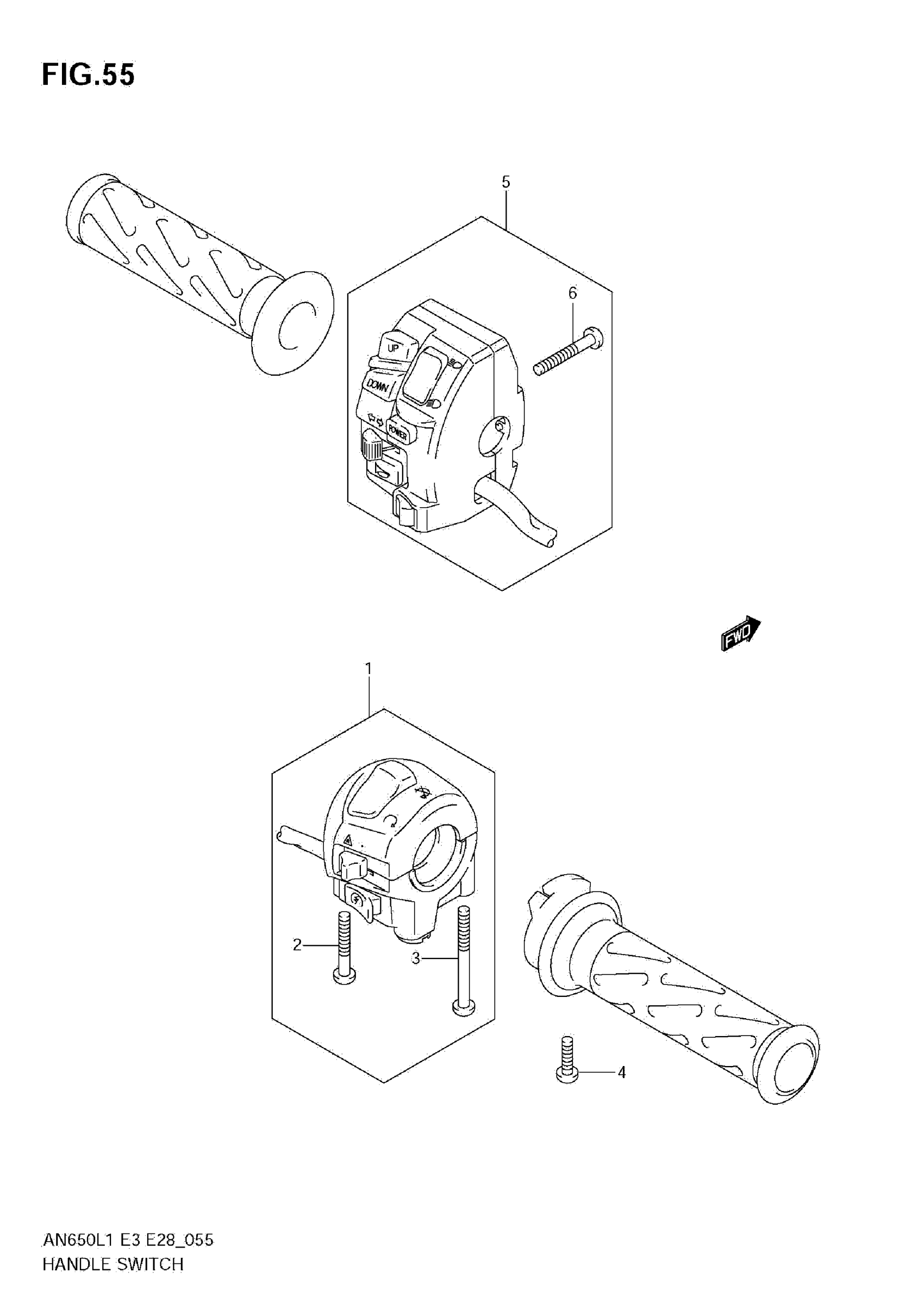

Suzuki AN650AL1 (2011) HANDLE SWITCH (AN650 L1 E3) Diagram

#

Description

Price

1

SWITCH ASSY,HAN This part replaces 37200-10G40.

37200-10G41

$186.05

2

SCREW

02112-0530B

$1.45

3

SCREW

02112-0550B

$2.40

4

SCREW, THROTTLE CABLE

02112-0510A

$1.43

5

SWITCH ASSY, HANDLE, LH

37400-10G10

$273.80

6

SCREW

02112-0535B

$1.95
