2011 Suzuki AN650AL1 Meter Panel Diagram

← All diagrams

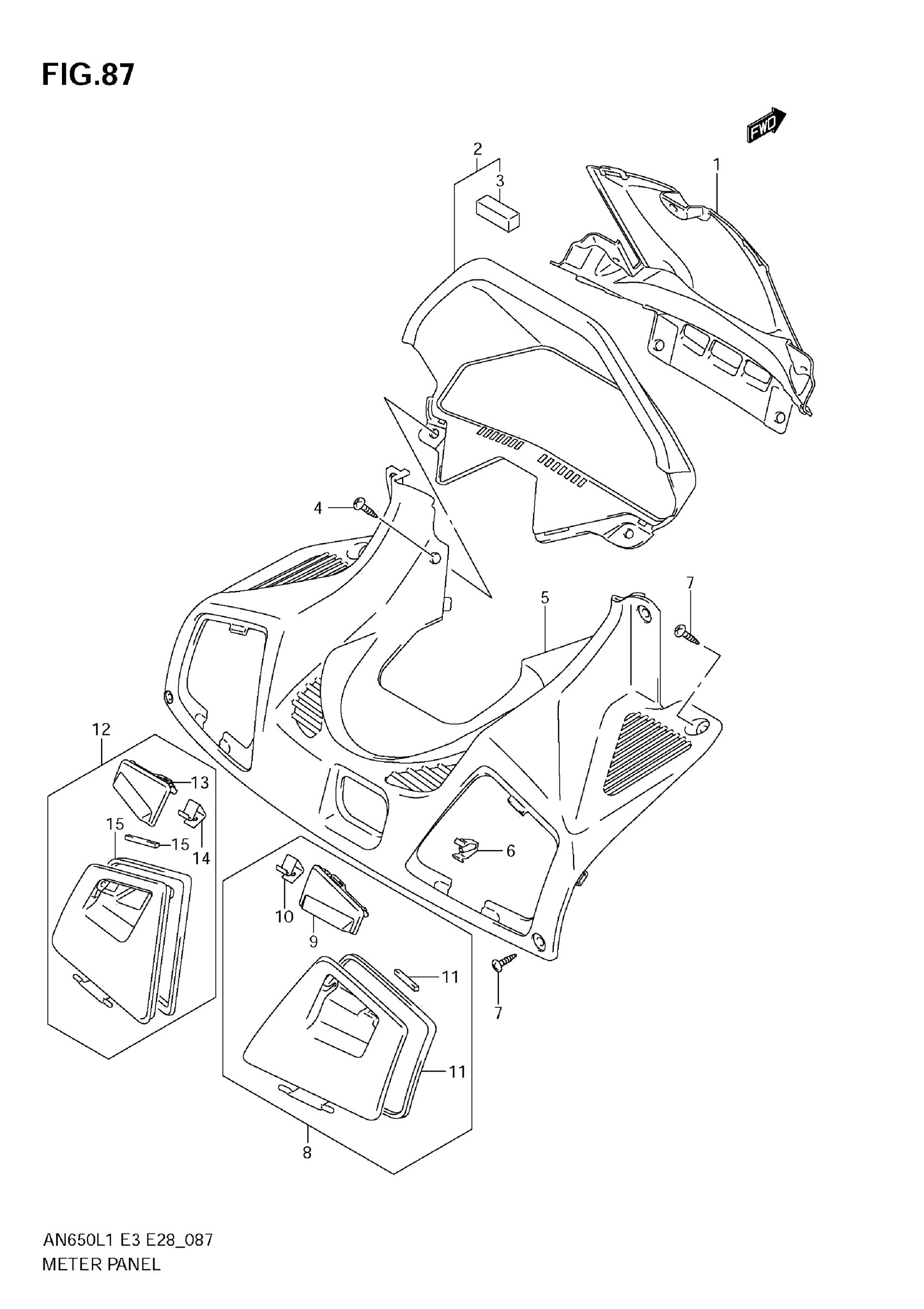

Find the part on the Meter Panel diagram for your 2011 Suzuki AN650AL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki AN650AL1 Meter Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, METER FRONT (GRAY)

94421-10G01-Y0J

1
Out of stock

2

PANEL, METER REAR (GRAY)

94420-10G00-Y0J

1
Out of stock

3

CUSHION

94423-10G00

1
Out of stock

4

SCREW (6X16)

09122-66006

2
Out of stock

5

PANEL, FRONT LOWER (GRAY)

94671-10G00-Y0J

1
Out of stock

6

CLIP

09409-08326

2
Out of stock

7

SCREW (5X16)

09132-05053

6
Out of stock

8

LID, FRONT PANEL RH (GRAY)

92140-10G10-Y0J

1
Out of stock

9

LOCK, PANEL RH (GRAY)

92143-10G10-Y0J

1
Out of stock

10

SPRING, LID

92144-10G10

1
Out of stock

11

CUSHION

92145-10G00

2
Out of stock

12

LID, FRONT PANEL LH (GRAY)

92150-10G10-Y0J

1
Out of stock

13

LOCK, PANEL LH (GRAY)

92153-10G10-Y0J

1
Out of stock

14

SPRING, LID

92144-10G10

1
Out of stock

15

CUSHION

92145-10G00

2
Out of stock
