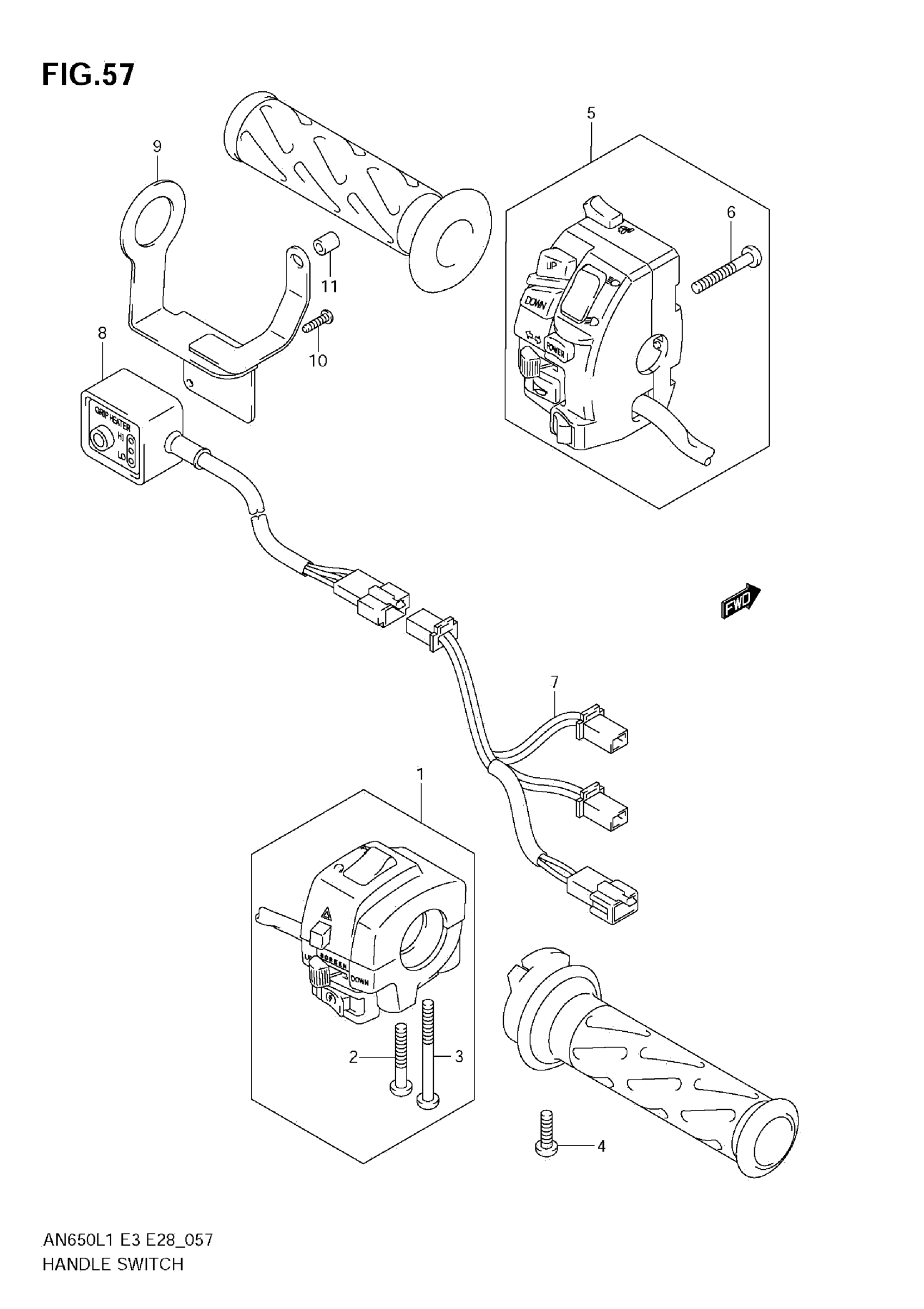

Suzuki AN650AL1 (2011) HANDLE SWITCH (AN650A L1 E28) Diagram

#

Description
Price

1

SWITCH ASSY, HANDLE, RH

37200-10G60

$224.25

2

SCREW

02112-0530B

$1.45

3

SCREW

02112-0550B

$2.40

4

SCREW, THROTTLE CABLE

02112-0510A

$1.43

5

SWITCH ASSY,HAN This part replaces 37400-10G20.

37400-10G21

$331.67

6

SCREW

02112-0535B

$1.95

7

WIRE, GRIP HEATER LEAD

36855-05H00

Unavailable

8

SWITCH ASSY, GRIP HEATER

37270-05H10

Unavailable

9

BRACKET, GRIP HEATER

37271-10G20

Unavailable

10

SCREW (3X14)

37272-36G00

Unavailable

11

SPACER (5.5X9.5X10)

09180-05301

$2.95
