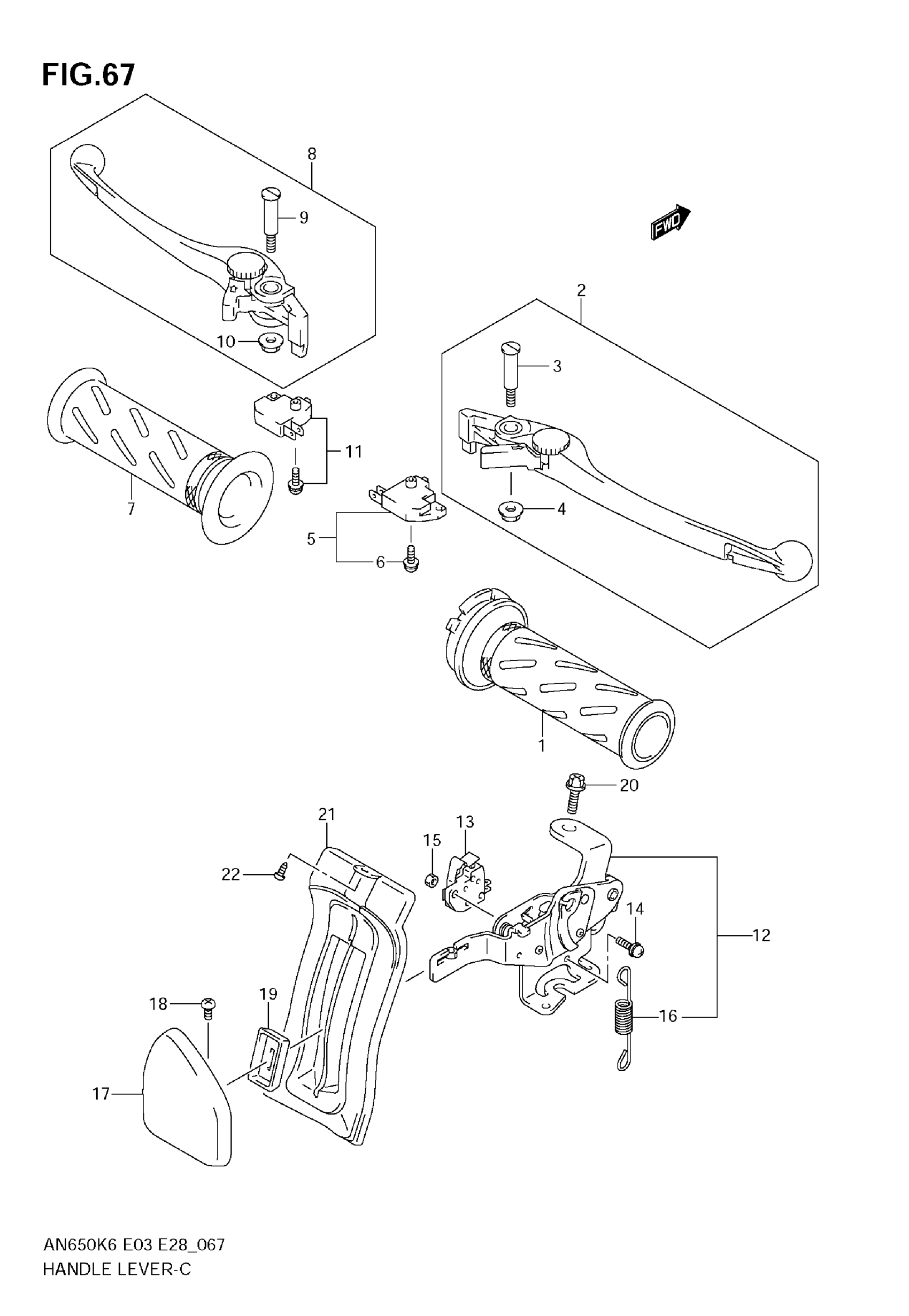

Suzuki AN650 (2009) HANDLE LEVER (MODEL K6/K7/K8) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

$26.60

2

LEVER ASSY, FRONT BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-10G10.

57300-10G32

$39.24

3

BOLT, PIVOT

57431-17C00

$6.51

4

NUT This part replaces 08316-10063.

08316-1006B

$2.50

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.32

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 10

57500-10G10

$68.75

9

BOLT, PIVOT

57431-17C00

$6.51

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14F11.

57560-14J02

$36.39

12

LEVER ASSY, BRAKE LOCK | Includes Item(s) 13 - 16

57800-10G01

Unavailable

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$35.21

14

SCREW

57852-10G00

Unavailable

15

NUT

57853-10G00

Unavailable

16

SPRING, RETURN

57804-10G00

Unavailable

17

KNOB, BRAKE LOCK

57820-10G00

$47.27

18

SCREW

02112-0408B

$2.05

19

COVER, KNOB

57831-10G00

Unavailable

20

BOLT, BRAKE LOCK LEVER

01550-0612B

$2.38

21

PLATE, LEVER SEAL

57950-10G00

Unavailable

22

SCREW

03511-0512A

$1.68
