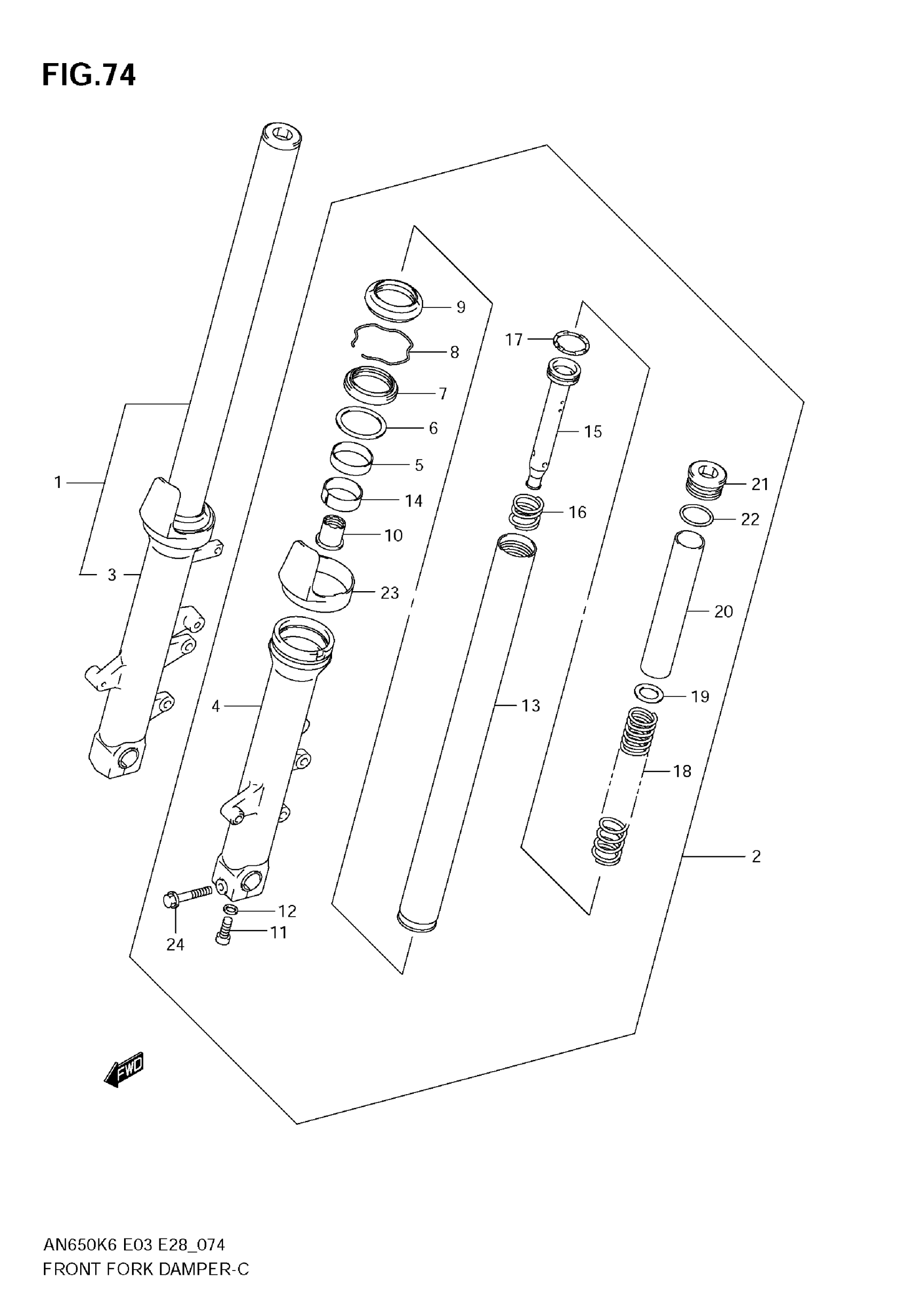

Suzuki AN650 (2009) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-10G50

Unavailable

2

DAMPER ASSY,FR | Includes Item(s) 3 - 24 This part replaces 51104-10G50.

51104-10G51

$799.13

3

TUBE, OUTER RH

51130-10G10

Unavailable

4

TUBE, OUTER LH

51140-10G10

Unavailable

5

METAL, SLIDE

51167-26E10

$23.09

6

WASHER

51158-05A00

$5.34

7

SEAL, OIL

51153-10G50

$18.94

8

RING, SNAP

51156-49440

$4.75

9

SEAL, DUST

51173-14F00

$21.12

10

PIECE, OIL LOCK

51195-33D10

$29.57

11

BOLT

51147-16510

$4.09

12

GASKET

51148-41310

$2.14

13

TUBE, INNER

51110-10G00

$432.87

14

PISTON

51121-33D10

$17.78

15

CYLINDER

51146-10G10

Unavailable

16

SPRING, REBOUND

51177-10G10

Unavailable

17

RING, PISTON

51196-31F00

$6.63

18

SPRING, FRONT

51171-10G10

$82.62

19

WASHER

51356-10D03

$8.47

20

SPACER

51176-10G10

Unavailable

21

CAP

51351-10G10

Unavailable

22

O RING

09280-32001

$2.07

23

PROTECTOR

51201-31F00

Unavailable

24

BOLT, AXLE STOPPER This part replaces 51166-10G00.

51166-10G10

$6.08
