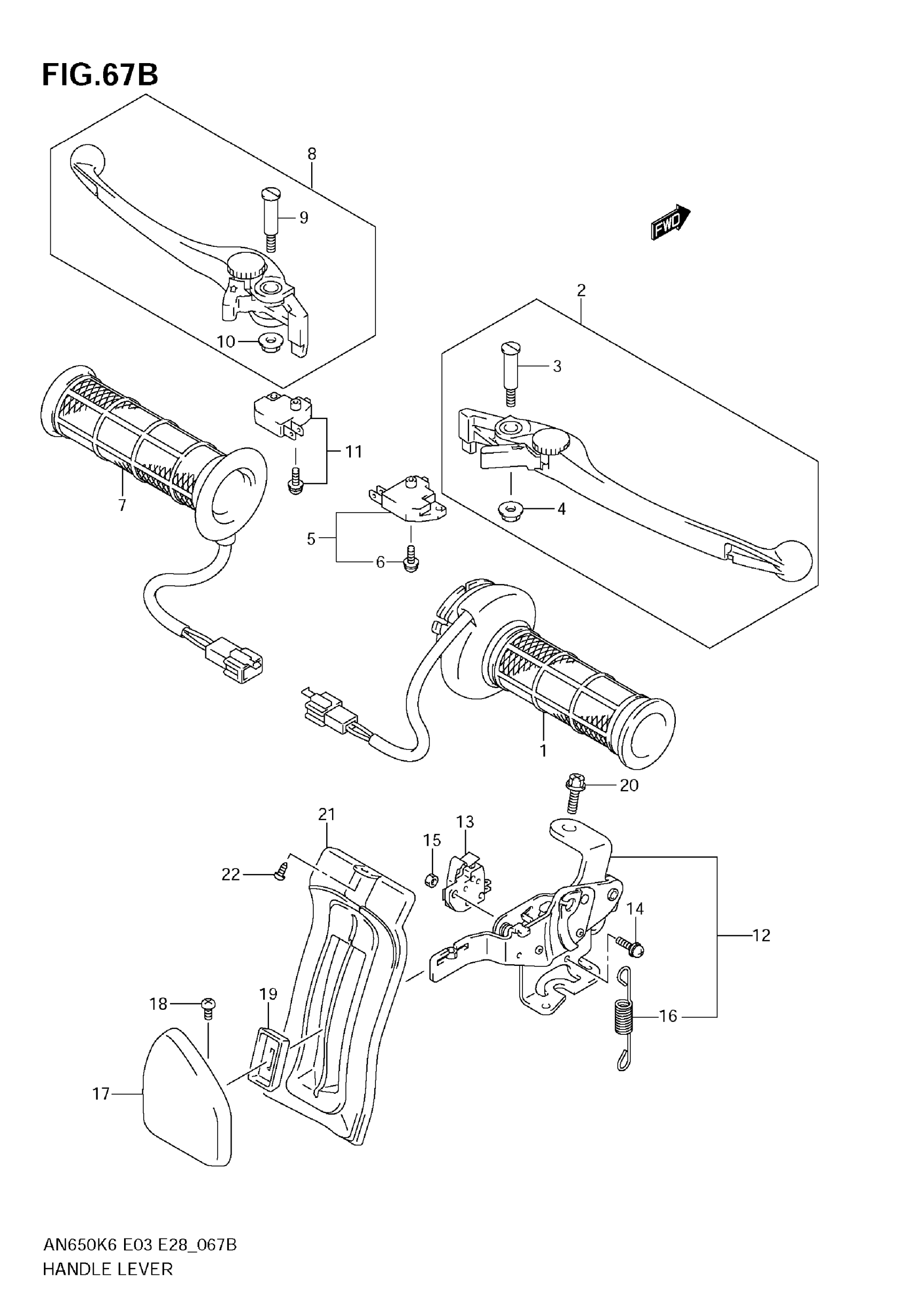

Suzuki AN650 (2009) HANDLE LEVER (AN650AK9 E28) Diagram

#

Description
Price

1

HEATER ASSY, THROTTLE GRIP

57110-10G10

Unavailable

2

LEVER ASSY, FRONT BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-10G30.

57300-10G32

$39.24

3

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

$6.72

4

NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

HEATER ASSY, GRIP LH

57210-05H10

$230.75

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 10 This part replaces 57500-10G30.

57500-10G32

$85.35

9

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

$6.72

10

NUT

08319-2106A

$1.89

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14F11.

57560-14J02

$36.39

12

LEVER ASSY, BRAKE LOCK | Includes Item(s) 13 - 16

57800-10G01

Unavailable

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$35.21

14

SCREW

57852-10G00

Unavailable

15

NUT

57853-10G00

Unavailable

16

SPRING, RETURN

57804-10G00

Unavailable

17

KNOB, BRAKE LOCK

57820-10G00

$47.27

18

SCREW

02112-0408B

$2.05

19

COVER, KNOB

57831-10G00

Unavailable

20

BOLT, BRAKE LOCK LEVER

01550-0612B

$2.38

21

PLATE, LEVER SEAL

57950-10G00

Unavailable

22

SCREW

03511-0512A

$1.68
