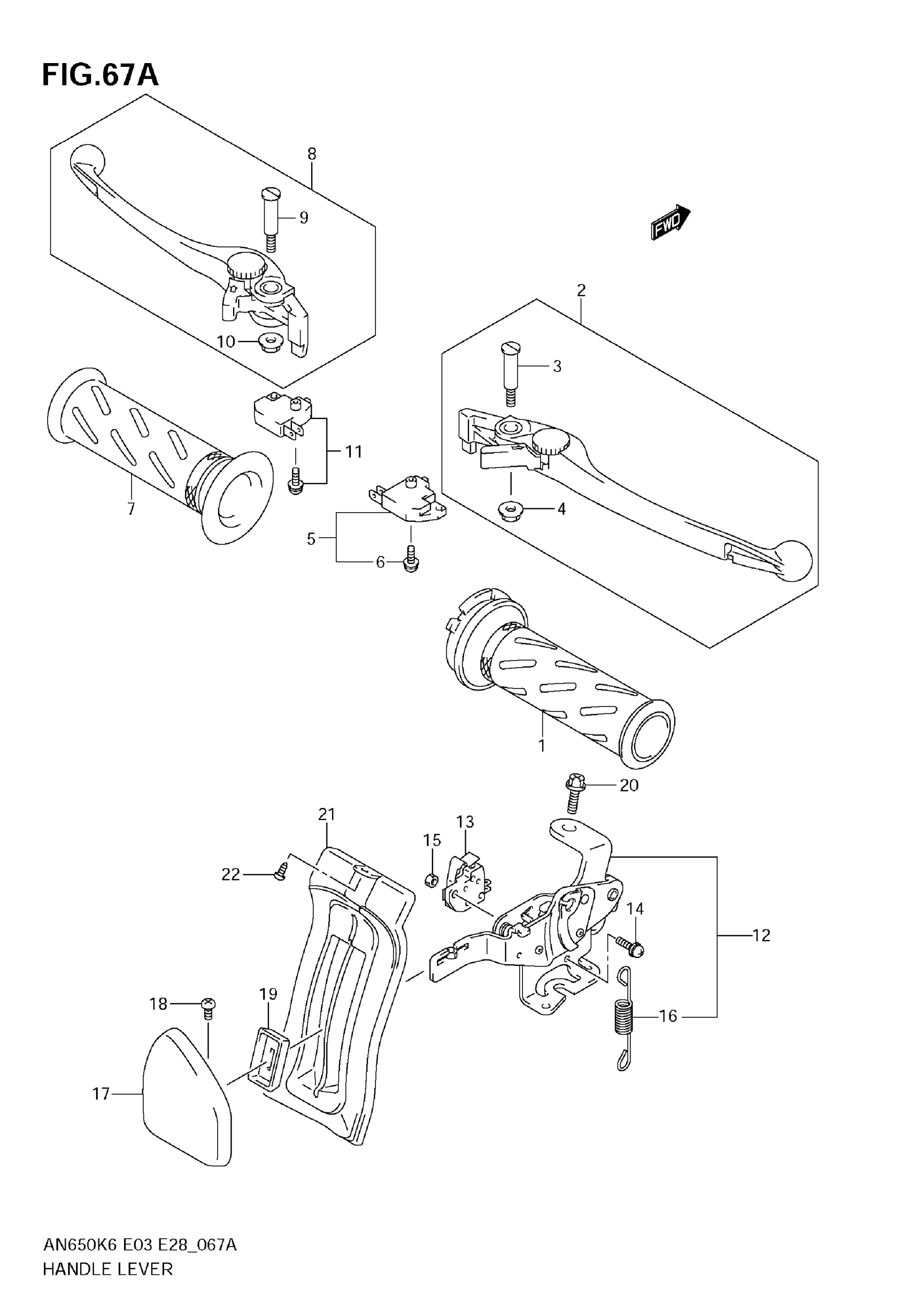

Find the part on the Handle Lever diagram for your 2009 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN650 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$28.98

In stock

3

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

1
Out of stock

4

NUT

08319-2106A

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

1

$14.51

In stock

9

.BOLT, PIVOT This part replaces 57431-17H00.

57431-17H02

1
Out of stock

10

NUT

08319-2106A

1
Out of stock

11

1

$39.63

In stock

12

LEVER ASSY, BRAKE LOCK | Includes Item(s) 13 - 16

57800-10G01

1
Out of stock

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

14

SCREW

57852-10G00

1
Out of stock

15

NUT

57853-10G00

1
Out of stock

16

SPRING, RETURN

57804-10G00

1
Out of stock

17

KNOB, BRAKE LOCK

57820-10G00

1

$47.27

In stock

18

SCREW

02112-0408B

1

$2.05

In stock

19

COVER, KNOB

57831-10G00

1
Out of stock

20

BOLT, BRAKE LOCK LEVER

01550-0612B

2
Out of stock

21

PLATE, LEVER SEAL

57950-10G00

1
Out of stock

22

SCREW

03511-0512A

2

$1.75

In stock
