2005 Suzuki AN650 Rear Wheel Diagram

← All diagrams

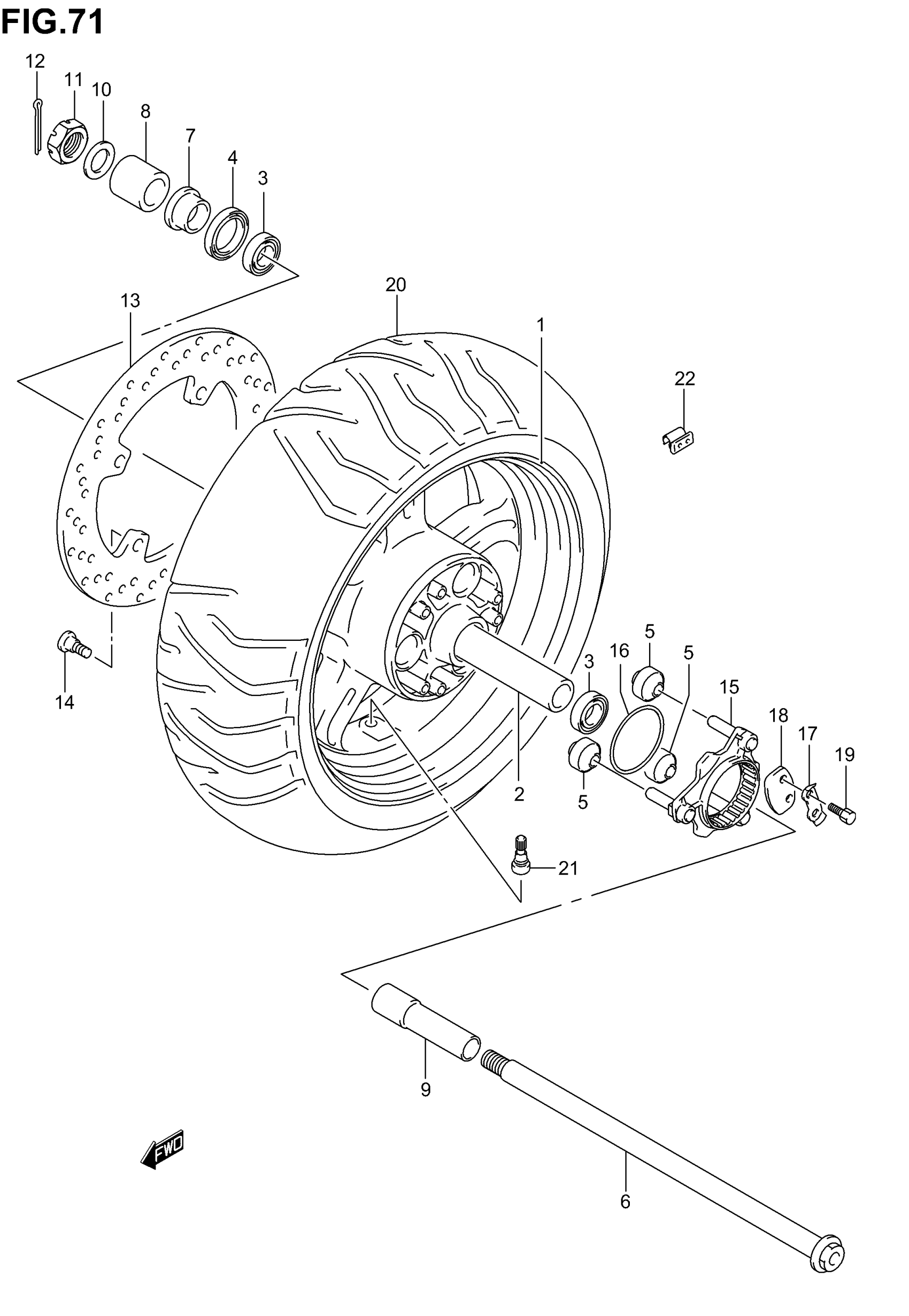

Find the part on the Rear Wheel diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR This part replaces 64111-10G00-YD8.

64111-10G01-YD8

1
Out of stock

2

SPACER, REAR HUB BEARING

64731-10G00

1
Out of stock

3

BEARING This part replaces 08123-62047.

08123-6204B

2
Out of stock

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

1
Out of stock

5

BUSH, REAR HUB

09319-12062

3
Out of stock

6

AXLE, REAR

64711-10G10

1
Out of stock

7

SPACER, RR AXLE RH

64741-10F00

1
Out of stock

8

SPACER, REAR AXLE RH NO.2

64751-10G00

1
Out of stock

9

SPACER, REAR AXLE LH

64772-10G00

1
Out of stock

10

WASHER This part replaces 08322-01183.

08322-0118B

1
Out of stock

11

NUT

08314-40187

1
Out of stock

12

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

13

DISC, REAR BRAKE

69211-10G00

1
Out of stock

14

BOLT, DISC

09106-08160

4
Out of stock

15

JOINT ASSY, REAR HUB DRIVEN This part replaces 64680-10G00.

64680-10G20

1
Out of stock

16

O RING, DRIVEN JOINT

09280-65003

1
Out of stock

17

WASHER, JOINT

09169-06030

3
Out of stock

18

WASHER, THRUST

64677-10G00

3
Out of stock

19

BOLT, DRIVEN JOINT WASHER

09119-06049

6
Out of stock

20

TIRE, REAR, 160/60R14 65H (BRIDGESTONE)

65110-10G00

1
Out of stock

21

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

22

BALANCER, WHEEL (10G)

43222-73H10

1
Out of stock

22

BALANCER, WHEEL (20G)

43224-73H10

1
Out of stock
