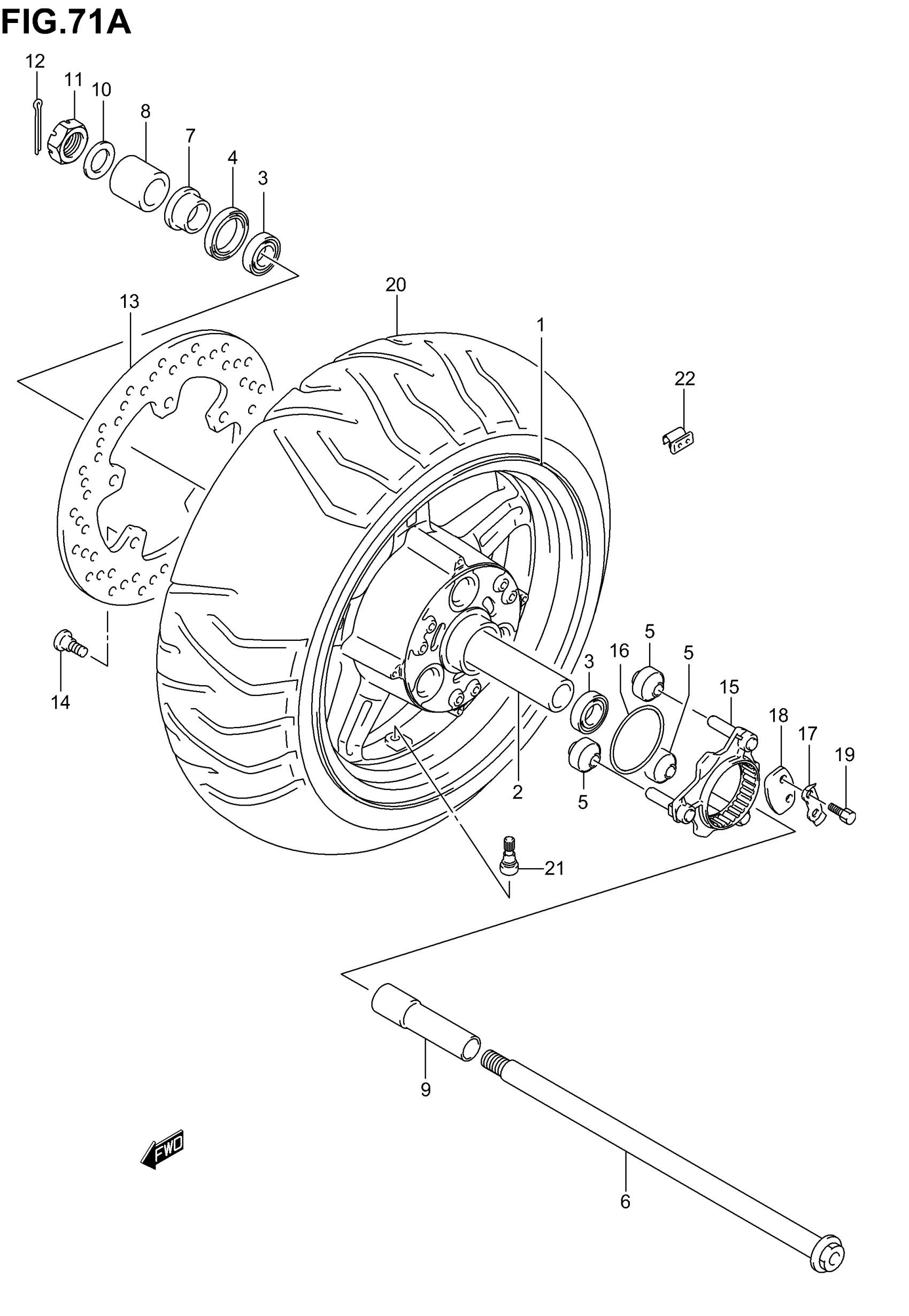

Suzuki AN650 (2005) REAR WHEEL (AN650K4/K5) Diagram

WHEEL, REAR (14M/CXMT4.50) (SILVER)

64111-10G10-YD8

$1,063.85

SPACER, REAR HUB BEARING

64731-10G00

$46.25

BEARING This part replaces 08123-62047.

08123-6204B

$16.42

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$11.60

BUSH, REAR HUB

09319-12062

$17.38

AXLE, REAR

64711-10G10

Unavailable

SPACER, RR AXLE RH

64741-10F00

$27.55

SPACER, REAR AXLE RH NO.1

64751-10G10

$17.78

SPACER, REAR AXLE LH

64772-10G00

Unavailable

WASHER This part replaces 08322-01183.

08322-0118B

$2.95

NUT

08314-40187

$5.27

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.41

DISC, REAR BRAKE

69211-10G10

$315.58

BOLT, DISC

09106-08160

$3.32

JOINT ASSY, REAR HUB DRIVEN

64680-10G20

Unavailable

O RING, DRIVEN JOINT

09280-65003

$4.03

WASHER, JOINT

09169-06030

$3.42

WASHER, THRUST

64677-10G00

Unavailable

BOLT, DRIVEN JOINT WASHER

09119-06049

$1.63

TIRE, REAR, 160/60R14 65H (BRIDGESTONE)

65110-10G00

$371.58

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.46

BALANCER, WHEEL (10G)

43222-73H10

$6.57

BALANCER, WHEEL (20G)

43224-73H10

$4.02

BALANCER, WHEEL (30G)

43226-73H10

$4.69
