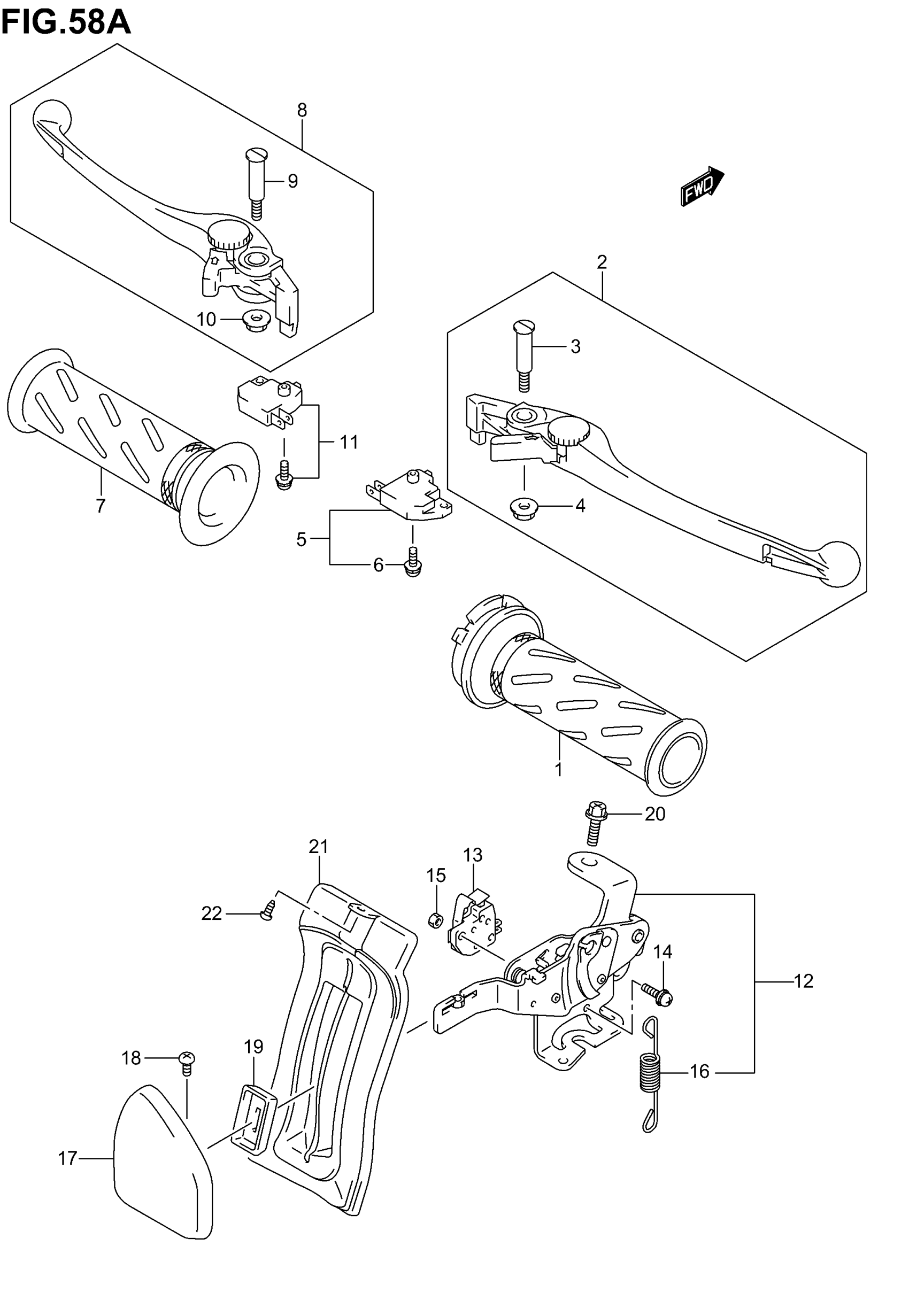

Find the part on the Handle Lever diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP,THROTTLE This part replaces 57110-46E01.

57110-46E02

1
Out of stock

2

LEVER ASSY, FRONT BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-10G10.

57300-10G32

1
Out of stock

3

BOLT, PIVOT

57431-17C00

1
Out of stock

4

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

6

SCREW

57465-17C00

1
Out of stock

7

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

1
Out of stock

8

LEVER ASSY, REAR BRAKE | Includes Item(s) 9 - 10

57500-10G10

1
Out of stock

9

BOLT, PIVOT

57431-17C00

1
Out of stock

10

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14F11.

57560-14J02

1
Out of stock

12

LEVER ASSY, BRAKE LOCK | Includes Item(s) 13 - 16

57800-10G01

1
Out of stock

13

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

1
Out of stock

14

SCREW

57852-10G00

1
Out of stock

15

NUT

57853-10G00

1
Out of stock

16

SPRING, RETURN

57804-10G00

1
Out of stock

17

KNOB, BRAKE LOCK

57820-10G00

1
Out of stock

18

1

$1.15

In stock

19

COVER, KNOB

57831-10G00

1
Out of stock

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

21

PLATE, LEVER SEAL

57950-10G00

1
Out of stock

22

SCREW This part replaces 03512-05123.

03511-0512A

2
Out of stock
