2005 Suzuki AN650 Rear Swinging ARM Diagram

← All diagrams

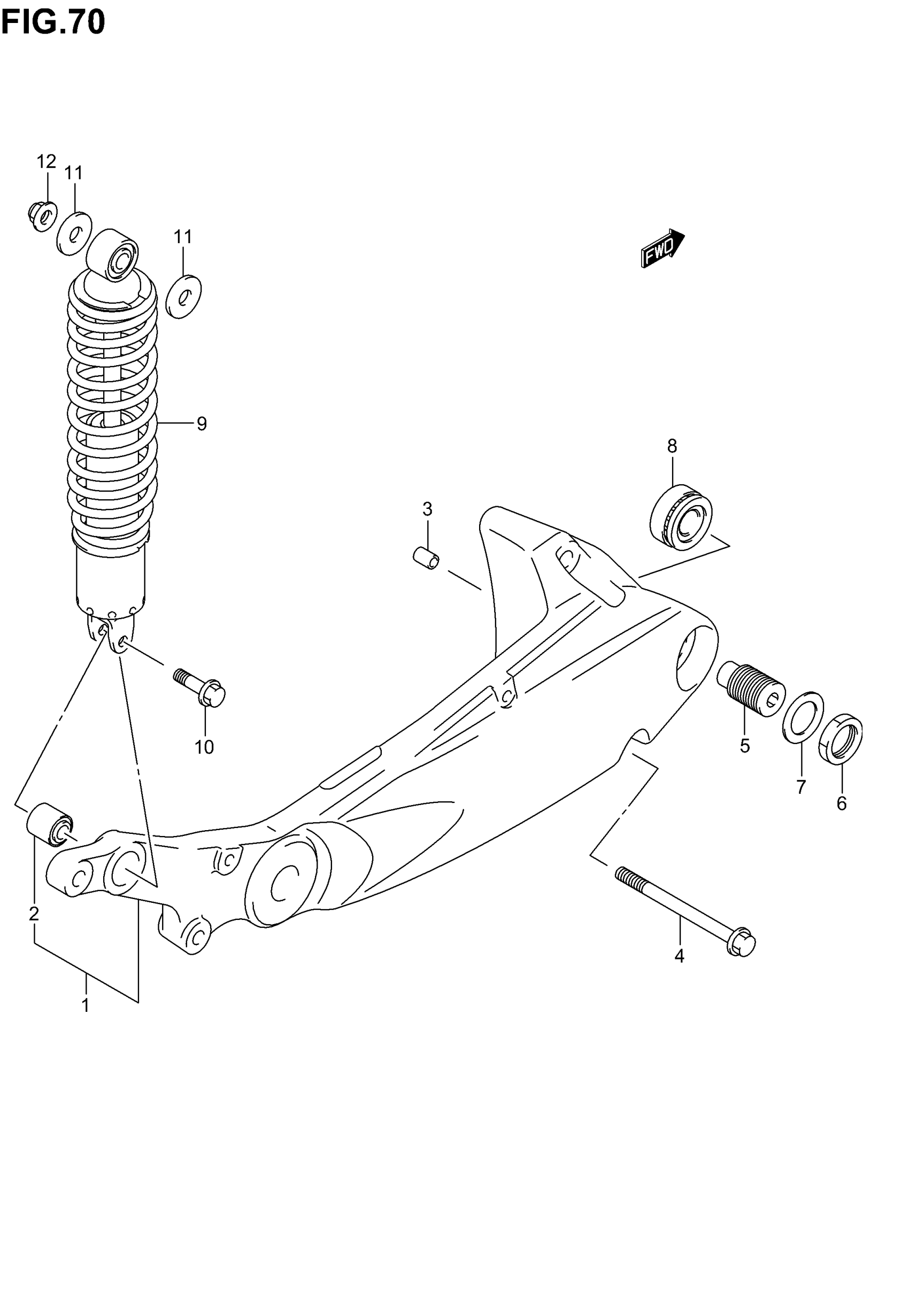

Find the part on the Rear Swinging ARM diagram for your 2005 Suzuki AN650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki AN650 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR | MODEL K3

61000-10G00-12Z

1
Out of stock

1

SWINGING ARM ASSY, REAR | MODEL K4/K5; Includes Item(s) 2

61000-10G10-12Z

1
Out of stock

2

BUSH

09319-10032

1
Out of stock

3

PIN,CRANKCASE

11319-33E50

2
Out of stock

4

BOLT, JOINT

09103-10299

3
Out of stock

5

BOLT, PIVOT RH

61213-24A00

1
Out of stock

6

NUT, PIVOT LOCK

09140-24007

1
Out of stock

7

WASHER

09160-24034

1
Out of stock

8

BEARING, PIVOT RH

09265-17012

1
Out of stock

9

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K3/K4

62100-10G00-019

2
Out of stock

9

ABSORBER ASSY,R | MODEL K5 This part replaces 62100-10G10-019.

62100-10G11-019

2
Out of stock

10

BOLT, LOWER

62313-40B00

2
Out of stock

11

WASHER, UPPER OUTER

09160-10501

4
Out of stock

12

NUT, UPPER

08319-31107

2
Out of stock
