2012 Suzuki AN400ZAL2 Rear Wheel Diagram

← All diagrams

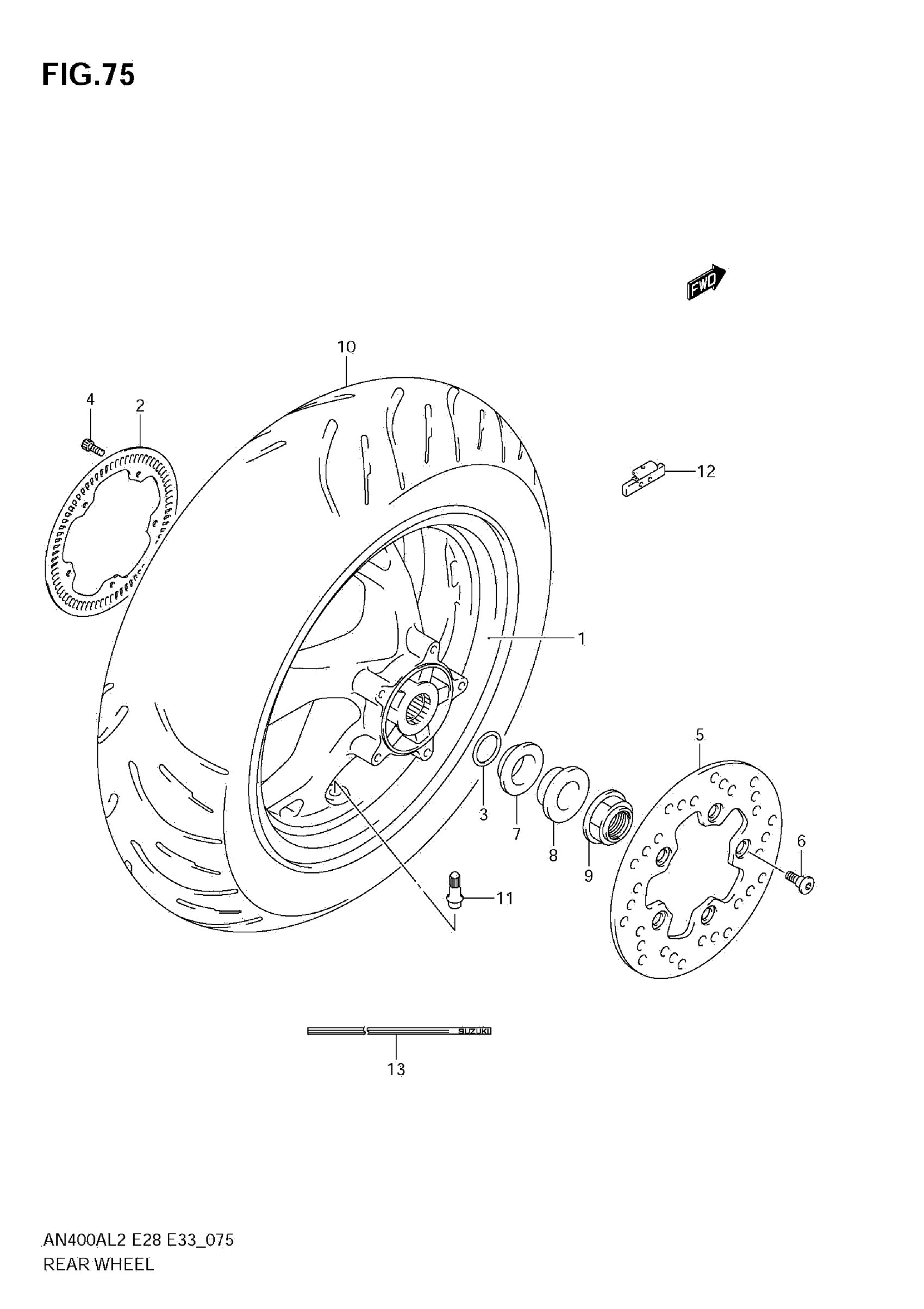

Find the part on the Rear Wheel diagram for your 2012 Suzuki AN400ZAL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki AN400ZAL2 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (13M/CXMT4.00) (BLACK)

64110-05H10-019

1
Out of stock

2

RING,SPEED SENSOR RR (72T)

64162-05H00

1
Out of stock

3

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

1
Out of stock

4

BOLT

07130-0512A

5
Out of stock

5

DISC,REAR BRAKE

69211-05H00

1
Out of stock

6

BOLT (8X21)

09106-08160

5
Out of stock

7

SPACER,REAR AXLE INNER

64741-05H00

1
Out of stock

8

SPACER,REAR AXLE OUTER

64751-05H00

1
Out of stock

9

NUT

09159-20014

1
Out of stock

10

TIRE, REAR | 150/70-13M/C 64S

65110-05H00

1
Out of stock

11

VALVE ASSY, WHEEL RIM

43130-24A00

1
Out of stock

12

BALANCER, WHEEL NO.1

43222-73H20

1
Out of stock

12

BALANCER, WHEEL NO.2

43224-73H20

1
Out of stock

12

BALANCER, WHEEL NO.3

43226-73H20

1
Out of stock

13

TAPE, REAR WHEEL (BLACK/SILVER)

68252-05H00-GYR

2
Out of stock
