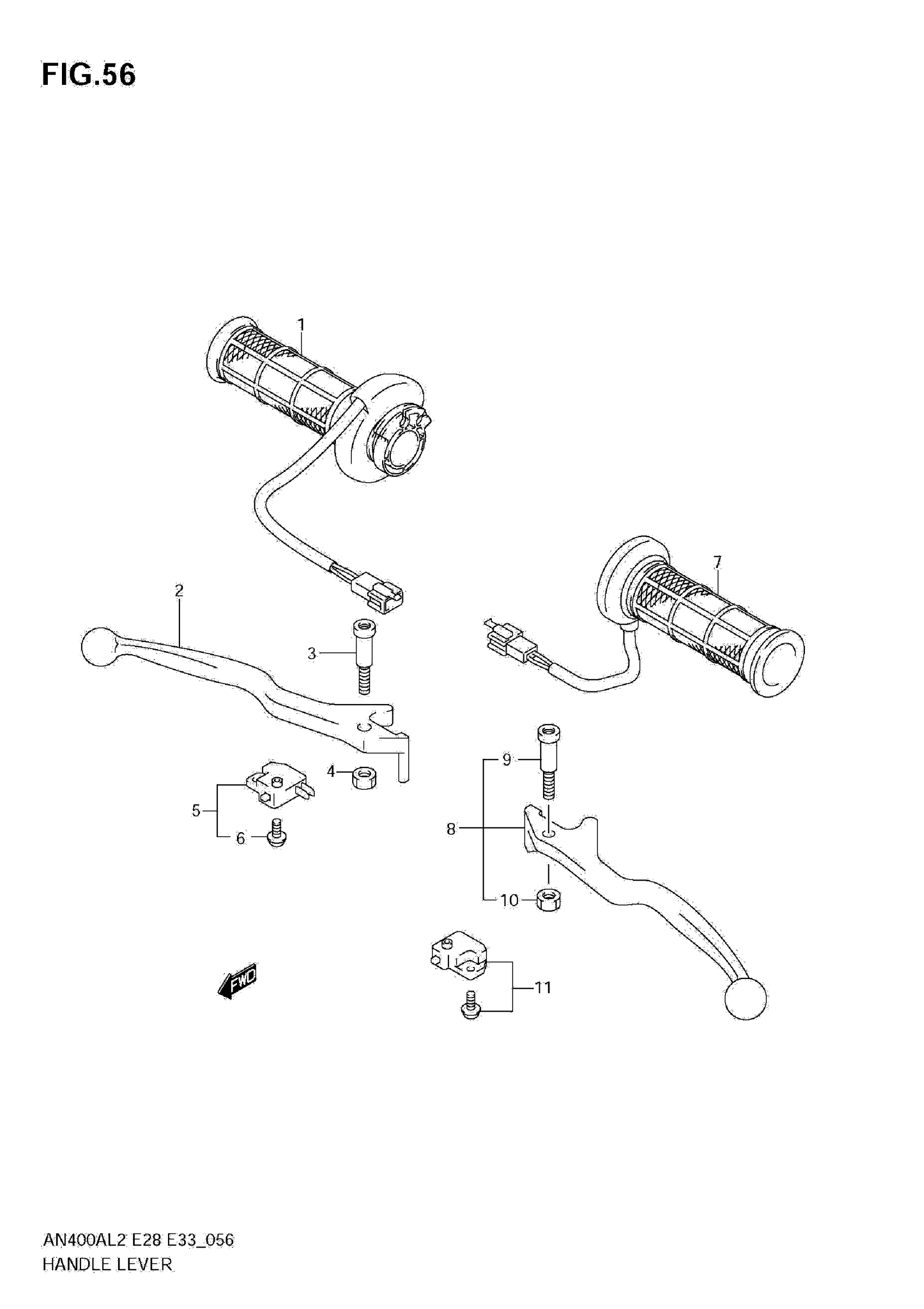

Suzuki AN400ZAL2 (2012) HANDLE LEVER (AN400ZA L2 E28) Diagram

#

Description

Price

1

HEATER, THROTTLE GRIP

57110-05H10

Unavailable

2

LEVER, FRONT BRAKE

57421-14F00

$17.37

3

BOLT, PIVOT

57431-05D00

$14.50

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J00.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

HEATER ASSY, GRIP LH

57210-05H10

$230.75

8

LEVER ASSY, REAR BRAKE

57500-14F10

Unavailable

9

BOLT, PIVOT

57431-05D00

$14.50

10

NUT,LEVER PIVOT

57433-09F00

$3.26

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J00.

57560-14J02

$36.39
