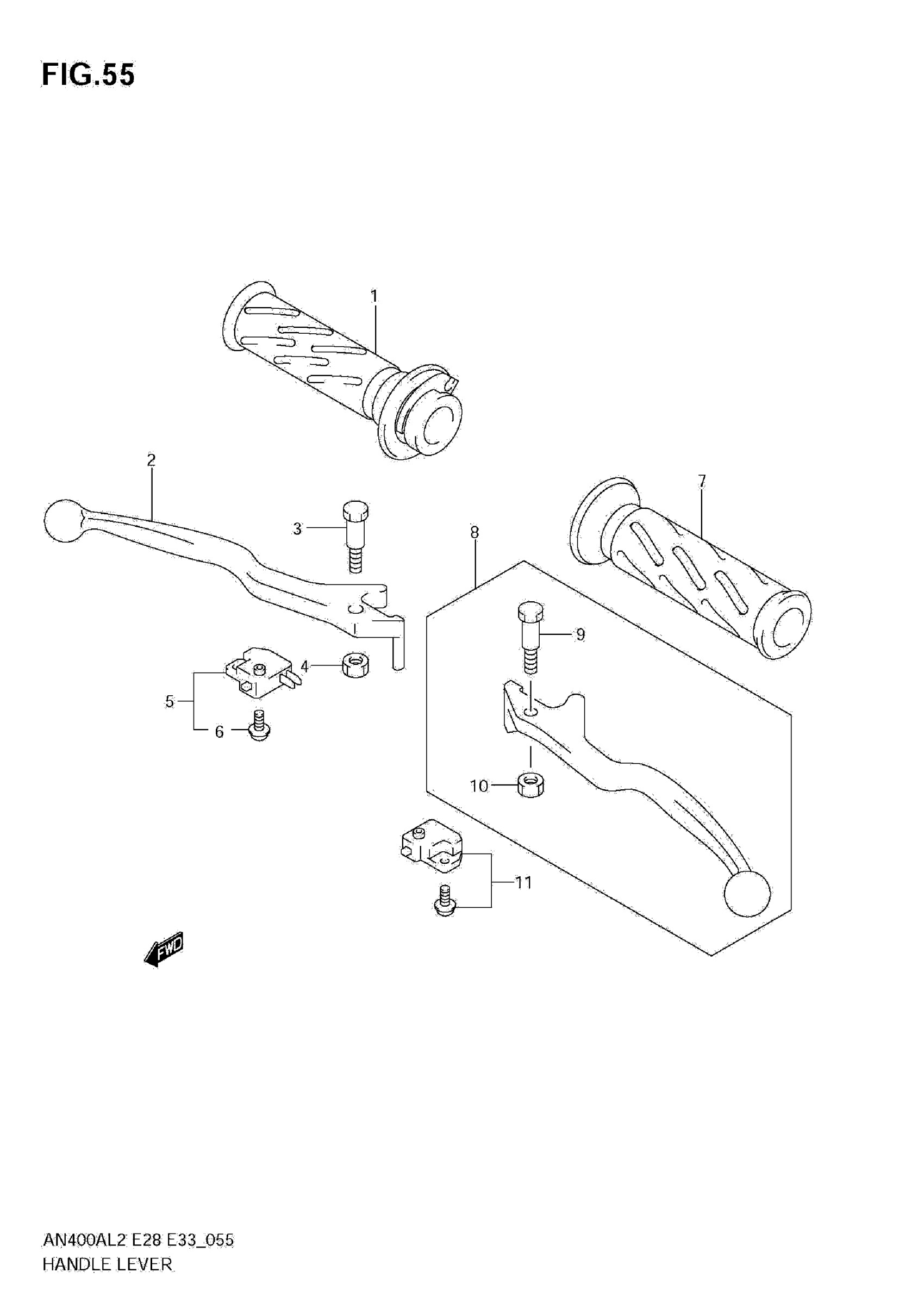

Suzuki AN400ZAL2 (2012) HANDLE LEVER (AN400A L2 E33) Diagram

#

Description

Price

1

GRIP, THROTTLE (BLACK) This part replaces 57110-29G01-291.

57110-29G02-291

$27.40

2

LEVER, FRONT BRAKE

57421-14F00

$17.37

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$5.75

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY,FR BRAKE This part replaces 57460-14J00.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH (BLACK) This part replaces 57211-22D01-291.

57211-22D02-291

$13.32

8

LEVER ASSY,RR BRAKE

57500-14F00

$18.88

9

BOLT,BRAKE LEVER PIVOT

57431-04F00

$5.75

10

NUT

08319-2106B

$2.31

11

SWITCH ASSY,RR BRAKE This part replaces 57560-14J00.

57560-14J02

$36.39
