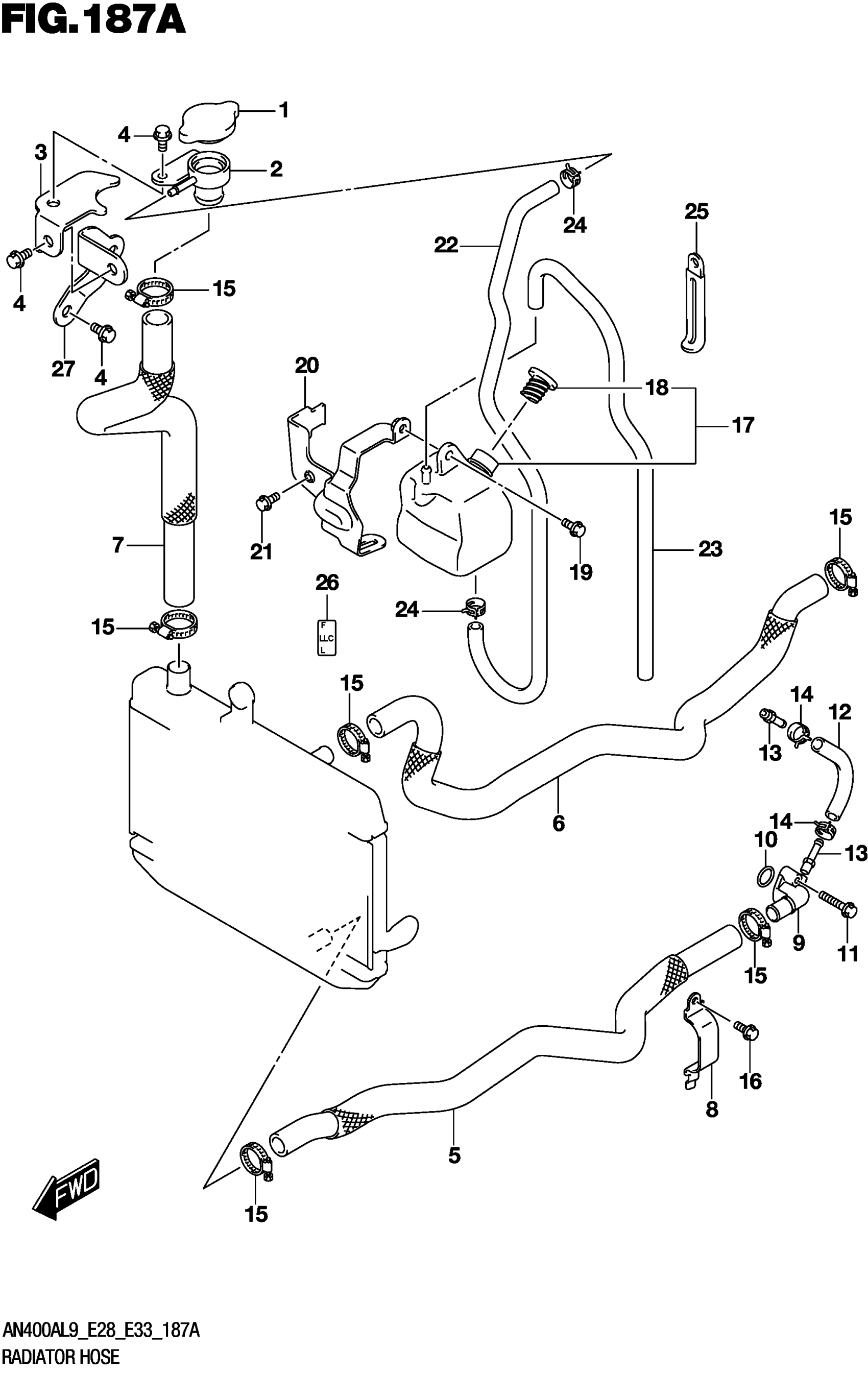

Suzuki AN400AL9 (2019) RADIATOR HOSE Diagram

#

Description
Price

1

CAP,RADIATOR (1.1)

17730-08J00

$38.90

2

CONDUCTION,RDTR

17791-24D00

$69.02

3

BRACKET, CONDUCTION NO.2

17790-19K00

$14.22

4

BOLT

01550-0610A

$1.97

5

HOSE, RADIATOR OUTLET

17852-19K00

$64.62

6

HOSE, RADIATOR INLET

17851-19K00

$77.58

7

HOSE, CONDUCTION

17855-19K00

$52.02

8

PLATE,WATER HOSE CLAMP

17859-05H00

Unavailable

9

CONNECTOR, WATER INLET

17861-05H01

$37.82

10

O-RING (D:2.4,ID:17.8)

09280-18004

$4.66

11

BOLT

01547-0630A

$2.31

12

HOSE (7.5X14.5X600) | L:600->130

09356-75141-600

Unavailable

13

UNION

09362-09011

$7.57

14

CLIP

09401-12414

$2.98

15

CLAMP

09402-28513

$6.31

16

BOLT

01550-0616A

$1.97

17

TANK ASSY,RESERVOIR

17910-05H00

Unavailable

18

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

19

BOLT (6X12)

09111-06085

$4.16

20

BRACKET,RSVR TANK

17920-05H00

Unavailable

21

BOLT

01547-0616A

$2.01

22

HOSE,RESERVOIR TANK INLET This part replaces 17981-10G00.

17981-10G01

$14.30

23

HOSE, TANK OVERFLOW

17982-19K00

Unavailable

24

CLIP (ID:8.6)

09401-08411

$1.77

25

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

26

LABEL,RESERVOIR TANK LEVEL

17919-05H00

$3.70

27

BRACKET, CONDUCTION NO.1

17780-19K00

$14.22
